13.4.2 Horizontal Airflow
Automatic airflow direction can be set using remote control; the vane swings left and right within the angles as
stated below. It does not swing during fan motor stop.
Operation Mode Vane Angle (°)
iCOMFORT, Cooling and soft dry 65 ~ 115

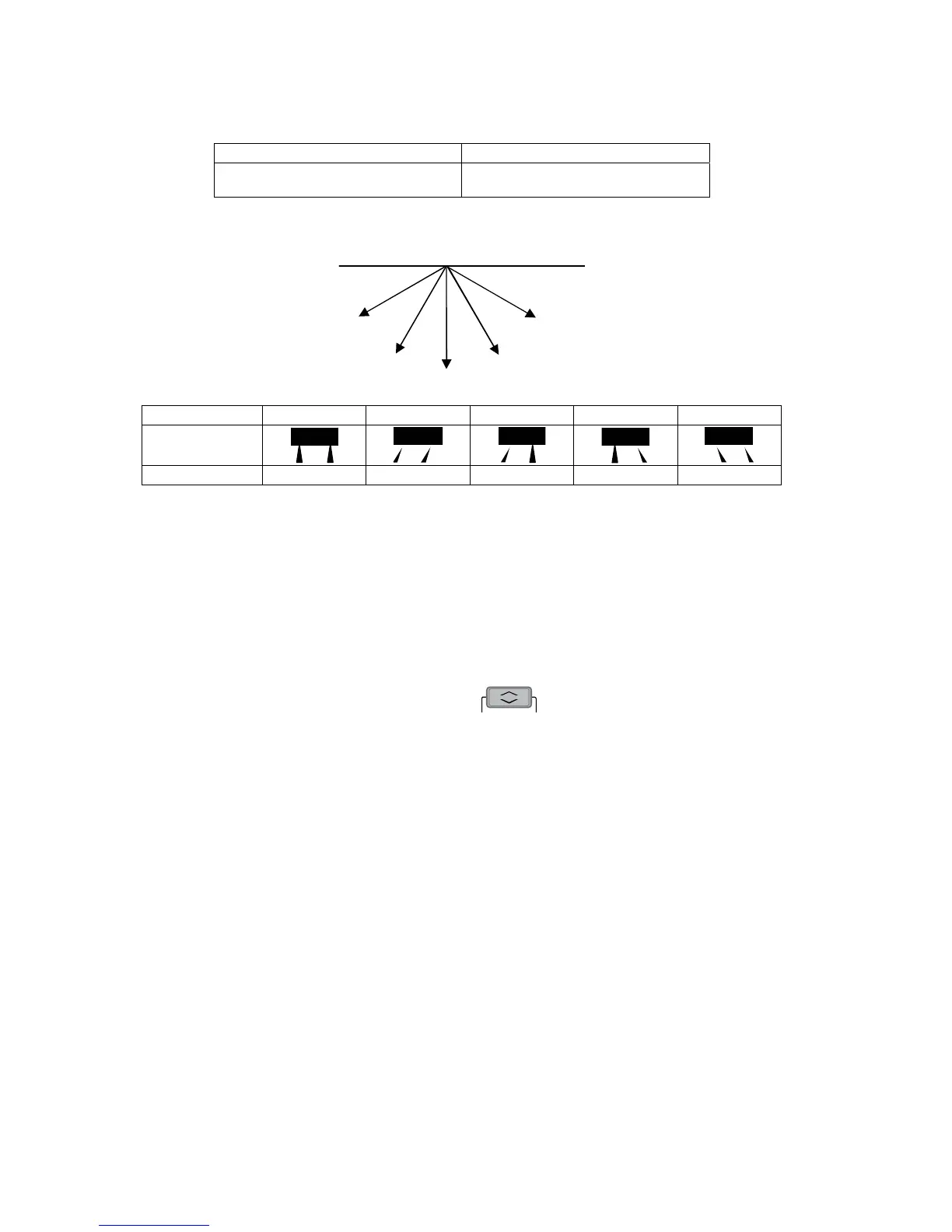

Manual airflow direction can be set using remote control; the angles of the vane are as stated below and the
positions of the vane are as figure below:
1
2
34
5
Top View
Pattern 1 2 3 4 5
Airflow Direction
Patterns at Remote
Control
Vane Angle (°) 90 65 77.5 102.5 115
* The vertical vane angle tolerance is within +/- 5 degree.
13.5 Shower / Direct Operation
To enjoy shower or direct air
This operation provides shower or direct air from the unit.
In SHOWER operating, the airflow is directed upwards to provide radiant cooling.
In DIRECT operation, the airflow is directed downwards to provide fast cooling comfort.
The flap will set to AUTO direction during SHOWER / DIRECT operation.
The operation can be cancelled by pressing the air swing
button or respective button again.
