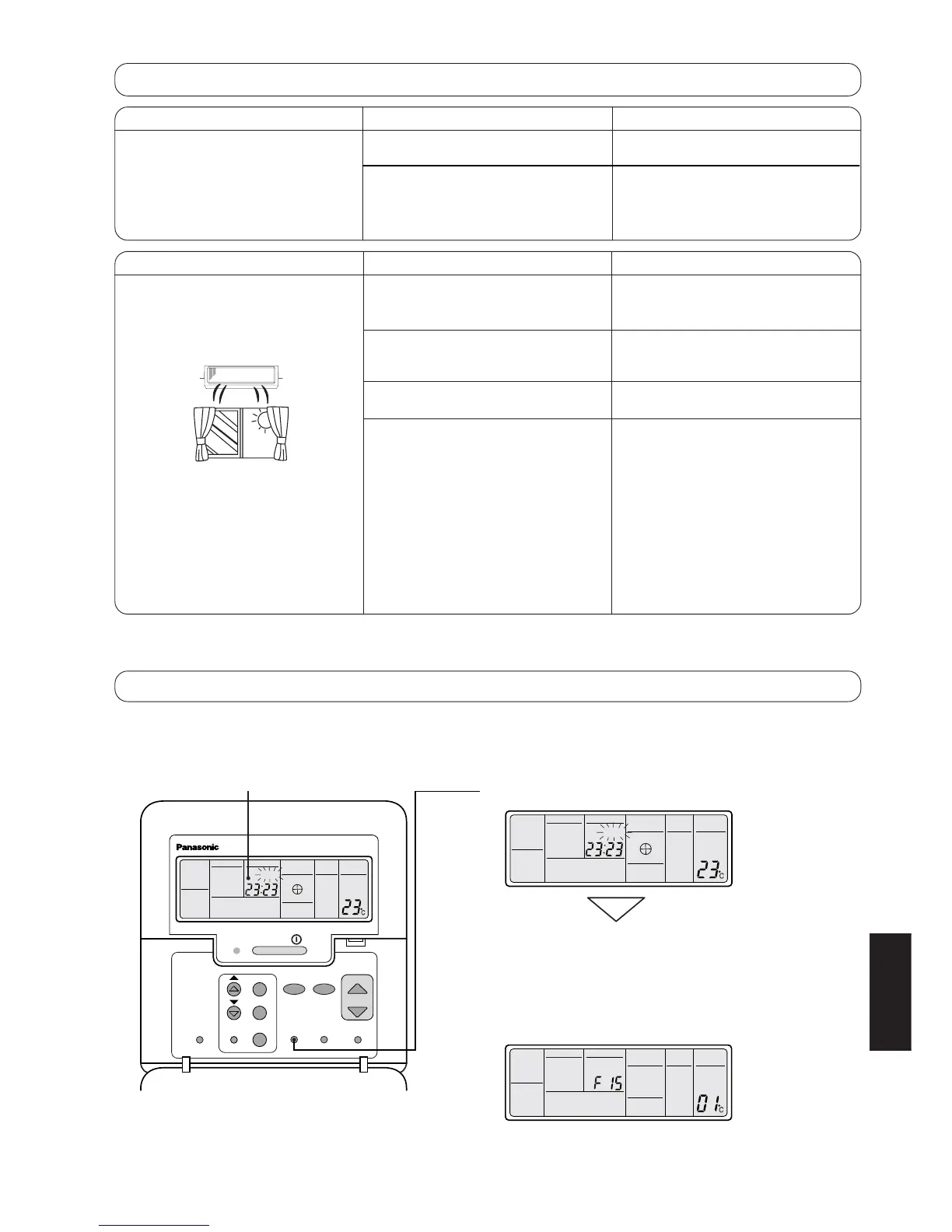

5-2 Name and function of each part
NOTES
• Ensure that the correct button is pressed as simultaneous pressing of the multiple buttons will not make the setting correct.
• The illustration above is for explanatory purposes only. The appearance will be different during actual operation.
• If using the wireless remote control in conjunction with the wired remote control, the settings made from the wireless remote
control will appear on the wired remote control display (except when making timer settings).
• Buttons marked with
*
are not needed for normal operation. If one of these buttons is pressed by mistake, press the same
button once more to cancel the operation.
• When the power resumed after power failure, the unit will restart automatically with all the previous settings preserved by the
memory function. (Auto restart function)

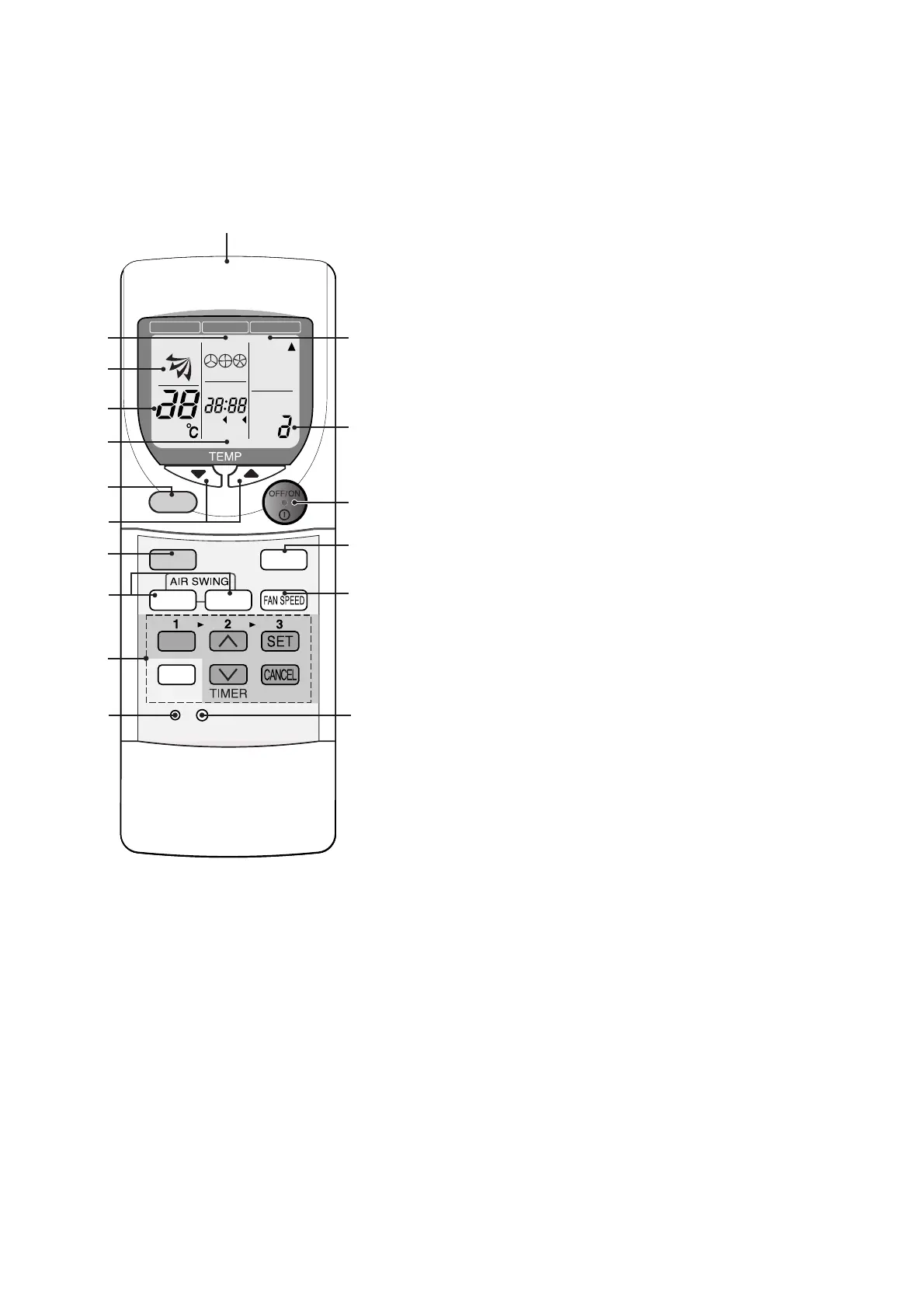

1 Transmitter
Transmits the remote control signal.
2 Fan speed display
3 Airflow direction setting display
4 Temperature setting display (16°C – 31°C)
5 Timer/time setting display
Shows the timer operation setting time or the current time.
6 Operation selection display
7 Address number display (Refer to page 15 for setting details.)
8 OFF/ON button (Refer to page 12.)
9 OPERATION button (Refer to page 12.)
! TEMP (UP/DOWN) buttons (Refer to page 12.)
" FILTER RESET button
Press to cancel the “FILTER” indicator light on the ray receiver.
# AIR SWING (AUTO/MANUAL) buttons (Refer to page 14.)
$ TIMER/CLOCK SET buttons
Used to set the timer operation and the current time. (Refer to
page 13.)
% RESET button
Pressing this button will clear all the settings from memory. You
will then need to make a setting again.
& TEST RUN button*
( FAN SPEED button (Refer to page 12.)
) ADDRESS SET button*
Used to change the address setting. (Refer to page 15.)
OPERATION
AIR SWING FAN SPEED OPERATION
AUTO AUTO
TIMER
OFF
LOMEDHI
TEST RUN
ON
AUTO
HEAT
FAN
GROUP
ADDRESS
COOL
DRY
1
2
3
4
6
7
8
9
5
FILTER RESET
AUTO
MANUAL
TEST RUN
CLOCK
RESET
ADDRESS SET
SELECT
!
"
#
$
%
&
(
)
