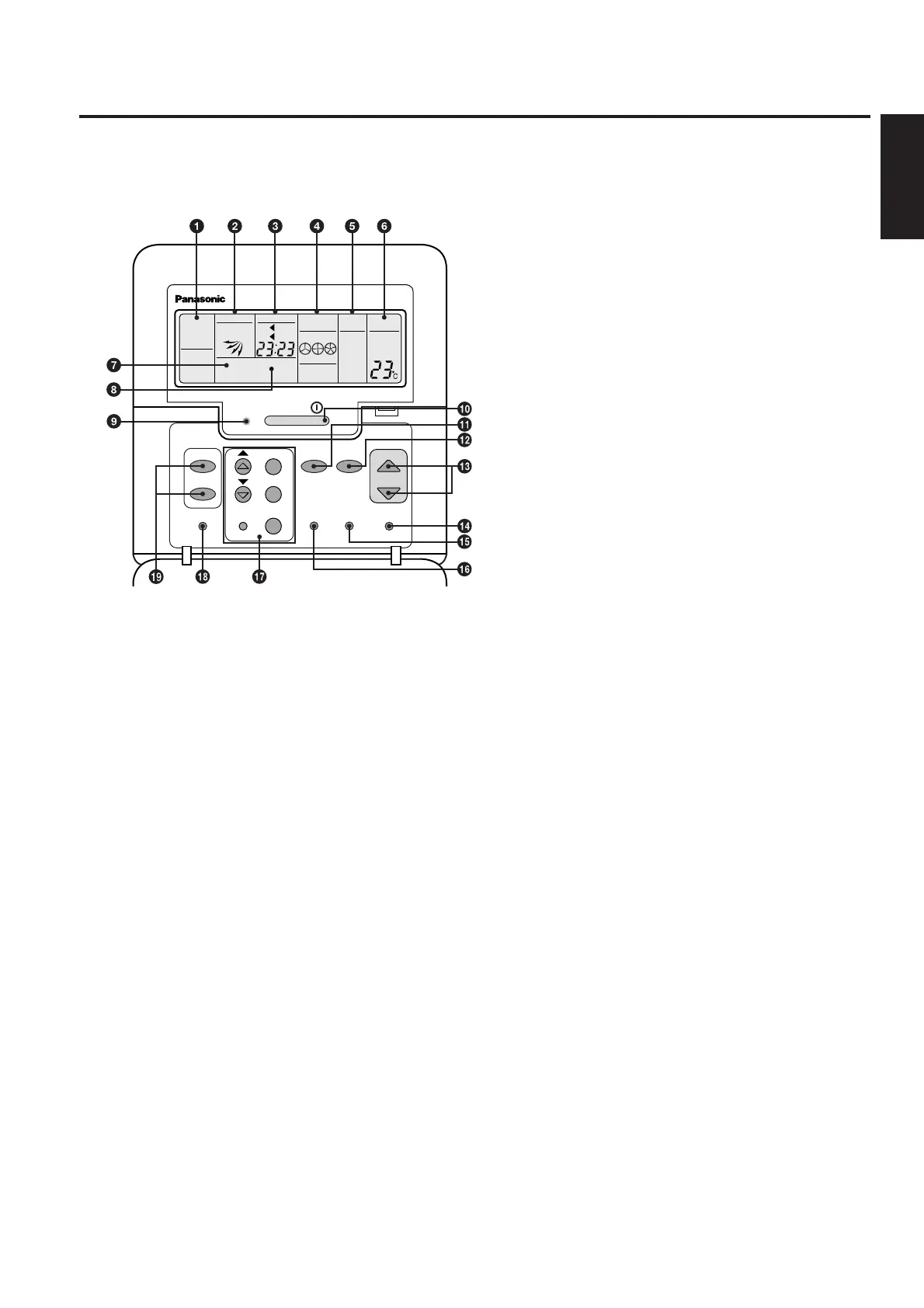

4. WIRED REMOTE CONTROL
4-1 Name and function of each part
& A/C No. button*
This switch is used during group control. It is not needed for
normal operation.
( CHECK button
Press this button if the check display is flashing. (Refer to
page 18.)
) TIMER/CLOCK SET buttons (Refer to page 8.)
~ TEST RUN button*
+ AIR SWING (AUTO/MANUAL) buttons (Refer to page 9.)
Display panel
1 REMOTE
The OFF/ON button cannot be used.
LOCAL
All remote control functions can be used.
2 Airflow direction setting display
3 Timer/time setting display
4 Fan speed display
5 Operation mode selection display
6 Temperature setting display (16°C – 31°C)
7 TEST RUN
Indicates that the unit is running in test operation
mode.
PRE HEAT
Indicates that the unit is running in pre-heating mode.
DEFROST
Indicates that the unit is running in defrosting mode.
8 FILTER CLEAN
(Appears after the cumulative running time reaches
approximately 2,500 hours of operation.)
9 Operation indicator
Lights up in red when the unit is operating.
! OFF/ON button (Refer to page 7.)
" FAN SPEED button (Refer to page 7.)
# OPERATION button (Refer to page 7.)
$ TEMP (UP/DOWN) buttons (Refer to page 7.)
% FILTER RESET button
Press to reset the “FILTER CLEAN” after washing the filter.
NOTES
• Ensure that the correct button is pressed as simultaneous pressing of the multiple buttons will not make the setting correct.
• The illustration above is for explanatory purposes only. The appearance will be different during actual operation.
• Do not operate the remote control with wet hands. Otherwise, electric shock or malfunction may occur.
• Do not press the remote control buttons with sharp object as this may damage the remote control.
• Buttons marked with
*
are not needed for normal operation. If one of these buttons is pressed by mistake, press the same
button once more to cancel the operation.
• When the power resumed after power failure, the unit will restart automatically with all the previous settings preserved by the
memory function. (Auto restart function)
AIR
AIR TIMER
FAN
SPEED
OPE-
RATION
TEMP
UP
DOWN
FILTER
SELECT
SET
AUTO
MANUAL
TEST RUN
CLOCK
CANCEL
A/C No.CHECK
MANUAL
TEST
PRE
DEFROST
FILTER CLEAN
AUTO
LOCAL
REMOTE
CZ-RD51P
TIMER
ON
TEMP
ADDRESS
SET
A/C No.
MEDLO HI
AUTO
HEAT
FAN
COOL
DRY
FAN
SPEED
AUTO
OPE-
RATION
OFF
CHECK
RUN
HEAT
SWING
RESET
SWING
OFF
/
ON
