150

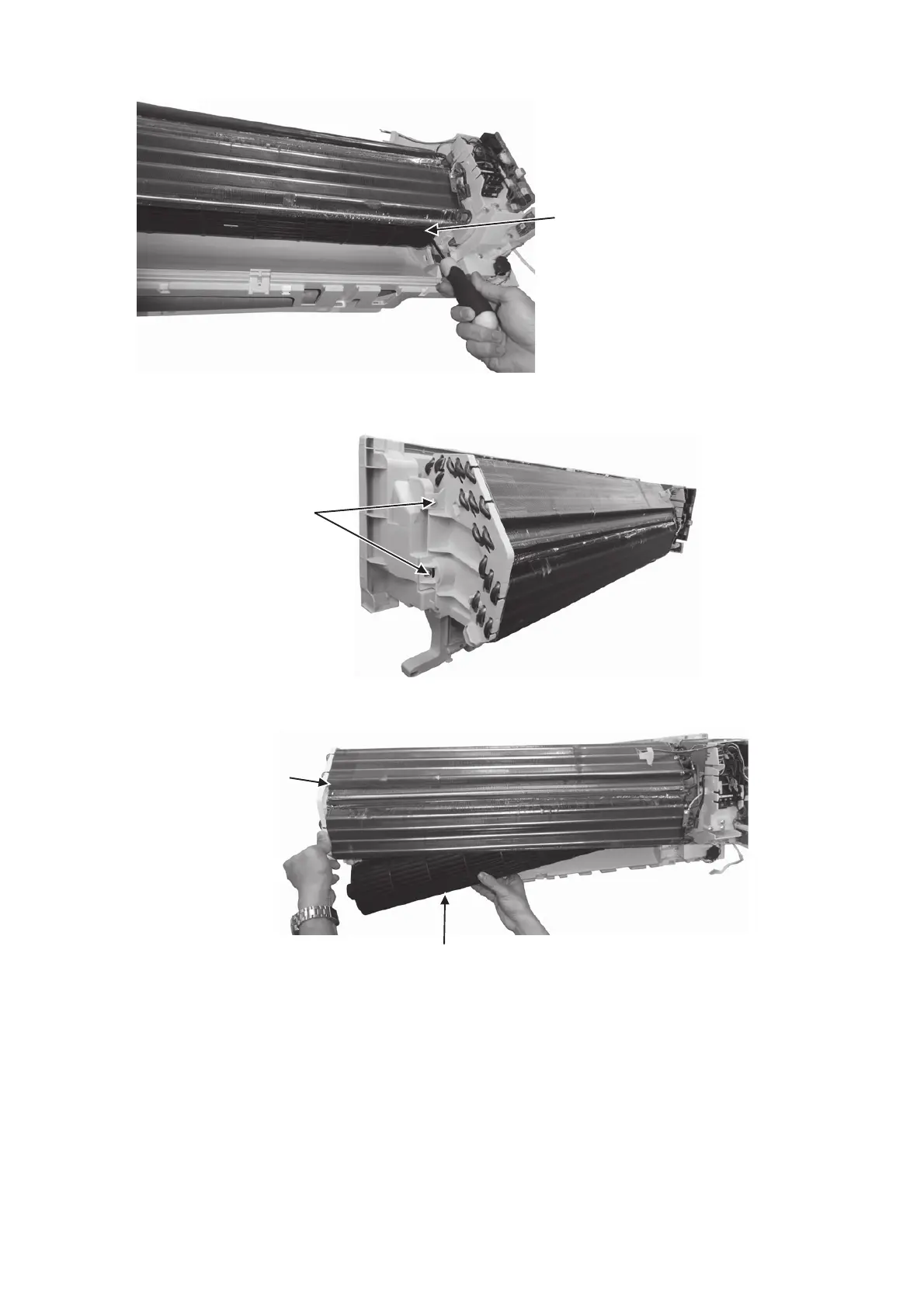

19.1.4 To Remove Cross Flow Fan
Figure 12
Figure 13
Figure 14
1. Loosen the cross-flow fan screw.
2. Remove 2 screws
from Evaporator.
4. Pull out cross-flow fan.
3. Lift up the Evaporator.
