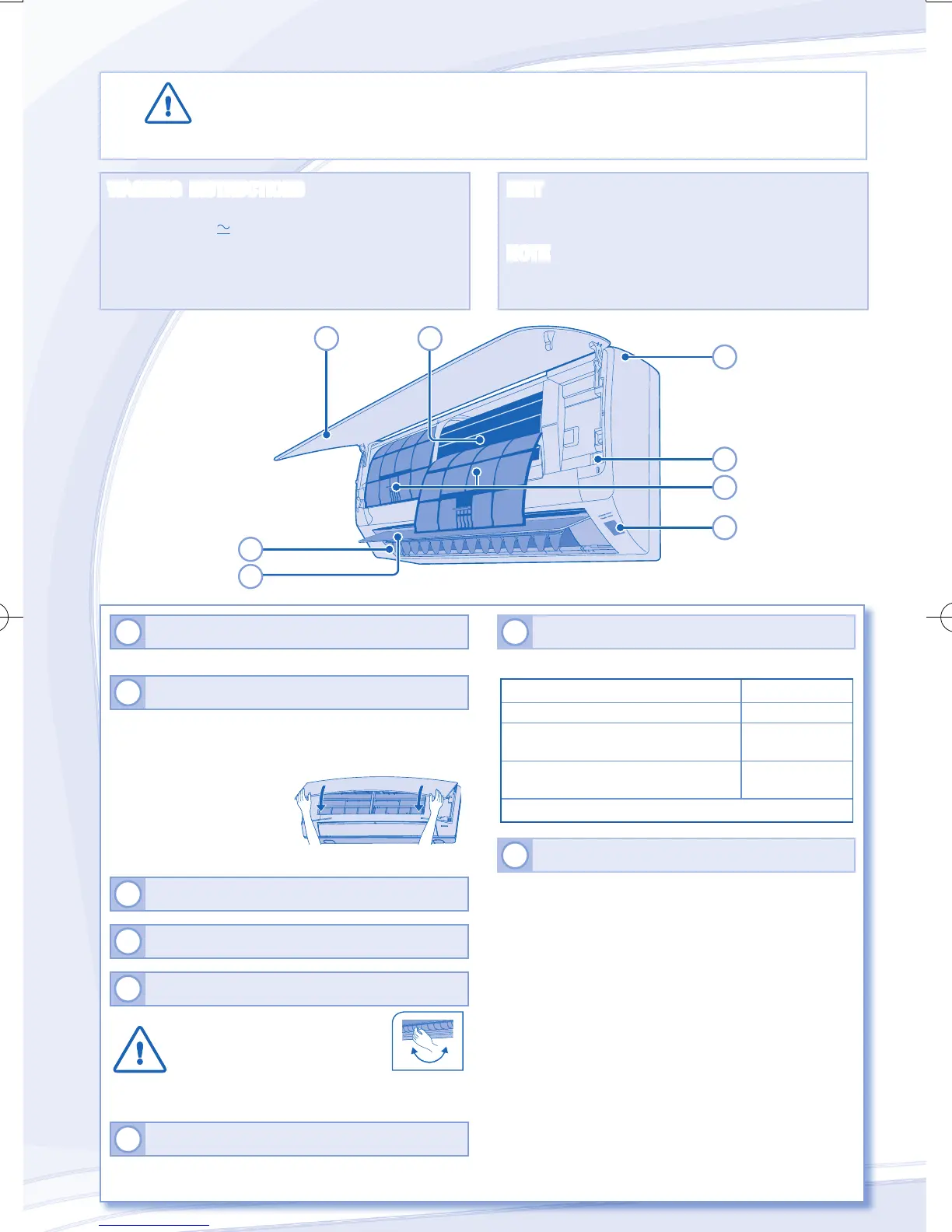

12
CAUTION
• Switch off the power supply before cleaning.
• Do not touch the aluminium n, sharp parts may cause injury.
1
INDOOR UNIT
• Wipe the unit gently with a soft, dry cloth.
2
FRONT PANEL
Remove Front Panel
• Raise and pull to remove the front panel.
• Wash gently and dry.
Close Front Panel
• Press down both ends of the front panel to close it securely.
3
RECEIVER
4
ALUMINIUM FIN
5
HORIZONTAL AIRFLOW DIRECTION LOUVER
• Manually adjustable.
WARNING
Be careful not to insert your ngers into the
unit to avoid injuring by cross-ow fan.
6
VERTICAL AIRFLOW DIRECTION LOUVER
• Do not adjust by hand.
7
AUTO OFF/ON BUTTON
• Use when remote control is misplaced or malfunction.
Action Mode
Press once. Auto
Press and hold until 1 beep is heard,
then release.
Cooling
Press and hold until you hear double
beep sound, then release.
Heating
Press the button to turn off.
8
AIR FILTERS
• Clean the lters regularly.
• Wash/rinse the lters gently with water to avoid damage
to the lter surface.
• Dry the lters thoroughly under the shade, away from
re or direct sunlight.
• Replace any damage lter.
2
5
7
1
4
3
8
6
INDOOR UNIT
WASHING INSTRUCTIONS HINT
• Do not use benzene, thinner or scouring powder.
• Use only soap ( pH7) or neutral household detergent.
• Do not use water hotter than 40°C.
• To ensure optimal performance of the unit, cleaning
maintenance have to be carried out at regular intervals.
NOTE
• If chemical cloth is used to wipe the unit, instruction for
the cloth should be followed.
PH005430 F567943.indb 12 2011-2-23 13:27:38

Panasonic CS-YE12MKX Specifications

General

Type	Air conditioner indoor unit
Built-in display	No
Refrigerating medium	R410A
Cooling capacity (max)	2840 BTU/h
Dehumidifying capacity	1.9 l/h
Heating capacity (max)	3440 BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	3300 W
Heating capacity in watts (max)	4000 W
Cooling energy efficiency (EER, W/W)	3.23
Heating energy efficiency (COP, W/W)	3.61
Indoor unit weight	8000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	810 m³/h
Heating airflow (indoor unit)	834 m³/h
Indoor unit dimensions (WxDxH)	803 x 214 x 283 mm
Indoor unit noise level (high speed)	58 dB
Outdoor units quantity	0
Noise level (low speed)	22 dB
Noise level (high speed)	42 dB
Noise level (medium speed)	30 dB
Annual energy consumption	510 kWh
Power consumption (cooling) (max)	1300 W
Power consumption (cooling) (min)	200 W
Power consumption (heating) (max)	1420 W
