141

18.4.25 F95 (Outdoor High Pressure Protection: Cooling or Soft Dry)

Malfunction Decision Conditions

 During operation of cooling or soft dry, when outdoor unit heat exchanger high temperature data is detected by

the outdoor unit heat exchanger thermistor.

Malfunction Caused

 Outdoor heat exchanger temperature rise due to short-circuit of hot discharge air flow.

 Outdoor heat exchanger temperature rise due to defective of outdoor fan motor.

 Outdoor heat exchange temperature rise due to defective outdoor heat exchanger thermistor.

 Outdoor heat exchanger temperature rise due to defective of outdoor unit PCB.

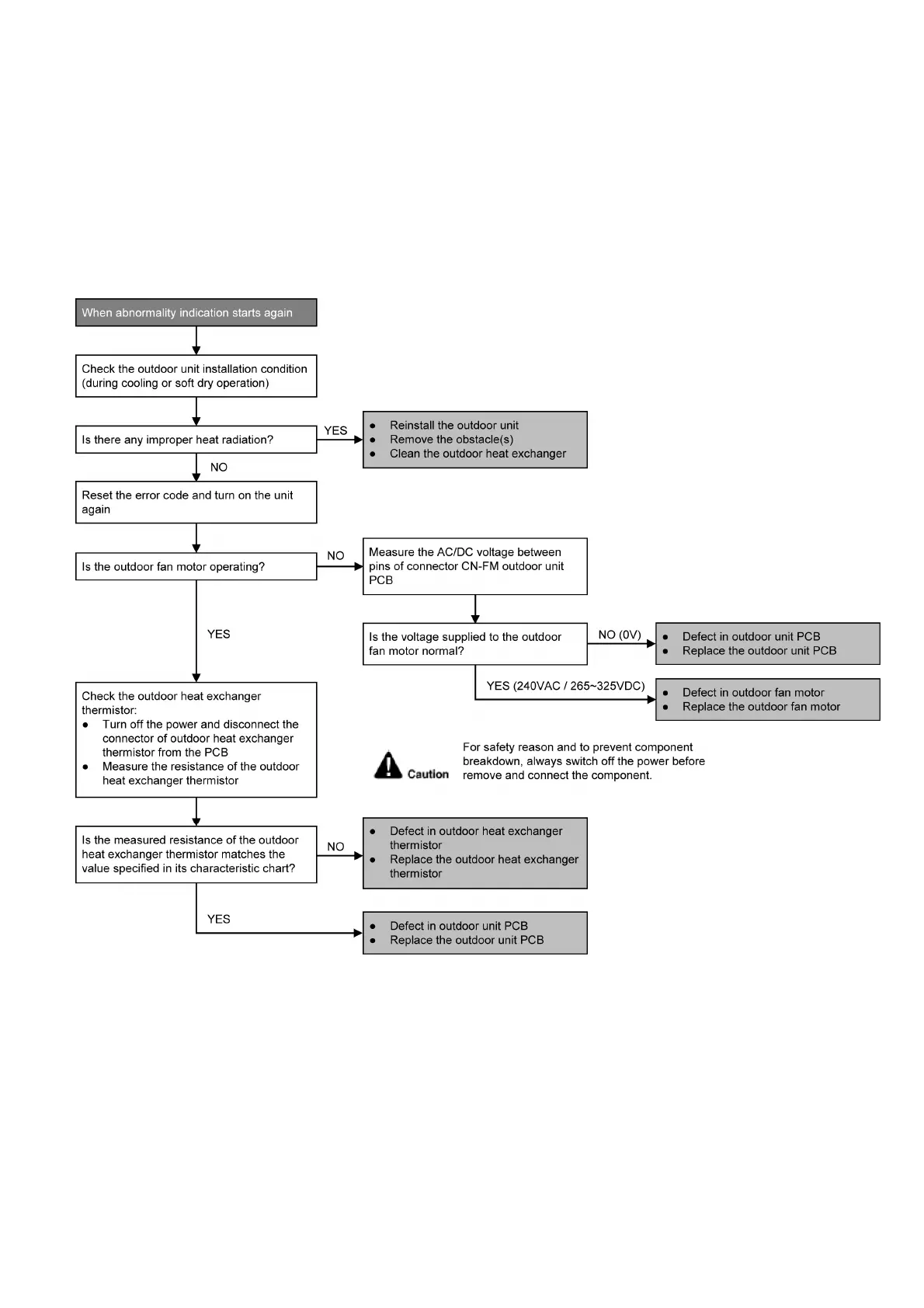

Troubleshooting
