19. Disassembly and Assembly Instructions
WARNING
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
19.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor
Removal Procedures

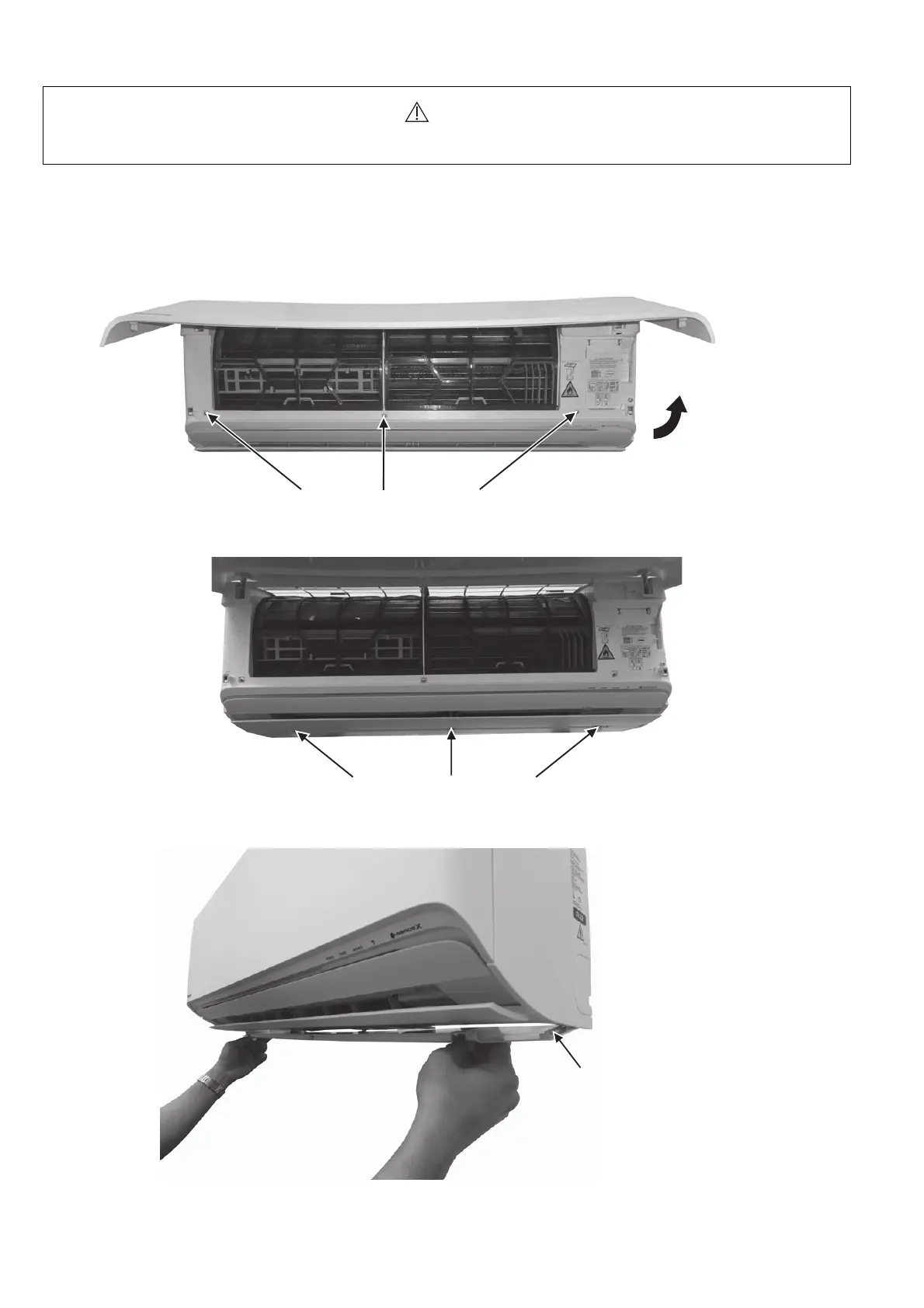

19.1.1 To Remove Front Grille
Figure 1
Figure 2
Figure 3
2. Remove 3 screws at the Front Grille.
1. Lift up the Intake Grille.
3. Remove 3 caps and 3 screws at Bottom Plate.
4. Detach the hook from left and right.
Then remove the Bottom Plate.
To Next Page
