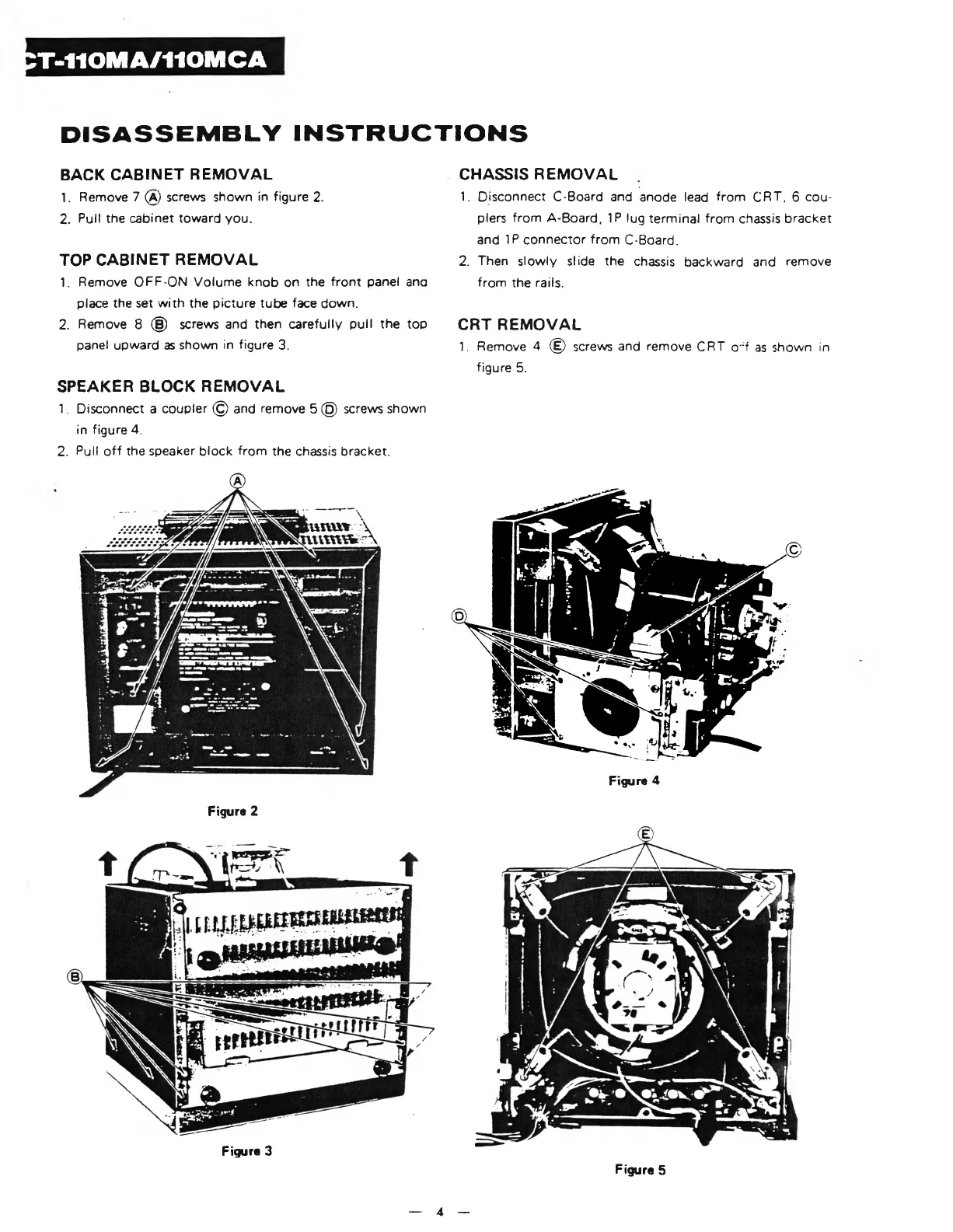

DISASSEMBLY INSTRUCTIONS
BACK CABINET REMOVAL
1. Remove 7 (A) screws shown in figure 2.
2. Pull the cabinet toward you.
TOP CABINET REMOVAL
1. Remove OFF-ON Volume knob on the front panel ana
place the set with the picture tube face down.
2. Remove 8 ® screws and then carefully pull the top
panel upward as shown in figure 3.
SPEAKER BLOCK REMOVAL
1. Disconnect a coupler © and remove 5 © screws shown
in figure 4.
2. Pull off the speaker block from the chassis bracket.
CHASSIS REMOVAL
1. Disconnect C-Board and anode lead from CRT, 6 cou 
plers from A-Board, 1P lug terminal from chassis bracket
and 1P connector from C-Board.
2. Then slowly slide the chassis backward and remove
from the rails.
CRT REMOVAL
1. Remove 4 © screws and remove CRT o"f as shown in
figure 5.
Figure 2
Figure 4
Figure 3
Figure 5
