CT-11OMA/11OMC.

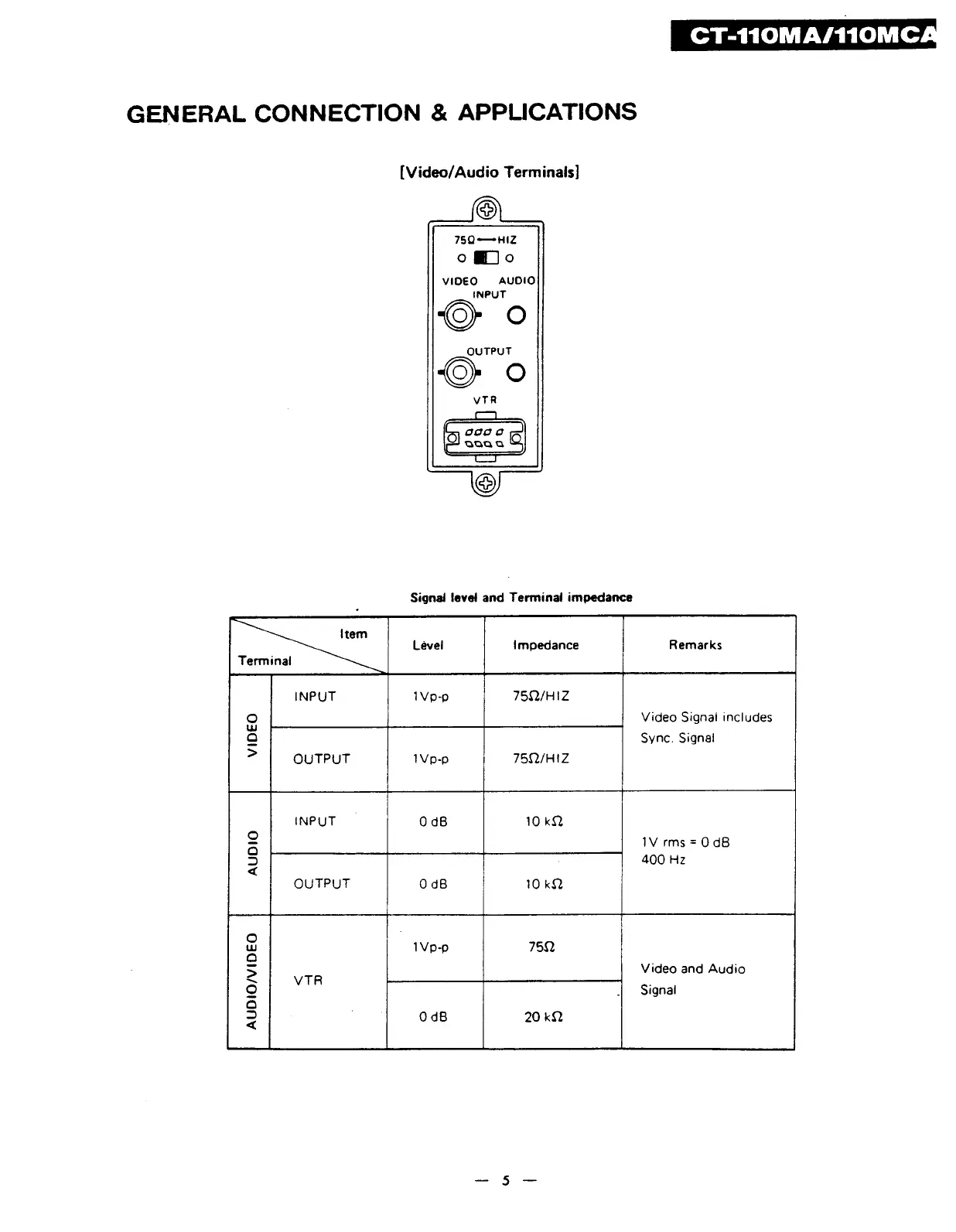

GENERAL CONNECTION & APPLICATIONS
[Video/Audio Terminals]
75Q ----- HIZ
o !□ o
VIDEO AUDIO
INPUT
OUTPUT
VTR
Signal level and Terminal impedance
Item
Terminal
Level
Impedance Remarks
VIDEO
INPUT 1VP-P
75H/HIZ
Video Signal includes
Sync. Signal
OUTPUT
1Vp-p
75Q/HIZ
AUDIO
INPUT
0 dB 10
1 V rms = 0 dB
400 Hz
OUTPUT
0 dB
10 kQ
AUDIO/VIDEO
VTR
IVp-p
75ft
Video and Audio
Signal
OdB 20 kH
— 5 —
