-11OMA/11OMCA

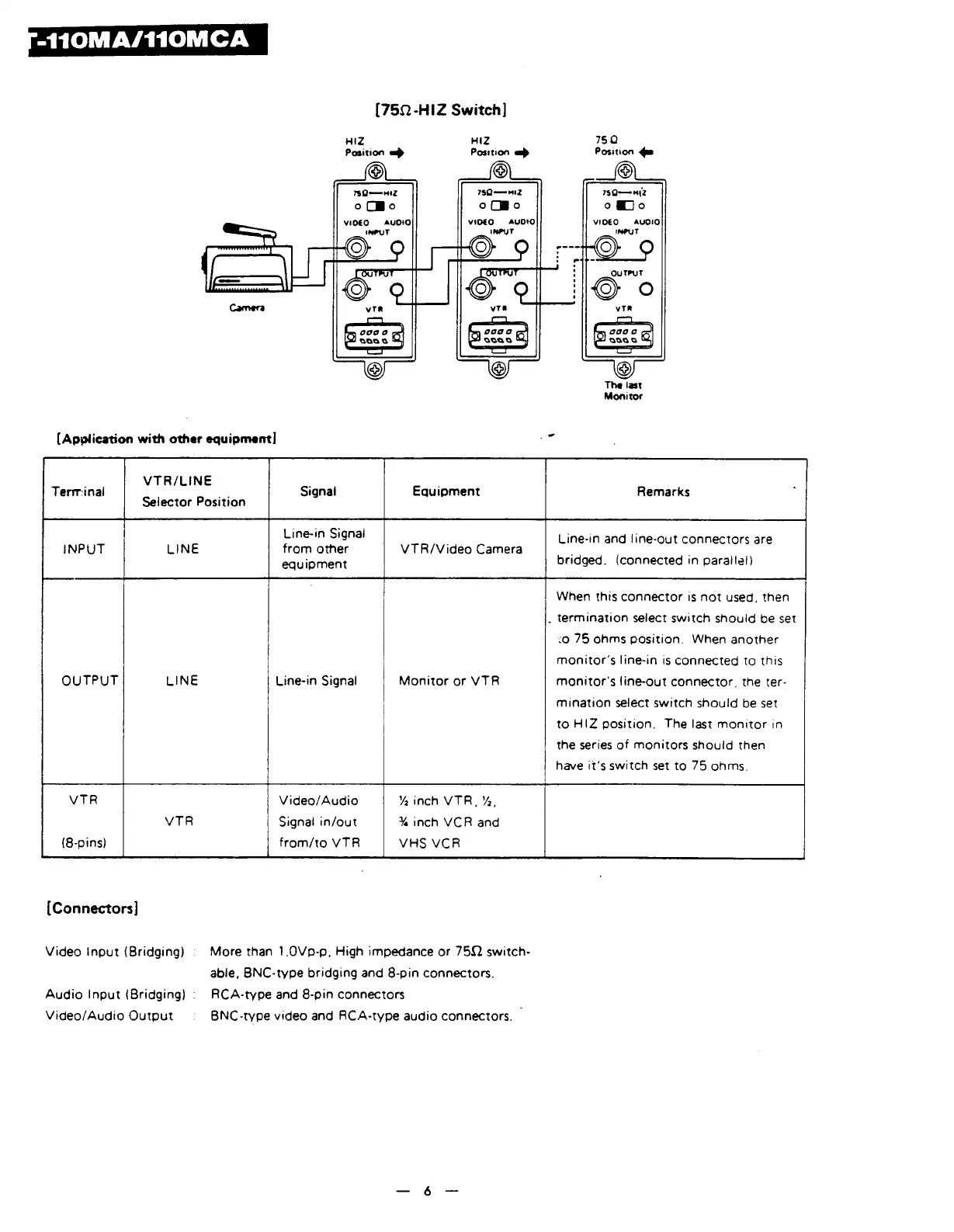

[75U-HIZ Switch]
HIZ
Position
Position
HIZ
75 Q
Position 4 s
75 Q ----- M |z
O O
VIOCO AUDIO
INFUT
OUTFUT
<o> o
VTR
The last
Monitor
[Application with other equipment]
Terminal
VTR/LINE
Selector Position
Signal Equipment
Remarks
input
LINE
Line-in Signal
from other
equipment
VTR/Video Camera
Line-in and line-out connectors are
bridged, (connected in parallel)
OUTPUT
LINE Line-in Signal Monitor or VTR
When this connector is not used, then
. termination select switch should be set
;o 75 ohms position. When another
monitor's line-in is connected to this
monitor's line-out connector, the ter 
mination select switch should be set
to HIZ position. The last monitor in
the series of monitors should then
have it's switch set to 75 ohms.
VTR
(8-pins)
VTR
Video/Audio
Signal in/out
from/to VTR
Ya inch VTR, 7 2 ,
% inch VCR and
VHS VCR
[Connectors]
Video Input (Bridging)
Audio Input (Bridging)
Video/Audio Output
More than 1.0Vp-p, High impedance or 75ft switch 
able, BNC-type bridging and 8-pin connectors.
RCA-type and 8-pin connectors
BNC-type video and RCA-type audio connectors.
— 6 —
