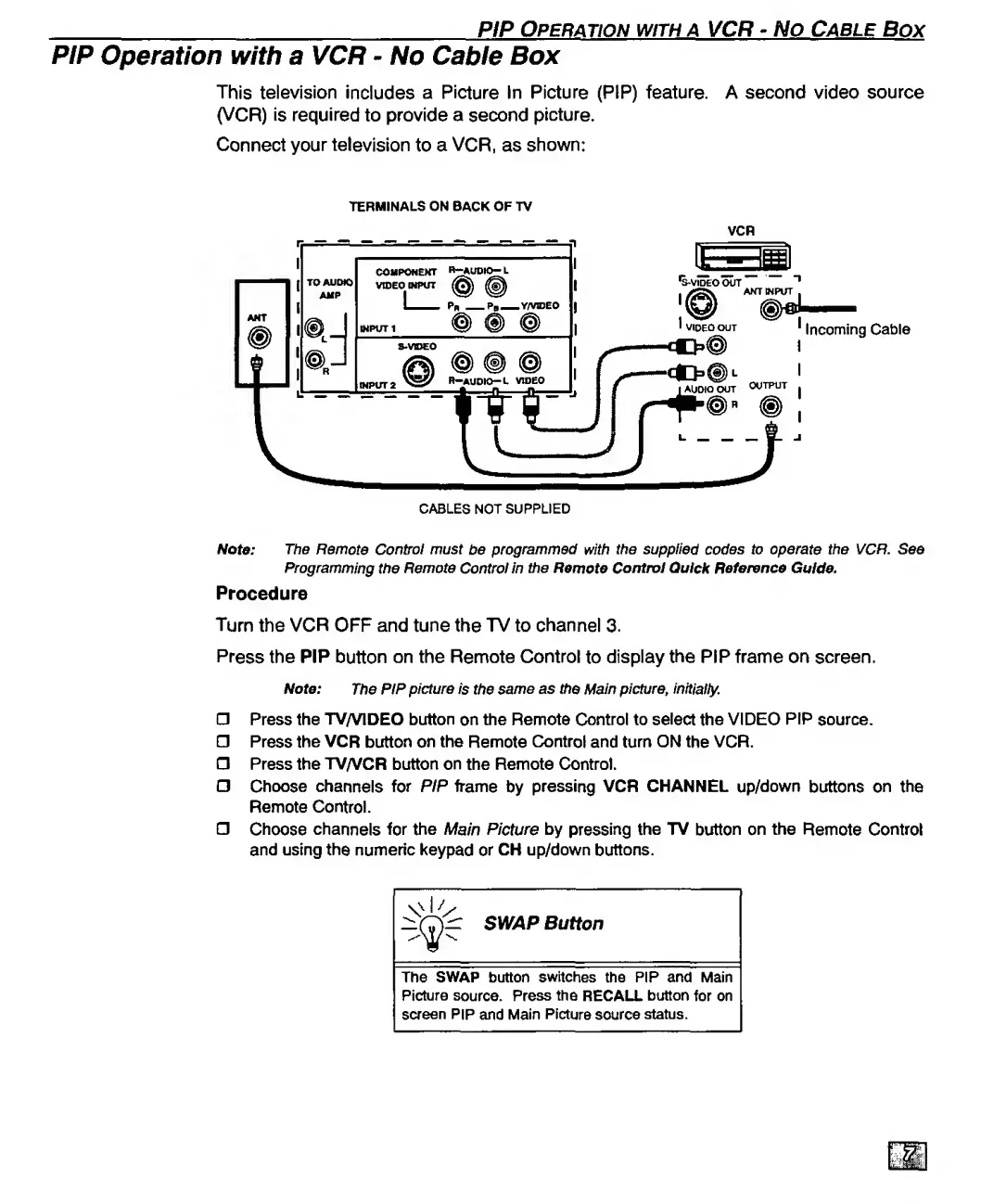

_ PIP Operation with a VCR - No Cable Box
PIP Operation with a VCR > No Cable Box
This television includes a Picture In Picture (PIP) feature. A second video source
(VCR) is required to provide a second picture.
Connect your television to a VCR, as shown:
TERMINALS ON BACK OF TV
VCR
Note: The Remote Control must be programmed with the supplied codes to operate the VCR. See
Programming the Remote Control in the Remote Control Quick Reference Guide,
Procedure
Turn the VCR OFF and tune the TV to channel 3.
Press the PIP button on the Remote Control to display the PIP frame on screen.
Note: The PIP picture is the same as the Main picture, initially.
□ Press the TV/VIDEO button on the Remote Control to select the VIDEO PIP source,
n Press the VCR button on the Remote Control and turn ON the VCR.
□ Press the TV/VCR button on the Remote Control.
□ Choose channels for P/P frame by pressing VCR CHANNEL up/down buttons on the
Remote Control.
n Choose channels for the Main Picture by pressing the TV button on the Remote Control
and using the numeric keypad or CH up/down buttons.
\X|//
SWAP Button
The SWAP button switches the PIP and Main
Picture source. Press the RECALL button for on
screen PIP and Main Picture source status.
