Panasonic CU-2E18CBPG Service Manual

9.1.3. Airflow direction Control

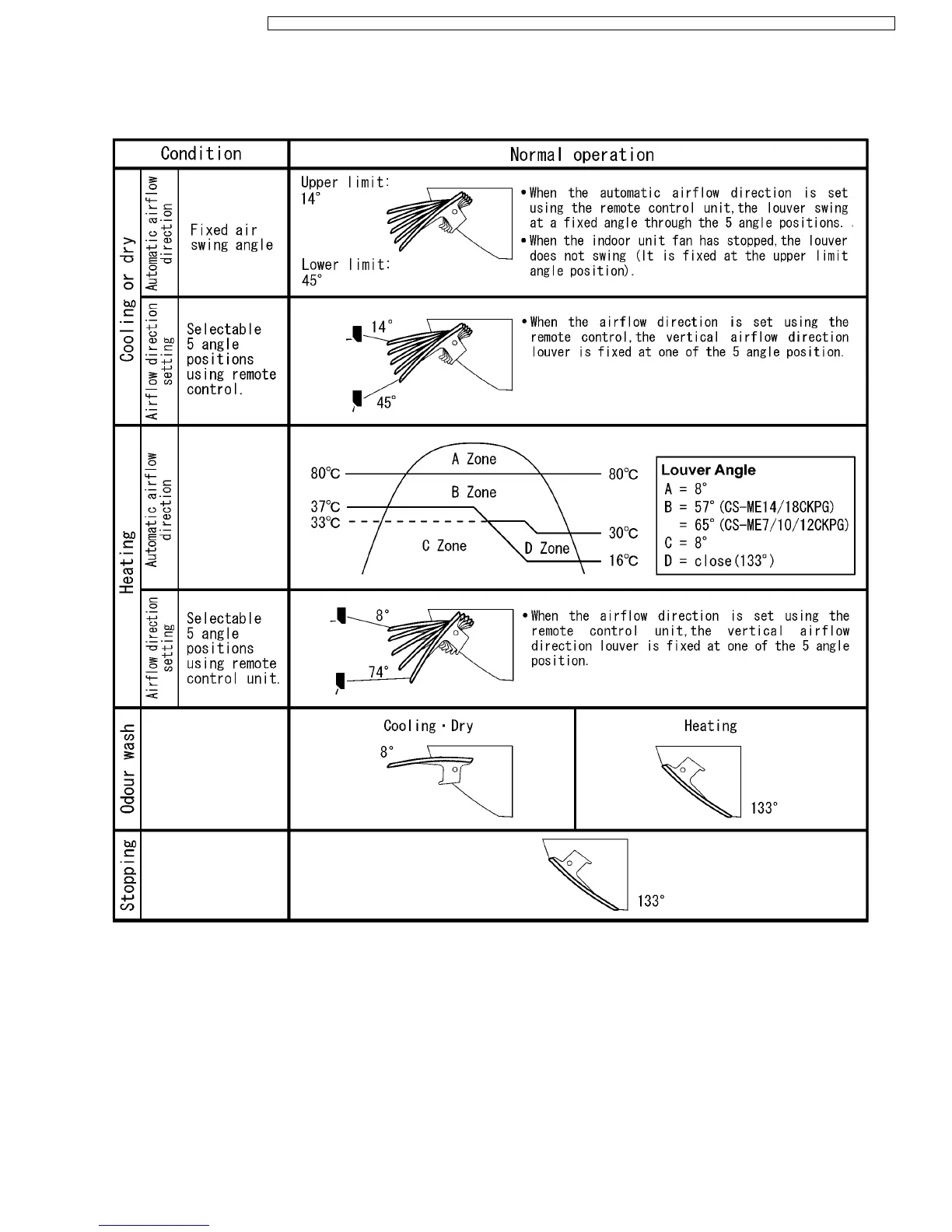

The vertical airflow direction louver is controlled as shown in the table below in response to the operation of the remote control air
swing button and the operating conditions.
· When the air conditioner is operated using the remote control, the vertical airflow direction louvers first open, and then move
to the angle position which has been set.
· When the power has been turned off during operation, the operation stop with the vertical airflow louver left open.
· Horizontal airflow direction louvers are operated manually. Set them manually to the desired position.
25
CS-ME7CKPG / CS-ME10CKPG / CS-ME12CKPG / CS-ME14CKPG / CS-ME18CKPG / CU-2E15CBPG / CU-2E18CBPG / CU-3E23CBPG / CU-4E27CBPG

Panasonic CU-2E18CBPG Specifications

General

Brand	Panasonic
Model	CU-2E18CBPG
Category	Air Conditioner
Language	English
