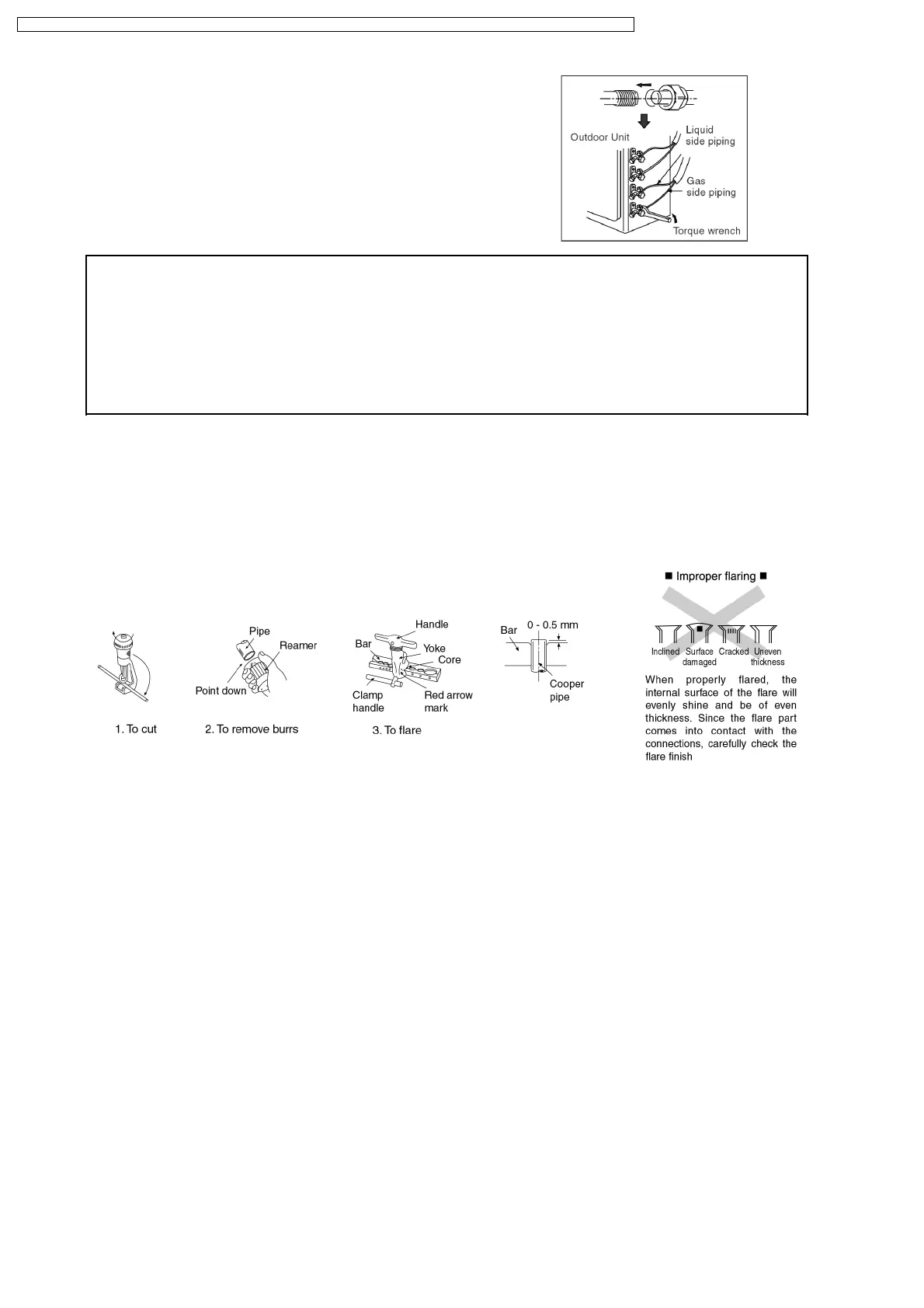

Connecting the Piping to Outdoor Unit
1. Align the center of the piping and sufficiently tighten the
flare nut with fingers.
2. Finally, tighten the flare nut with torque wrench until the
wrench clicks.
•
When tightening the flare nut with torque wrench,
ensure the direction for tightening follows the arrow on
the wrench.
Caution
The CU-3C20BKP5G/C9BKPG have different cooling capacities depending on the connection to A
1
,A
2
and/or B on CU-
3C20BKP5G individually.
(Refer to SPECIFICATIONS on CATALOG)
1. The Cooling Capacity of Indoor Unit connecting “B” on CU-3C20BKP5G (Called B unit) is different from that of A
1
and
A
2
Units.
2. A
1
and A
2
Units share the same compressor, their cooling capacities thus change depending on whether one, the other,
or both of the units is in use.
3. Reflect the B or A (A
1
and/or A
2
) on the Indoor Unit for later reference.
CUTTING AND FLARING THE PIPING
1. Please cut using pipe cutter and then remove the burrs.
2. Remove the burrs by using reamer. If burrs is not removed, gas leakage may be caused.
Turn the piping end down to avoid the metal powder entering the pipe.
3. Please make flare after inserting the flare nut onto the copper pipes.
46
CS-C9BKPG CU-2C14BKP5G / CS-C9BKPG CU-2C18BKP5G / CS-C9BKPG CU-3C20BKP5G / CS-C7BKPG CU-2C19BKP5G / CS-C12BKPG
