Panasonic CU-3C20BKP5G Service Manual

−

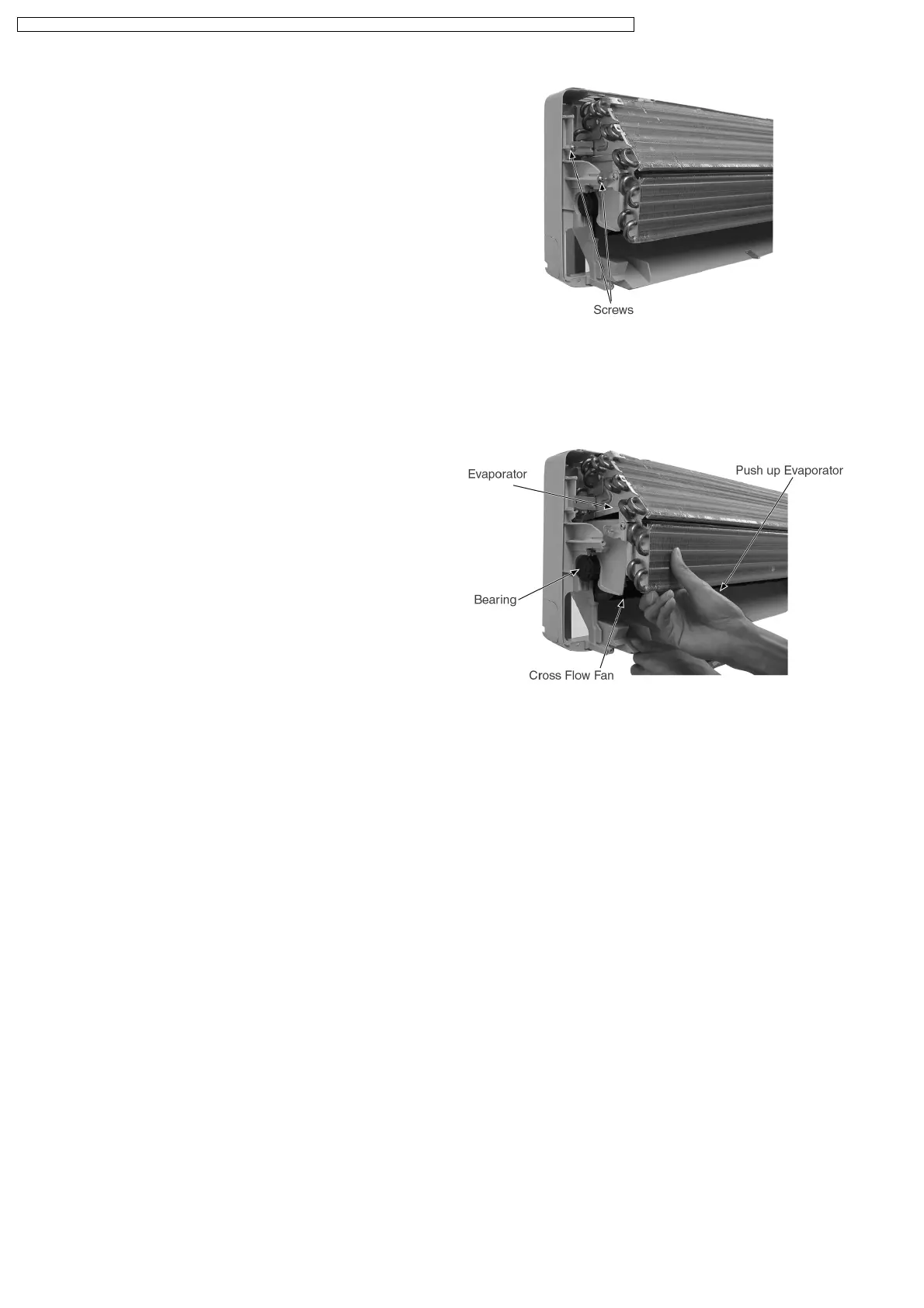

Remove the screws at the left of the Evaporator. (Fig. 8)
−
Remove the Bearing. (Fig. 9)
−
Push up the Evaporator and pull out the Cross Flow Fan
from shaft. By then, Fan Motor can be taken out. (Fig. 9)
Fig. 8
Fig. 9
58
CS-C9BKPG CU-2C14BKP5G / CS-C9BKPG CU-2C18BKP5G / CS-C9BKPG CU-3C20BKP5G / CS-C7BKPG CU-2C19BKP5G / CS-C12BKPG
