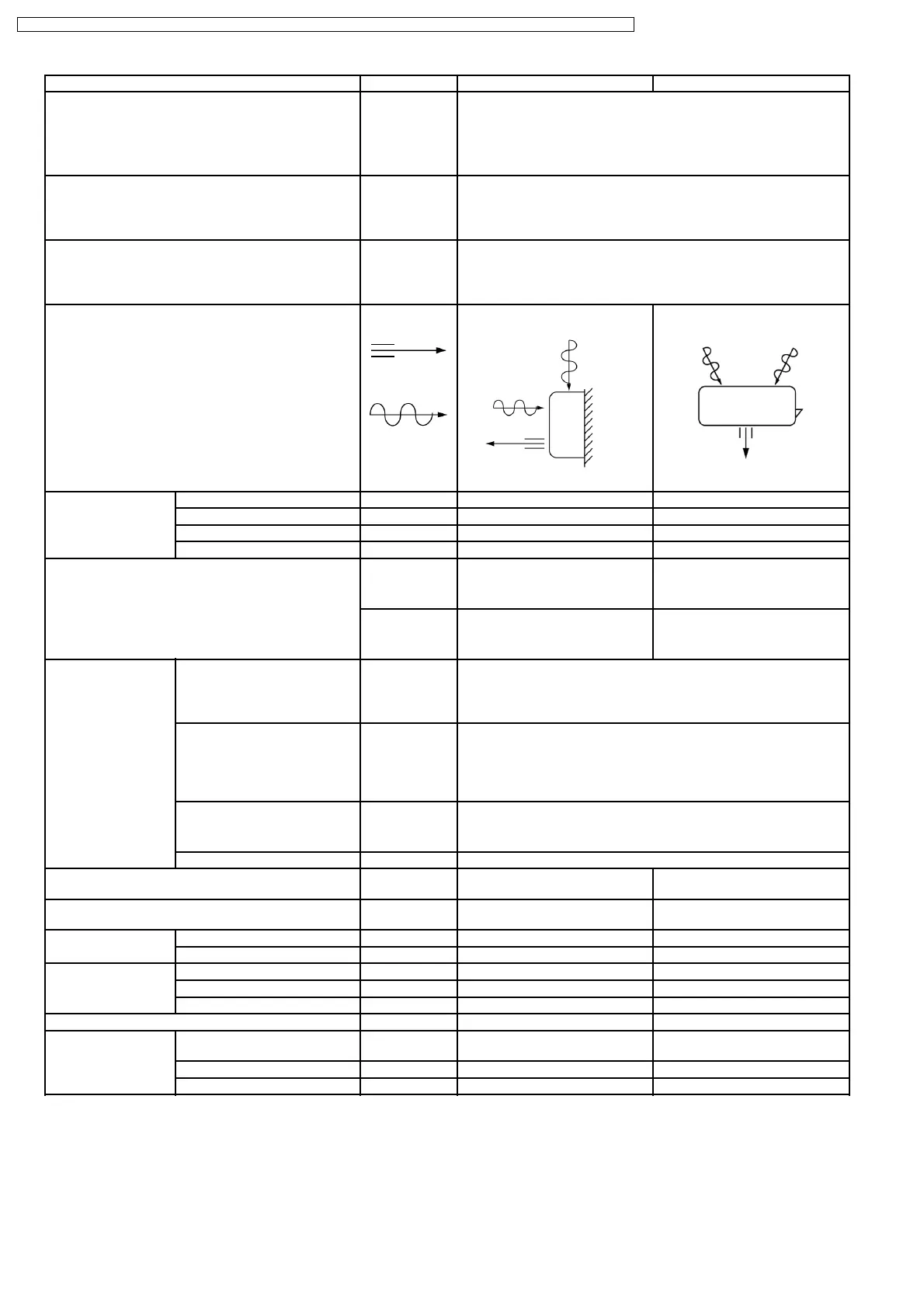

Unit CS-C9BKPG CU-2C18BKP5G
Power Source Phase Single
V Europe: 230 - 220 Oceania: 240 - 220
Cycle 50
Cooling Capacity kW
kcal/h
(1 unit) 2.44 - 2.40
2,100 - 2,060
(2 units) 4.88 - 4.80
4,200 - 4,130
Moisture Removal l/h
Pint/h
(1 unit) 1.5
3.2
(2 units) 2.6
5.5
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m
3
/min (cfm) 6.8 (240) - 6.8 (240)
Indoor Air (Me) m
3
/min (cfm) 8.0 (280) - 8.0 (280)
Indoor Air (Hi) m
3
/min (cfm) 9.9 (350) - 9.9 (350)
Indoor Air (SHi) m
3
/min (cfm) 10.9 (380) - 10.9 (380)
Noise Level dB (A) High 36 - 36, Low 26 - 26 High 55 - 53
Power level dB High 49 - 49 High 70 - 68
Electrical Data Input W (1 unit)
770 - 730
(2 units)
1,540 - 1,460
Running Current A (1 unit)
Europe: 3.4 - 3.5
Oceania: 3.3 - 3.5
(2 units)
Europe: 6.8 - 7.0
Oceania: 6.6 - 7.0
EER W/W (kcal/hW) 3.17 - 3.29 (2.73 - 2.83)
Starting Current A 15.5 - 15.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 3/8
L ; Half Union 1/4
G ; 3-way valve 3/8
L ; 3-way valve 1/4
Pipe Size
(Flare piping)
inch
inch
G (gas side) ; 3/8
L (liquid side) ; 1/4
G (gas side) ; 3/8
L (liquid side) ; 1/4
Drain
Hose
Inner diameter mm 12
Length m 0.7
Dimensions Height inch (mm) 10 - 13/16 (275) 25 - 21/32 (651)
Width inch (mm) 31 - 15/32 (799) 35 - 3/16 (893)
Depth inch (mm) 8 - 9/32 (210) 13 - 19/32 (345)
Net Weight lb (kg) 20 (9.0) 137 (62)
Compressor Type Rotary (1 cylinder)
rolling piston type
Motor Type Induction (2-poles)
Rated Output W 650
8
CS-C9BKPG CU-2C14BKP5G / CS-C9BKPG CU-2C18BKP5G / CS-C9BKPG CU-3C20BKP5G / CS-C7BKPG CU-2C19BKP5G / CS-C12BKPG
