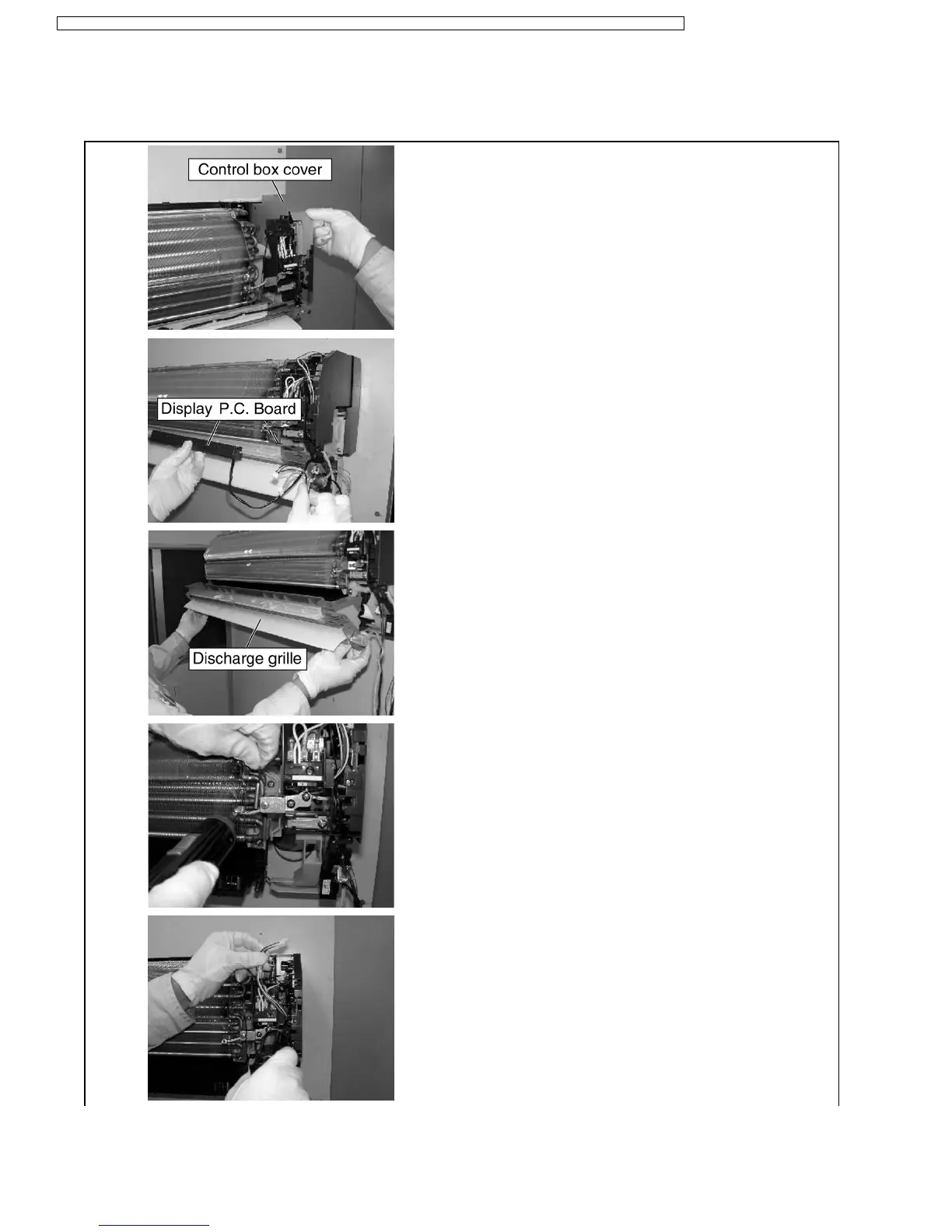

13.3. DISASSEMBLY OF PARTS
13.3.1. Indoor Unit
1. Remove the control box cover (steel plate).
2. Remove the display P.C. Board (plastic).
3. Disconnect the connectors, rearrange the lead wires, and remove the
discharge grille.
4. Remove the ground screw.
5. Disconnect the connectors of the fan motor, sensor, and others.
88
