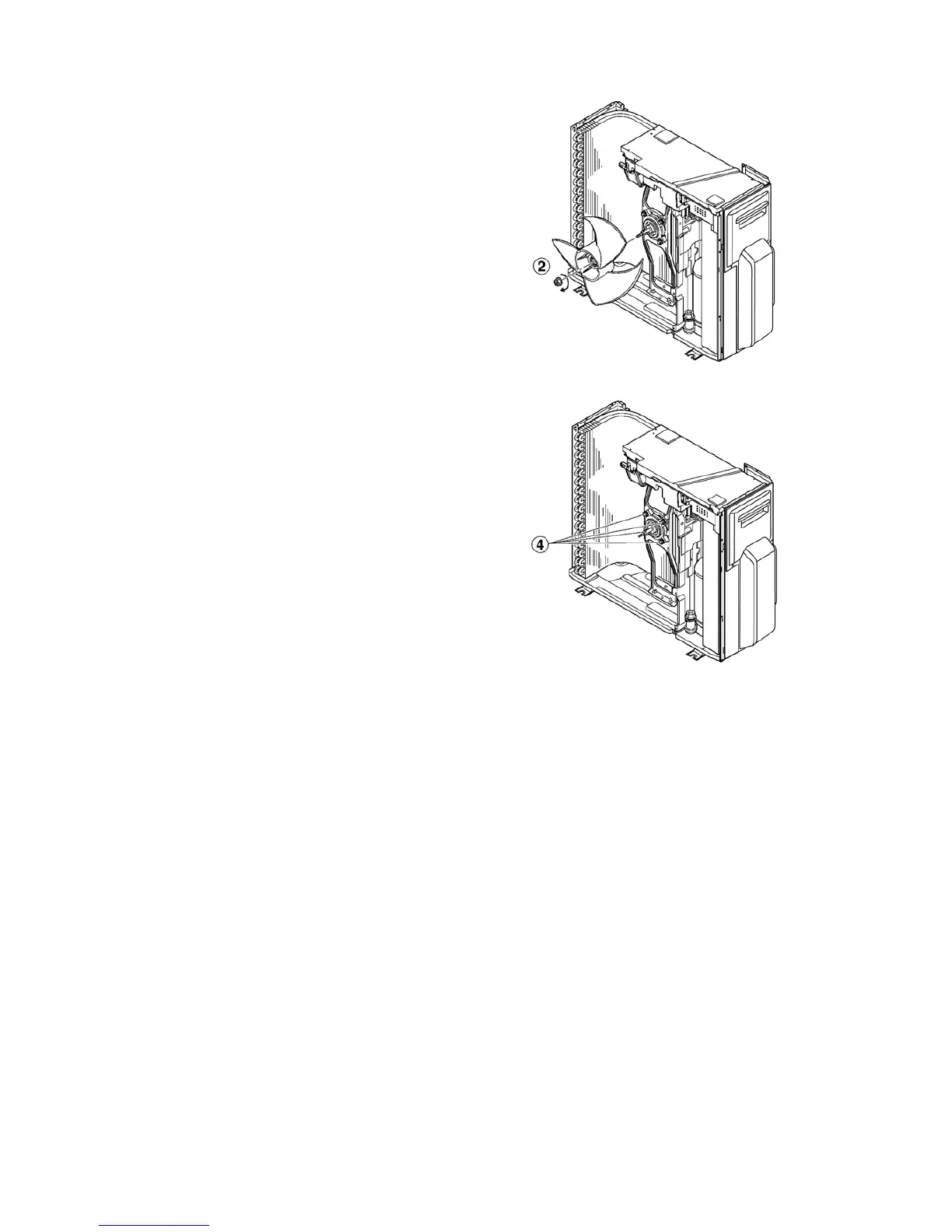

18.2.4. Removing the Propeller Fan and Fan Motor
1. Follow the steps in 16.2.1 for removing the cabinet top
plate and cabinet front plate.
2. Remove the propeller fan by removing the nut turning
clockwise at its center.
3. Disconnect the fan motor connector from the control P.C.
Board.
4. Loosen the 4 fan motor mounting screws then remove the
fan motor.
