17.3 Outdoor Electronic Controller Removal Procedure
17.3.1 CU-E7NKR CU-E9NKR CU-E12NKR
Caution! When handling electronic controller, be careful of electrostatic discharge.
1 Remove the 5 screws of the Top Panel.

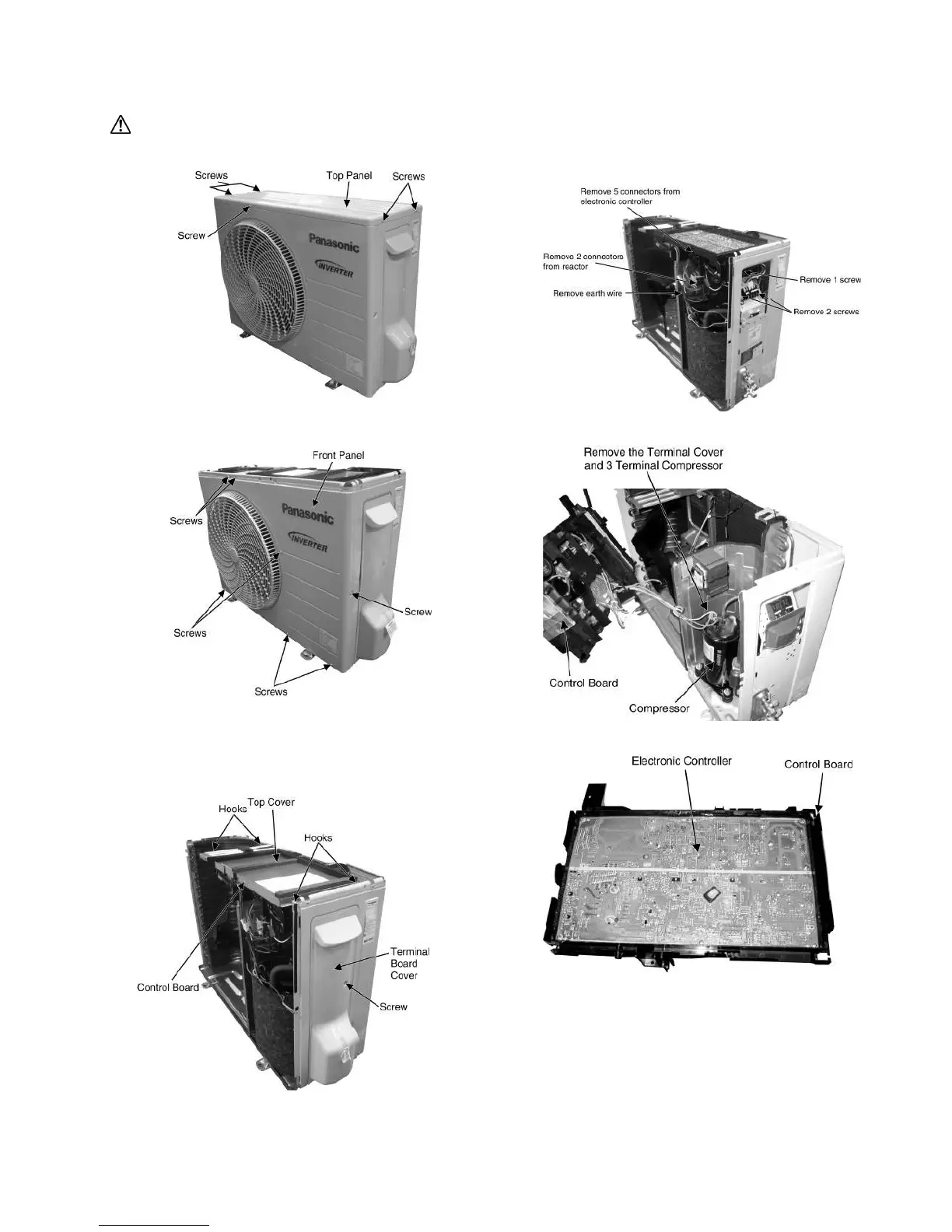

Fig.1
2 Remove the 8 screws of the Front Panel.
Fig.2
3 Remove the screw of the Terminal Board
Cover.
4 Remove the Top Cover of the Control Board
by 4 hooks.
Fig.3
5 Remove the Control Board as follows:
Fig.4
Fig.5
Fig.6
