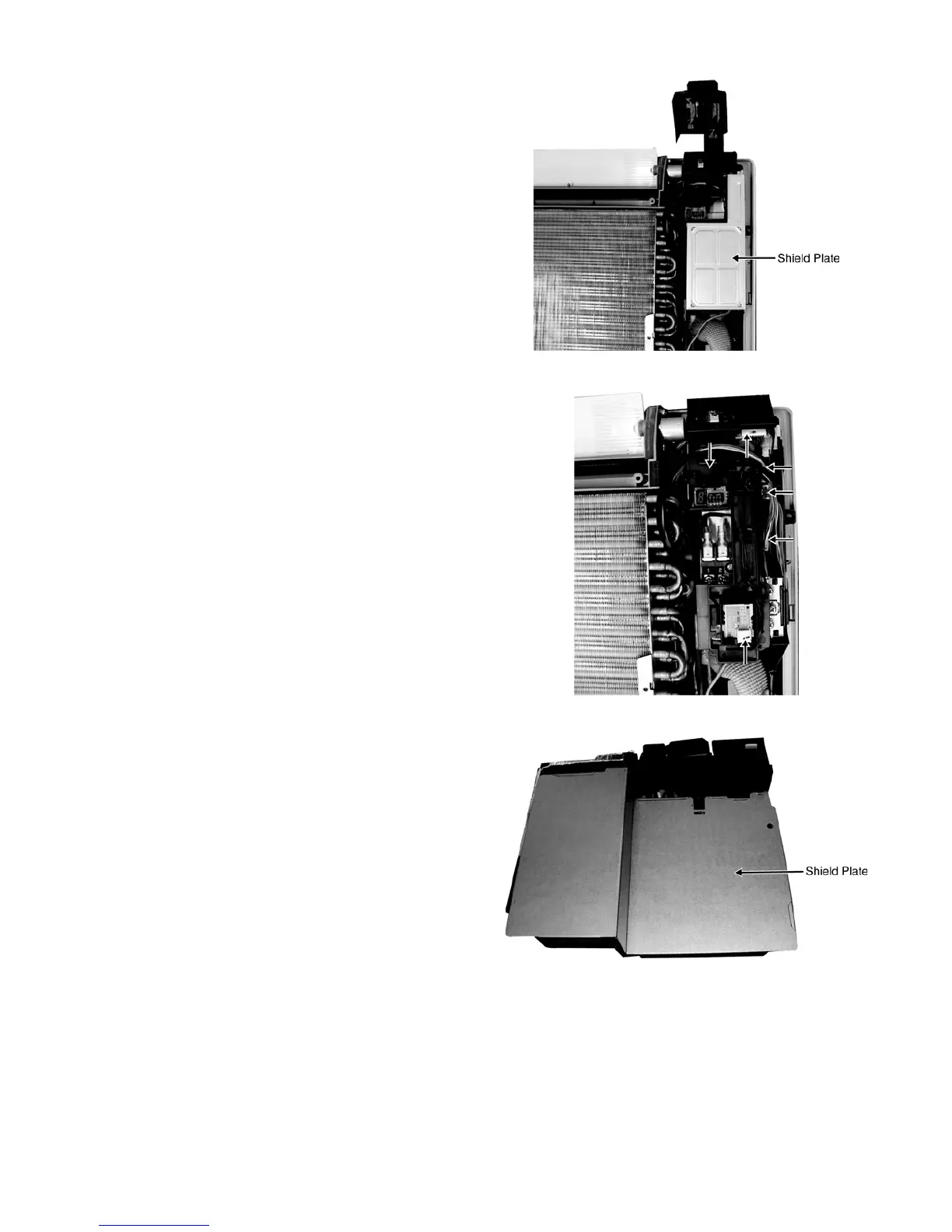

c. Raise up the resin case, remove the shield plate.
d. Remove the connectors which connected to PCB.
(6 places)
Remove the Pipe Temperature Sensor from the heat
exchanger.
e. Remove the Shield plate in the Control Board Casing.
Fig. 4
Fig. 5
Fig. 6
