13 Servicing Information

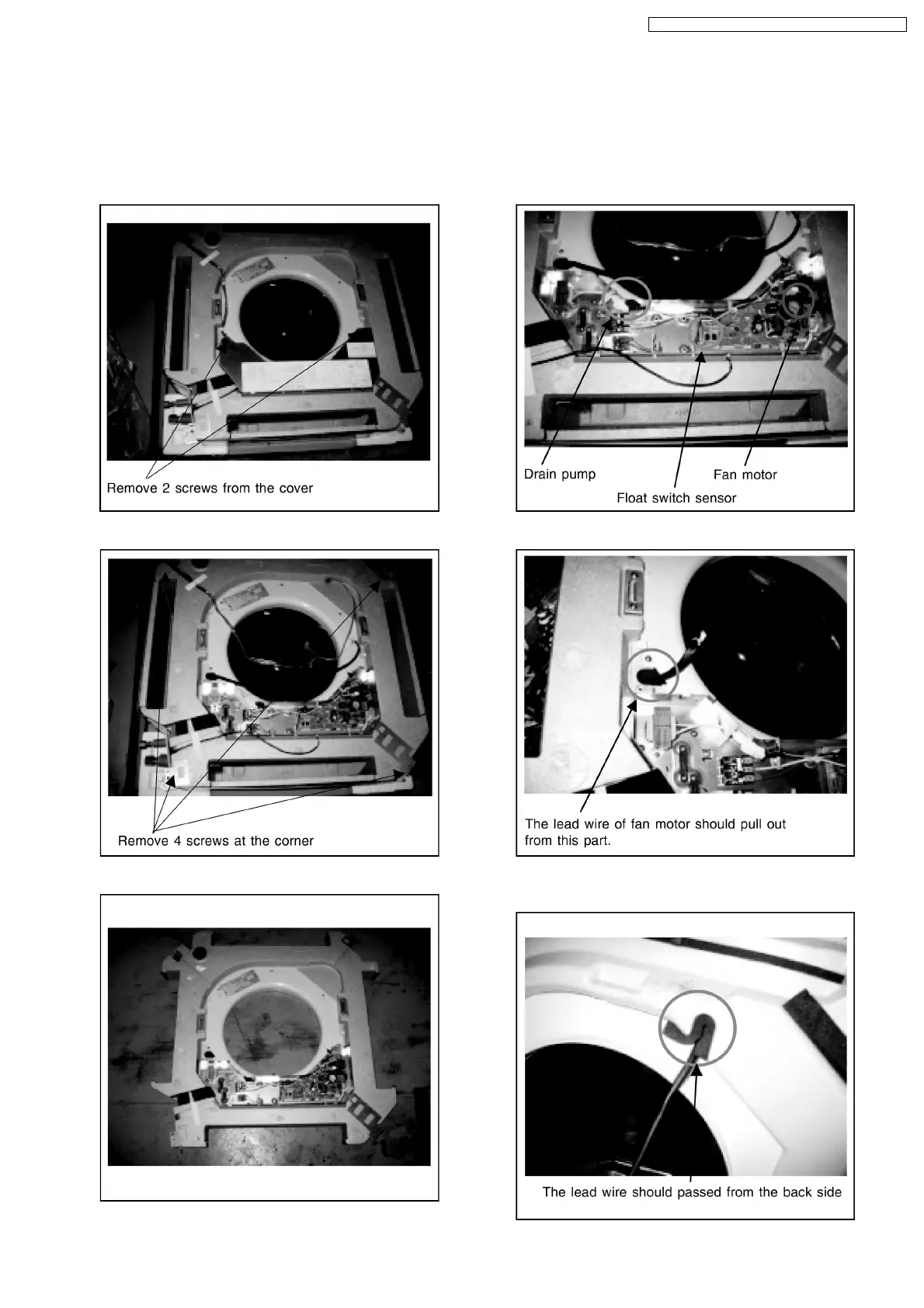

1. Remove cover from control board
3. Remove screw at drain pan.
5. Make the condition as below photo.
2. Remove each lead wire.
4. Pull out lead wire of fan motor from drain pan.
6. When install back drain pan, make sure the lead wire of fan
motor is pass through the hole of drain pan as shown below.
13.1. Caution when servicing of fan and fan motor
* Do not remove orifice and control board from the drain pan when servicing fan & fan motor.
87
