88
Figure 9
Figure 10

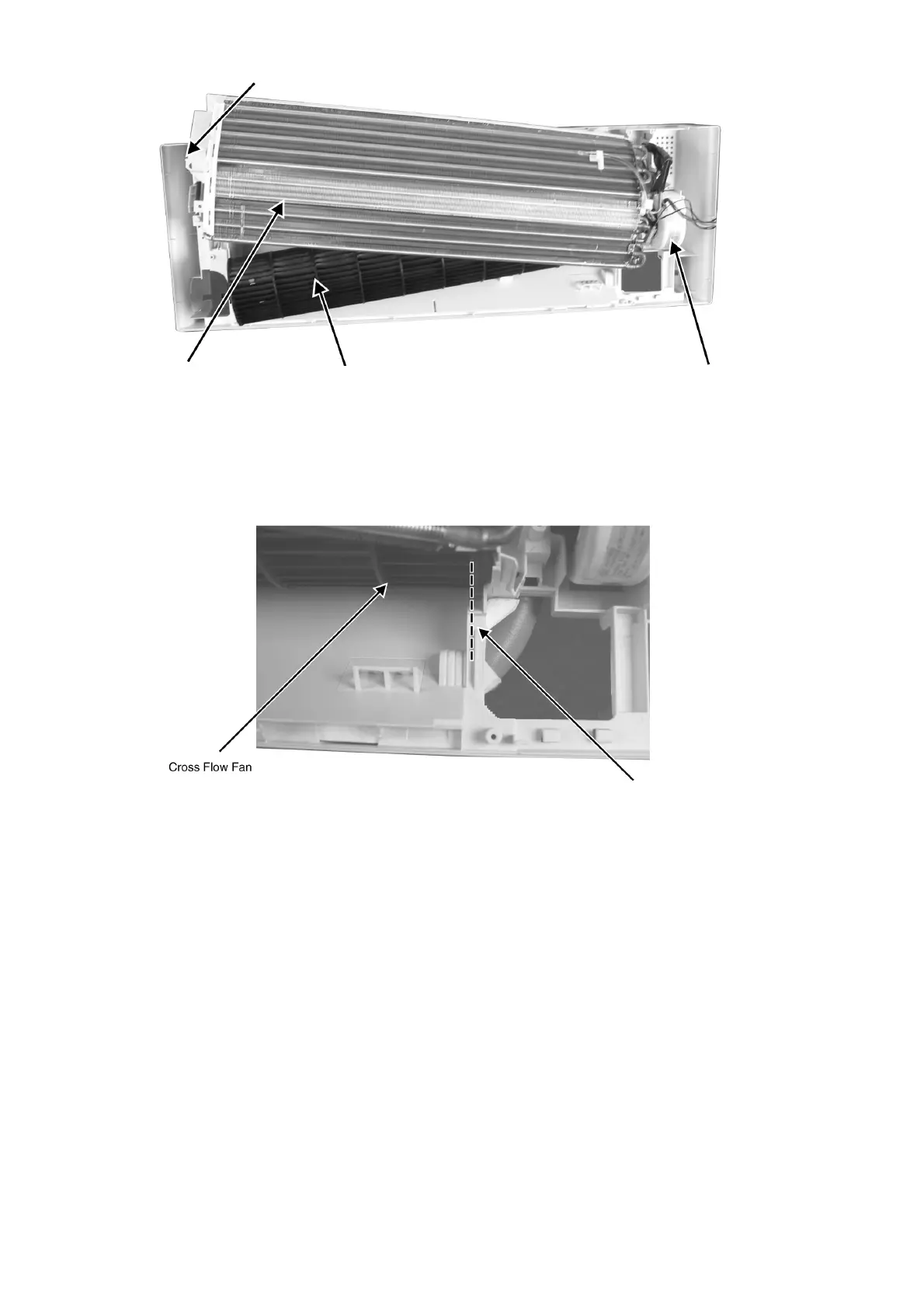

17. Push the holdfast to the left and lift up the evaporator.
19. Fan motor can be removed after the
removal of cross flow fan.
Reminder: To reinstall the fan motor, adjust
the fan motor connector to 45° towards you
before fixing control board.
18. Remove the cross flow fan from the unit by
pulling it to the left and downward.
Evaporator
Reminder: To reinstall the cross flow
fan, ensure cross flow fan is in line as
shown in figure 10
To Next Page
