Panasonic CW-C241SE - Dimensions; Wiring Diagram

CW-C241SE

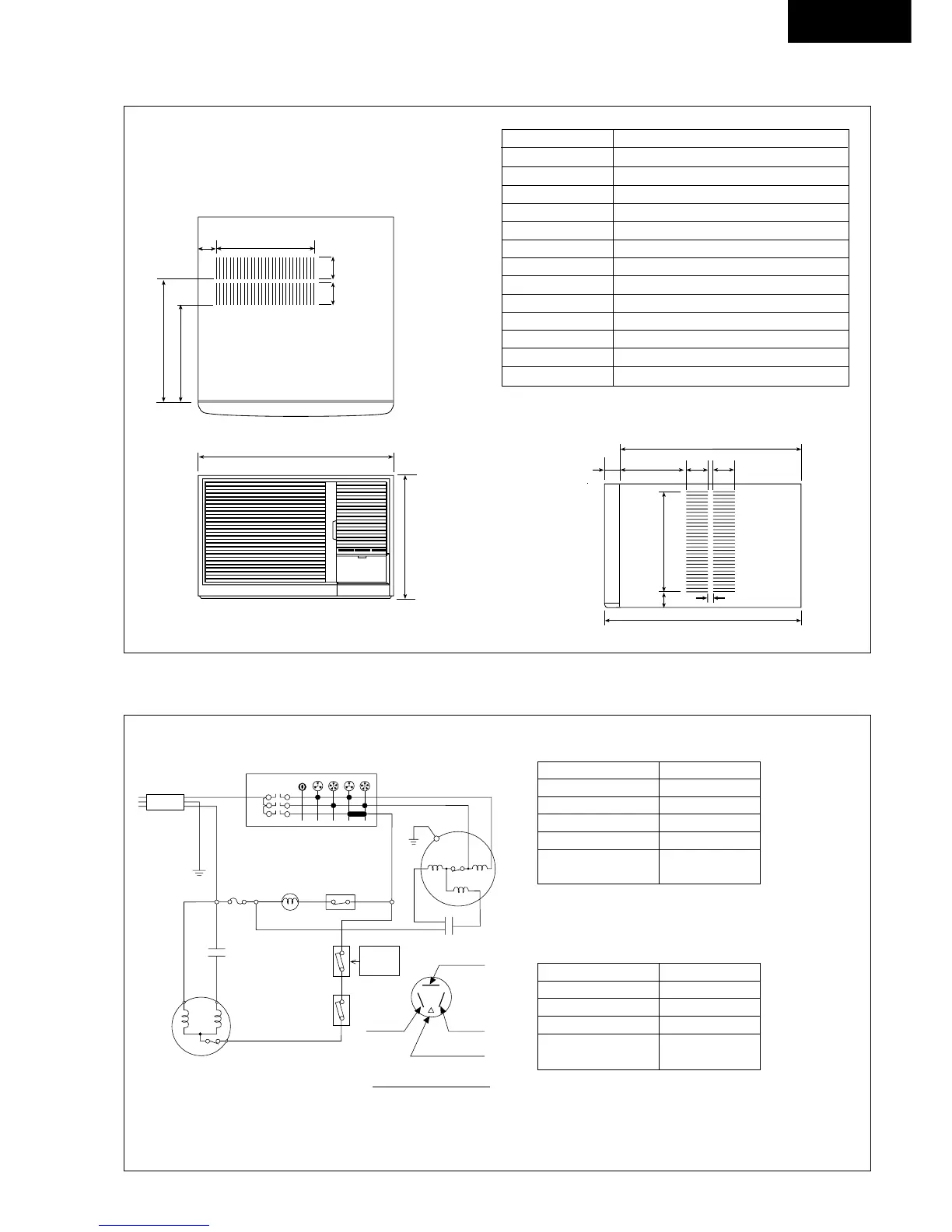

DIMENSIONS
– 2 –
ITEM CW-C241SE
A Width 26" (660)
B Height 16 – 7/8" (428)
C Depth 28 – 3/4" (730)
D 26 – 25/32" (680)
E 1 – 31/32" (50)
F 11 – 13/16" (300)
G 2 – 3/64" (75)
I 3/64" (15)
J 10 – 13/16" (288)
K 15 – 11/32" (389.6)
L 12 – 17/32" (318)
M 3 – 5/32" (80)
N 3 – 35/64" (90)
Unit : (mm)
K
N
N
J
B
A
FRONT VIEW
TOP VIEW
M
L
Panasonic
E
F
G
2-3/32"
(53)
13-25/32"
(350)
C
I
SIDE VIEW
D
G
WIRING DIAGRAM
ORANGE
YELLOW
Resistance of Fan Motor windings and rated Capacitor
Resistance of Compressor windings and rated Capacitor
POWER SUPPLY CORD
1Ø, 230-220V, 50Hz
COMPRESSOR
1
2
1
2
4
0
MAIN SWITCH
AIR SWING
SELECT SWITCH
AIR SWING
MOTOR
YELLOW/GREEN
3
BROWN
YELLOW/GREEN
BLUE
FUSE (5A)
1 P
BLUE
BLUE
BLACK
WHITE
WHITE
BLACK
BLUE BLUE
WHITE
RED
BLUE
CAPACITOR
RED
BLUE
R S
C
YELLOW
CAPACITOR
THERMOSTAT
(LOW TEMP.)
THERMOSTAT
(TEP. CONTROL)
FOR MODEL
CW-C241SE
ONLY
COMP. TERMINAL
YELLOW (C)
BLUE (R)
RED (S)
TRADE MARK
BROWN
FAN MOTOR
CW-C241SE
Connection 2JS438D4AA02
C-R 0.95
C-S 4.39
CAPACITOR
CWA31539
45µF/370VAC
CW-C241SE
Connection CWA92125
BLUE–YELLOW 18.8
YELLOW–ORANGE 6.25
RED–YELLOW 51.5
CAPACITOR
CWA31244
3µF/400VAC
* Resistance at 20°C of Ambient Temp.
