CW-C241SE
– 3 –
* Indoor temp. at 27°C (DB), 19°C (WB) and
Outdoor at 35°C , 24°C.

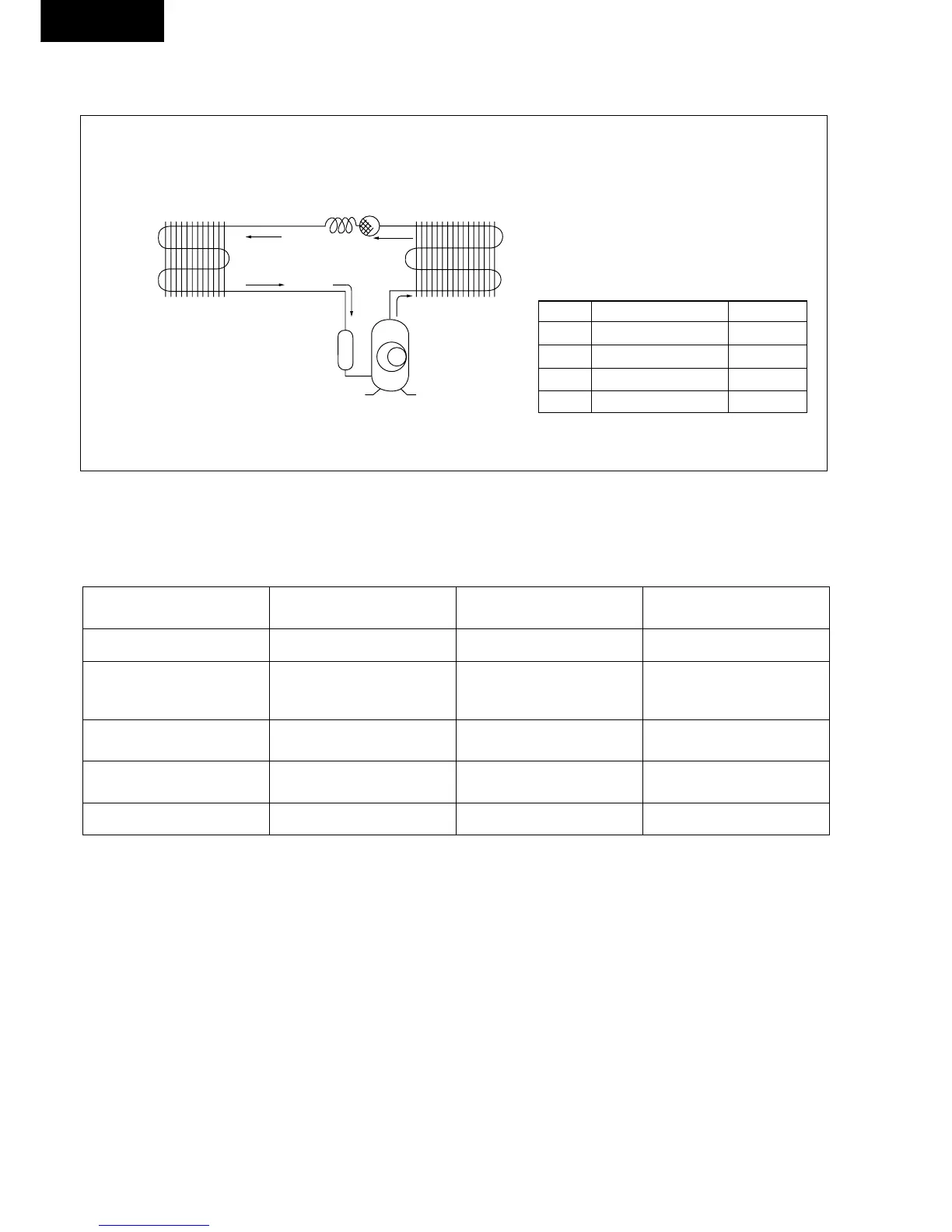

REFRIGERATION CYCLE DIAGRAM
2
6
1
BC
A
4
3
5
D
ITEM PRESSURE (kg/cm
2
) TEMP. (°C)
A 17.5 ~ 21.0 75 ~ 90
B 17.2 ~ 20.7 38 ~ 45
C 5.5 ~ 6.1 7 ~ 15
D 5.3 ~ 5.8 5 ~ 15
1 Compressor
2 Condenser
3 Strainer
4 Capillary Tube
5 Evaporator
6 Accumulator
AIR CONDITIONER PERFORMANCE EVALUATION
SUCTION & DISCHARGE AIR
CURRENT DETERMINATION REMEDY
TEMPERATURE DIFFERENCE
8°C and over as specified nothing wrong • none
8°C and over higher than specified nothing wrong, outdoor • improve heat radiation
temperature is too high, heat
radiation is not efficient.
under 8°C higher than specified something is preventing heat • excessive amount of refrigerant
radiation • improve heat radiation
under 8°C lower than specified leakage of refrigerant or • locate repair leak
refrigerant system is blocked • flush refrigeration cycle
under 8°C higher than specified by 50% compressor defect • replace the compressor
* Note: Room air humidity is relatively higher, the Temp. difference will be smaller.
