8
RQT9075
STEP
1
Connection
Before connection, turn off all equipment and read the appropriate operating instructions.
Refer to “Additional connections” ( 63) for connection using other terminals and connection with other equipment.
When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This unit consumes a small amount of power, even when it is turned off
[approx. 2 W (Power Save mode)]
When “Power Save” is set to “On”, the “Quick Start” function does not work.

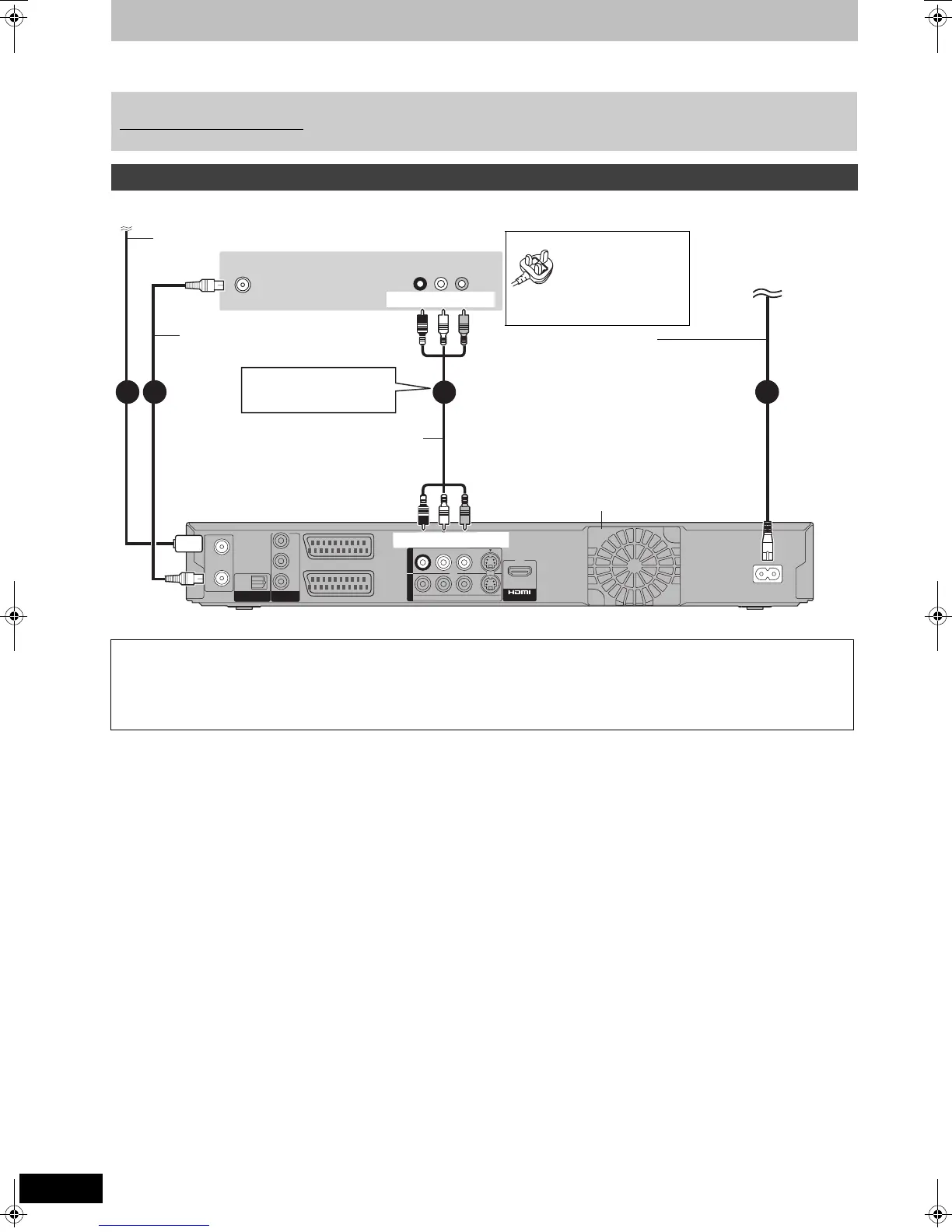

Connecting a television
Connecting to a television with 21-pin Scart terminal
You can also connect with the AV1 terminal on this unit using the 21-pin Scart cable.
If your television is equipped with RGB input capability, by connecting with a fully wired 21-pin Scart cable you can see video using RGB
output on this unit.
[Required]setting]
“AV1 Output” in the Setup menu ( 60)
RF
RF
IN
IN
RF
RF
OUT
OUT
AV2
(
EXT
)
AV1
(
TV
)
OPTICAL
DIGI
DIGIT
AL
AL A
UDIO OU
UDIO OUT
(PCM/BITSTREAM)
(PCM/BITSTREAM)
COMPONENT
COMPONENT
VIDEO OUT
VIDEO OUT
S VIDEOVIDEO
R-AUDIO-L
PR
PB
Y
AC IN
OUT
OUTA
V4 I
V4 IN
A
A
V OU
V OU
T
T
VHF/UHF
RF IN
1 2
4
3
AUDIO IN
R L
VIDEO IN
To the aerial
Television’s rear panel
Aerial cable
RF coaxial cable
(included)
This unit’s rear panel
To household mains socket
[For]Australia]and]N.Z.]
(AC 220 to 240 V, 50 Hz)
[For]Asia]and]Middle]East]
(AC 220 to 240 V, 50/60 Hz)
AC mains lead
(included)
Connect only after all other
connections are complete.
Cooling fan
Red White Yellow
Red White Yellow
[For\Saudi\Arabia[
BE SURE TO
READ THE
CAUTION FOR
THE AC MAINS
LEAD ON PAGE
2 BEFORE
CONNECTION.
Audio/Video cable
(included)
[For]Middle]East]
Use the AC mains lead that matches
the socket for the area you live in.
[For]Asia]
AC mains lead with a label is for
Thailand.
AC mains lead without a label is for
areas other than Thailand.
Other connections
( 9, 63)
