13
RQT9011
1 Standby/on switch (Í/I) (➡ 20)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
2 Disc tray (➡ 26, 36)
3 Connection for digital video (DV) camcorder (➡ 60)
4 USB port (➡ below)
5 Connection for VCR, camcorder etc. (➡ 16, 60)
6 Display (➡ below)
7 Channel select (➡ 26)
8 Stop (➡ 26, 37)
9 Start play (➡ 36)
: Start recording (➡ 26)/Specify a time to stop recording (➡ 28)
; Open/close disc tray (➡ 26, 36)
< Remote control signal sensor
Rear panel terminals (➡ 14–17)
You can insert the USB memory device directly into the USB port.
Preparation
Before inserting any USB memory device to this unit, ensure that the data stored therein has been backed up.
4 Timer recording indicator
5 Disc indicator
Lights when a disc that is supported by this unit is inserted in the
tray.
6 Drive (HDD or DVD) indicator
Lights when the HDD or DVD drive is selected.
7 Main display section indicator
8 Recording mode indicator
≥Indicators for functions that this unit does not support will not light.

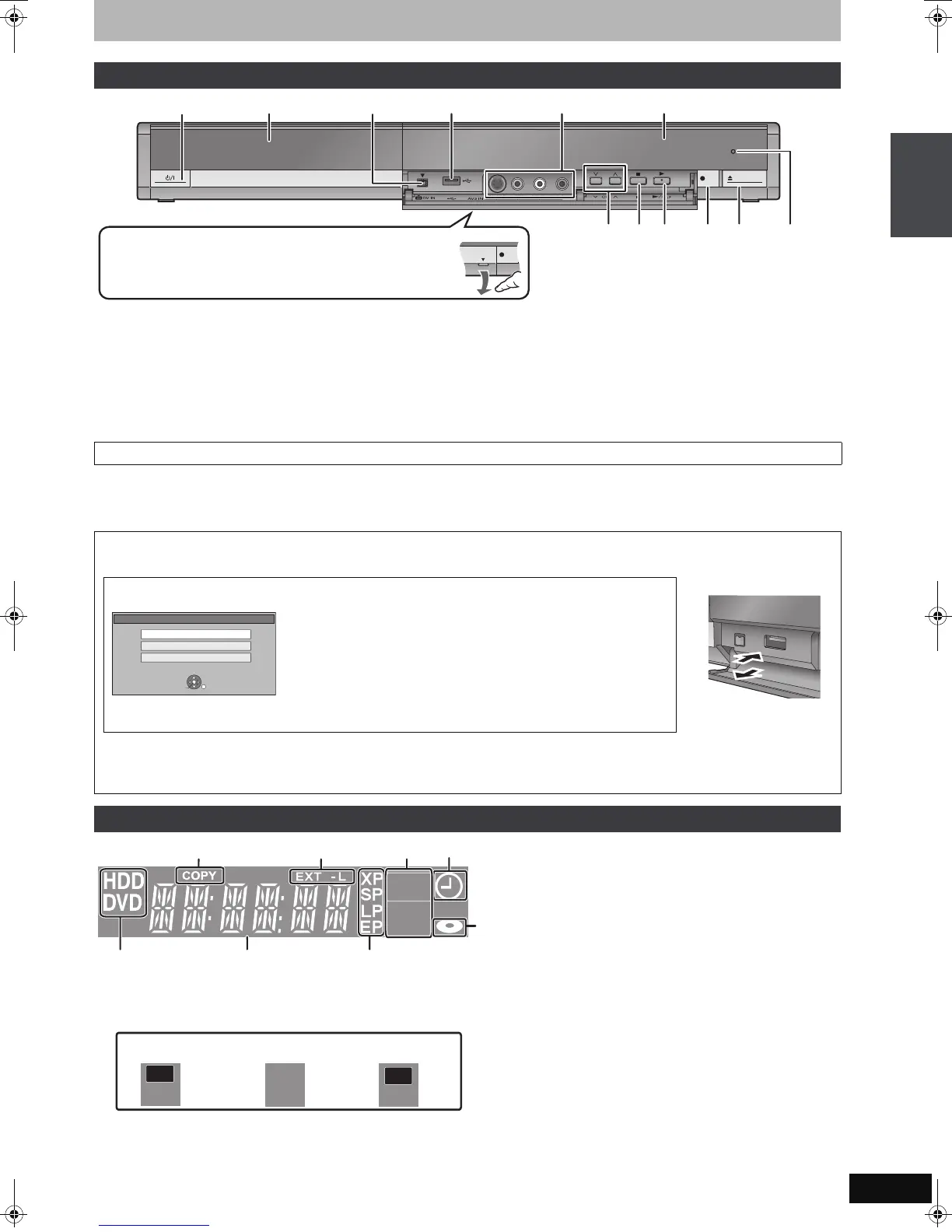

Main unit
REC
OPEN
/
CLOSE
1
2
4
5
6
7
8
9
:
;
<
3
Opening the front panel
Place your finger on the protruding section below the 4 and
press down to flip open the front panel.
Inserting, removing the USB memory device
Inserting the USB memory device
Check the orientation of the USB connector and insert it straight in.
Removing the USB memory device
Complete all USB memory-related operations and pull the USB memory straight out.
≥If a USB memory being accessed is pulled out, then the data may be damaged.
The unit’s display
“USB” appears on the unit’s display and the menu (➡ below) is automatically displayed, when a compatible
USB memory device is inserted while stopped.
Press [3, 4] to select the item and press [OK].
You can proceed to each operation screen.
≥“Play MP3”: “To play MP3 files on the USB memory” (➡ 41)
≥“Play Pictures (JPEG)”: “To play still pictures on the USB memory”
(➡ 42)
≥“Copy Pictures (JPEG)”: “Copying all the still pictures on the USB
memory—Copy All Pictures” (➡ 59)
USB device
Copy Pictures (JPEG)
Play Pictures (JPEG)
Play MP3
OK
RETURN
SELECT
Compatible USB
memory device
PLAY
PLAY
PLAY
REC
REC
REC
1
2
4
3
8
5
6
7
1 Copying indicator
Lights during copy.
2 Linked timer recordings with external equipment indicator
Recording
indicator
Playback
indicator
Recording/
Playback indicator
3
Control reference guide
