When connected to an HDMI compatible unit, an uncompressed digital audio and video signal is transmitted. You can enjoy high quality, digital
video and audio with just one cord. When connecting to an HDMI-compatible HDTV (High Definition Television), this unit’s output can be switched
to 1080p, 1080i or 720p HD video.
≥Please use the HDMI cables 5.0 meters or less.
[Note]
≥If you are connecting to a TV that is only compatible with 2 channel audio output, audio with 3 channels or more will be down mixed (➡ 84) and
output as 2 channels, even if connecting with an HDMI cable. (Some discs cannot be down mixed.)
≥You cannot connect this unit to DVI devices that are incompatible with HDCP.
For units compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection that are equipped with a digital DVI input
terminal (PC monitors, etc.):
Depending on the unit, images may not display properly or at all when connecting with a DVI/HDMI switching cable. (Audio cannot be output.)
Connecting with an HDMI (High Definition Multimedia Interface) terminal
Regarding VIERA Link “HDAVI Control
TM
” function
When connecting with a Panasonic TV (VIERA) or a receiver equipped with the “HDAVI Control” function, linked operations would be
possible. [➡ 18, Linked operations with the TV (VIERA Link “HDAVI Control
TM
”/Q Link)]
≥Non-HDMI-compliant cables cannot be utilised.
≥It is recommended that you use Panasonic’s HDMI cable.
Recommended part number: RP-CDHG15 (1.5 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m), etc.

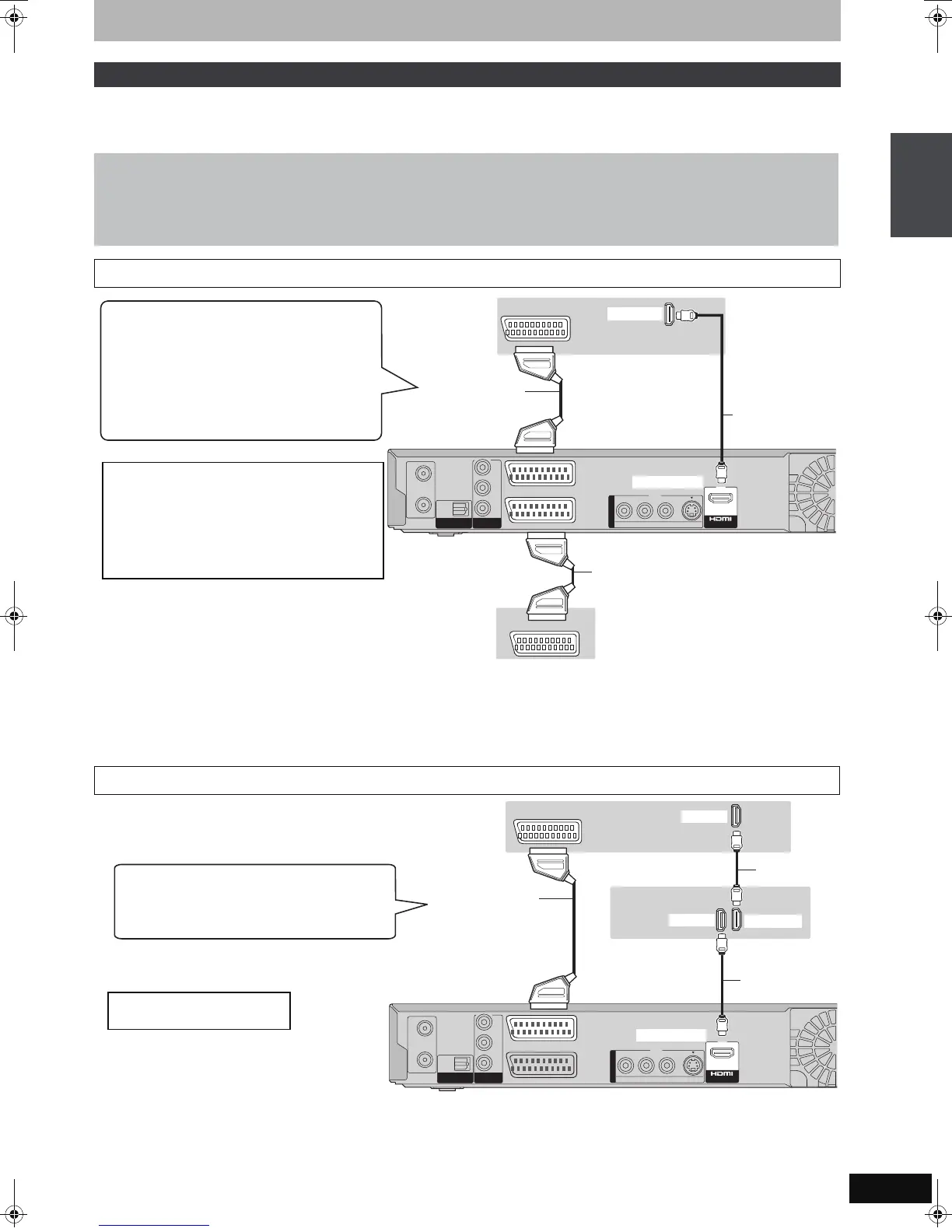

Connecting with an HDMI compatible television
Connecting with an HDMI compatible television and receiver
RF
IN
RF
OUT
AV2
(
DECODER/EXT
)
AV1
(
TV
)
OPTICAL
DIGI
AL
UDIO OU
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
S VIDEOVIDEO
R-AUDIO-L
PR
PB
Y
OUT
A
V OU
T
AV
AV
HDMI AV OUT
HDMI IN
Fully wired
21-pin Scart cable
21-pin Scart cable
This unit’s rear panel
Digital/satellite receiver or
decoder’s rear panel
HDMI cable
Television’s
rear panel
Connecting with a Panasonic TV (VIERA)
If the 21-pin Scart cable is connected, the following
functions are available.
≥Direct TV Recording (➡ 18)
≥Watching pictures from digital/satellite receiver or
decoder
(In this case, make sure to switch the
television input to “AV”.)
[Required]setting]
≥Set “Digital Audio Output” to “HDMI and Optical”
(➡ 70).
(The default setting is “HDMI and Optical”.)
RF
IN
RF
OUT
AV2
(
DECODER/EXT
)
AV1
(
TV
)
OPTICAL
DIGI
AL
UDIO OU
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
S VIDEOVIDEO
R-AUDIO-L
PR
PB
Y
OUT
A
V OU
T
AV
HDMI IN
HDMI IN
HDMI OUT
HDMI AV OUT
This unit’s rear panel
HDMI cable
HDMI cable
Fully wired
21-pin Scart cable
Television’s rear panel
Receiver’s rear
panel
Connecting with a Panasonic TV (VIERA)
➡ above
[Required]setting] ➡ above
STEP 1 Connection
