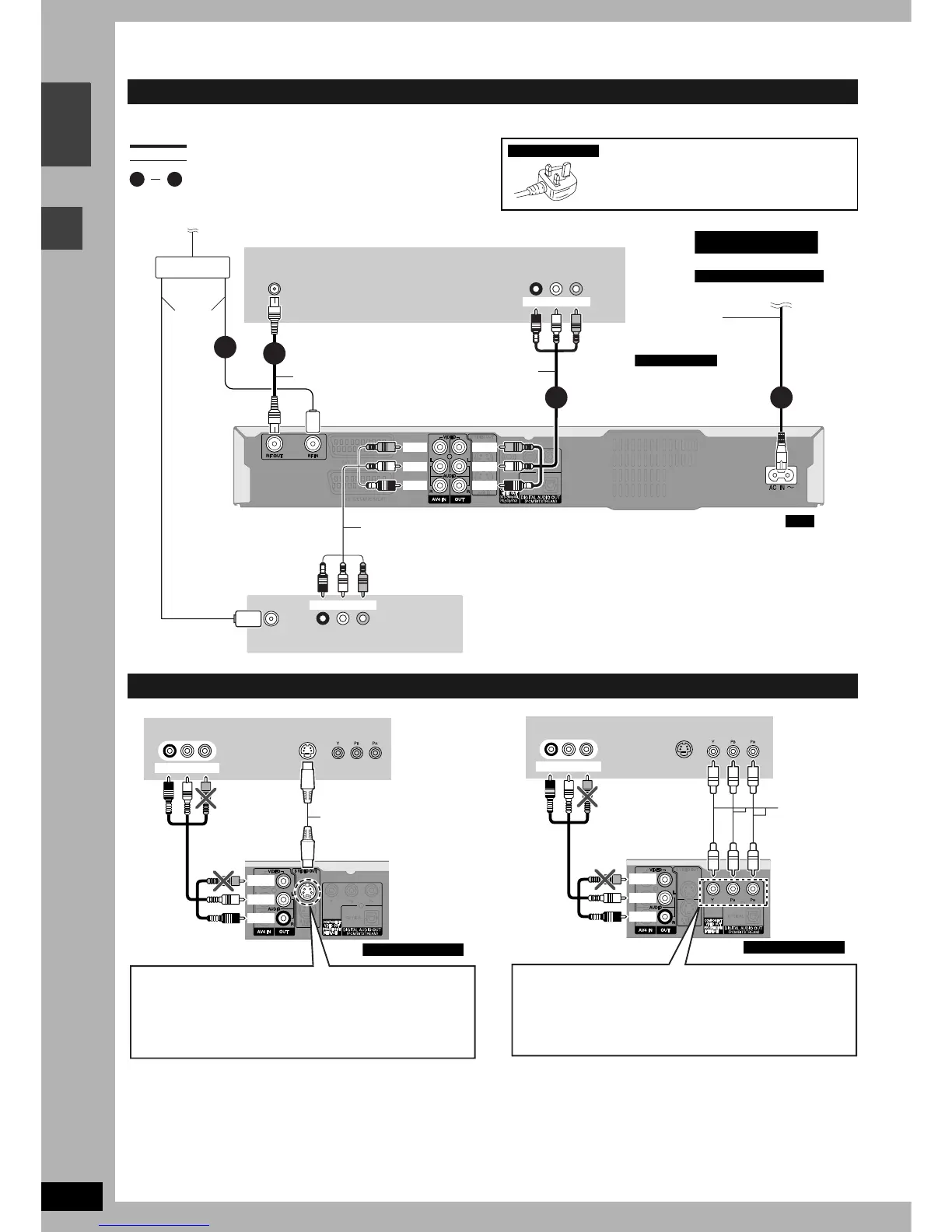

STEP 1 Connection
Connecting to the television using the 21-pin Scart cables (➔ page 7)
(➔ page 9, Note to owners of progressive compatible PAL
system televisions)
■ Component video output
Component signal outputs the colour difference signals (PB/PR) and luminance signal (Y) separately in order to achieve high fidelity in
reproducing colours. If the television is compatible with progressive output, a high quality picture can be output because this unit’s component
video output terminal outputs a progressive output signal (➔ page 42).
Connecting a television with AUDIO/VIDEO terminals and VCR
Connecting a television with S VIDEO or COMPONENT VIDEO terminals
VHF/UHF
RF IN
VHF/UHF
RF IN
R L
AUDIO OUT VIDEO OUT
AUDIO IN
R L
VIDEO IN
1
2
3
4
Audio/Video cable
This unit’s
rear panel
BE SURE TO READ THE CAUTION
FOR THE AC MAINS LEAD ON PAGE 2
BEFORE CONNECTION.
indicates included accessories.
indicates accessories not included.
are required connections. Connect in the numbered order.
To the aerial
Splitter
Aerial
cable
Television’s rear panel
Red White Yellow
RF coaxial cable
AC mains lead
Connect only after all other
connections are complete.
• Use the AC mains lead
that matches the socket
for the area you live in.
For Middle East
Audio/Video cable
VCR’s rear panel
Red
White
Yel low
Red
White
Yel low
Red White Yellow
Use a splitter if you also
want to connect the
aerial to your VCR.
For Saudi Arabia
1
4
To household mains socket
(AC 220-240 V, 50 Hz)
(AC 220-240 V, 50 Hz/60 Hz)
For Continental Europe,
Australia and N.Z.
For Asia and Middle East
e.g., Asia
AUDIO IN
R L
VIDEO
IN
COMPONENT
VIDEO IN
S VIDEO
IN
Television’s
rear panel
Red White Yellow
Audio/Video
cable
S Video cable
This unit’s
rear panel
S VIDEO OUT terminal
Connect to S VIDEO IN terminal on the television through
a S Video cable.
The S VIDEO OUT terminal achieves a more vivid picture than
the VIDEO OUT terminal. (Actual results depend on the
television.)
Red
White
Yel low
e.g., Continental Europe
AUDIO IN
R L
VIDEO
IN
COMPONENT
VIDEO IN
S VIDEO
IN
Television’s
rear panel
Red White Yellow
Audio/Video
cable
Video cable
This unit’s
rear panel
COMPONENT VIDEO OUT terminal
Connect to COMPONENT VIDEO IN terminals on the television
through a component video cable. These terminals can be used
for either interlace or progressive output (➔ page 42) and provide
a purer picture than the S VIDEO OUT terminal.
• Connect to terminals of the same colour.
Red
White
Yel low
e.g., Continental Europe
