Getting started
VQT4C72
14
Connection
Connect to terminals of the same colour.
Connect to terminals of the same colour.
Do not connect video signals through a video recorder.
Due to copy guard protection the picture may not be
displayed properly.
VIERA Link function is possible by connecting to a TV or
amplifier/receiver compatible with VIERA Link.

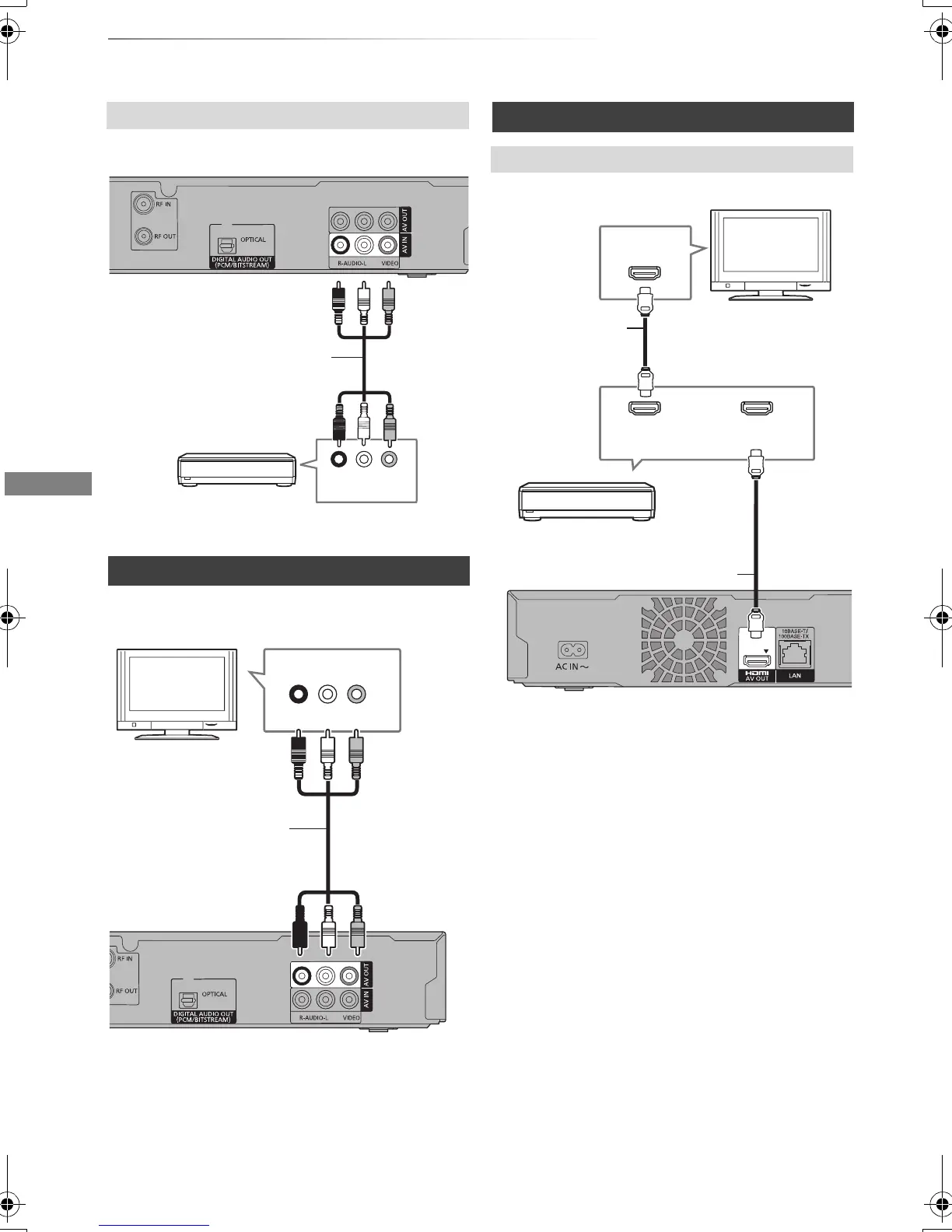

Connect the Set Top Box or video equipment
Other TV connection
AUDIO OUT VIDEO OUT
RL
Audio/Video cable
(supplied)
Set Top Box or VCR
AUDIO IN VIDEO IN
LR
Audio/Video cable
(supplied)
TV
Amplifier/receiver connections
HDMI terminal
HDMI IN
HDMI IN
HDMI OUT
HDMI cable
TV
HDMI cable
Amplifier/receiver
