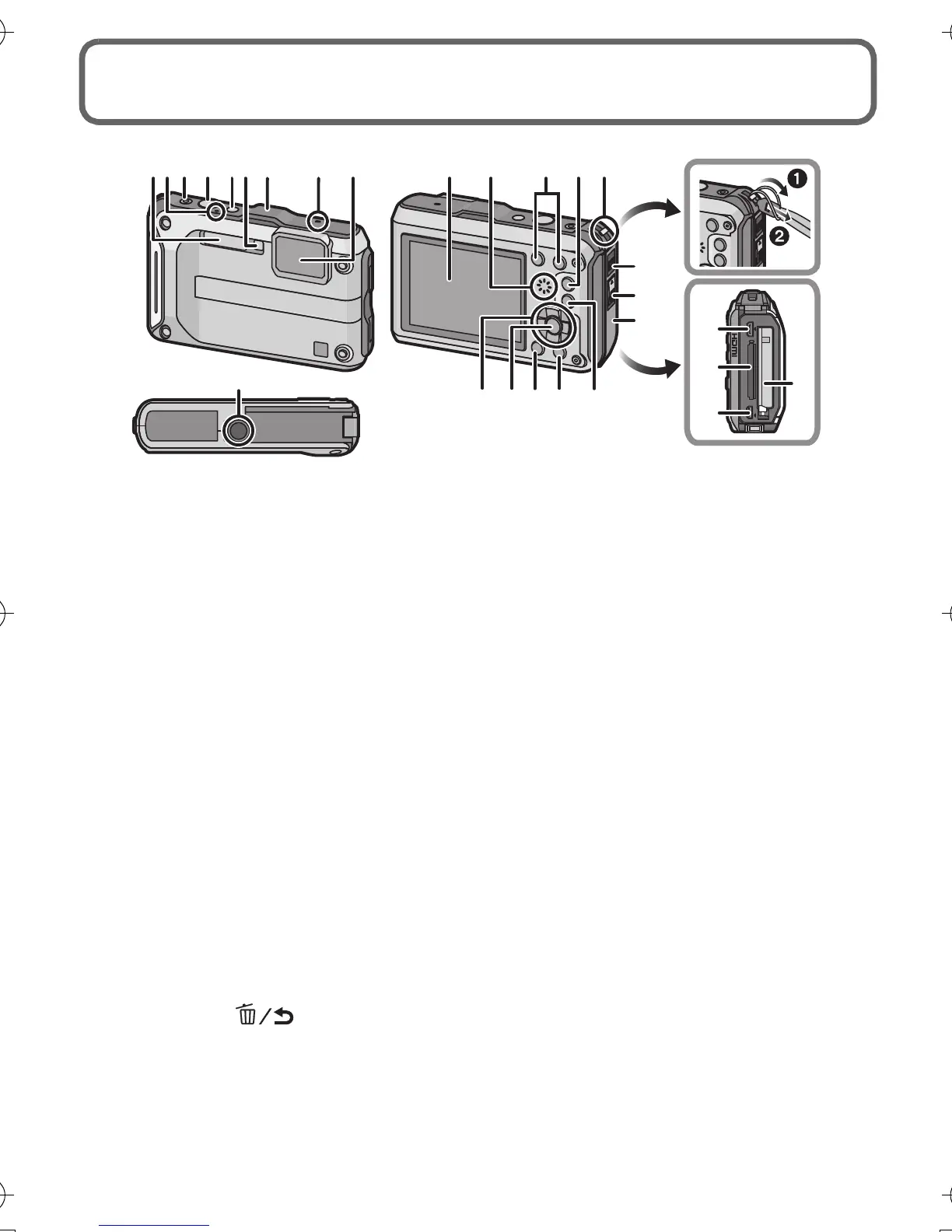

Names and Functions of Main Parts
1Flash
2 GPS status indicator
3 Motion picture button
4 Shutter button
5 Camera [ON/OFF] button
6 Self-timer indicator/
AF Assist Lamp/
LED light
7 GPS antenna
8 Microphone
9Lens
10 LCD monitor
11 Speaker
12 Zoom button
13 [(] (Playback) button
14 Strap eyelet
• Be sure to attach the strap when
using the camera to ensure that you
will not drop it.
15 Release lever
16 [LOCK] switch
17 Side door
18 [MODE] button
19 [Q.MENU]/[ ] (Delete/Cancel)
button
20 [DISP.] button
21 [MENU/SET] button
22 Cursor buttons
23 Tripod receptacle
24 [HDMI] socket
• Do not connect with any cable other
than an HDMI micro cable
(RP-CHEU15: optional). Doing so
may cause malfunction.
25 Card slot
26 [AV OUT/DIGITAL] socket
27 Battery slot
• When using an AC adaptor, ensure
that the Panasonic DC coupler
(DMW-DCC4: optional) and AC
adaptor (DMW-AC5E: optional) are
used.
• Always use a genuine Panasonic AC
adaptor (DMW-AC5E: optional).
• When using an AC adaptor, use the
AC cable supplied with the AC
adaptor.
