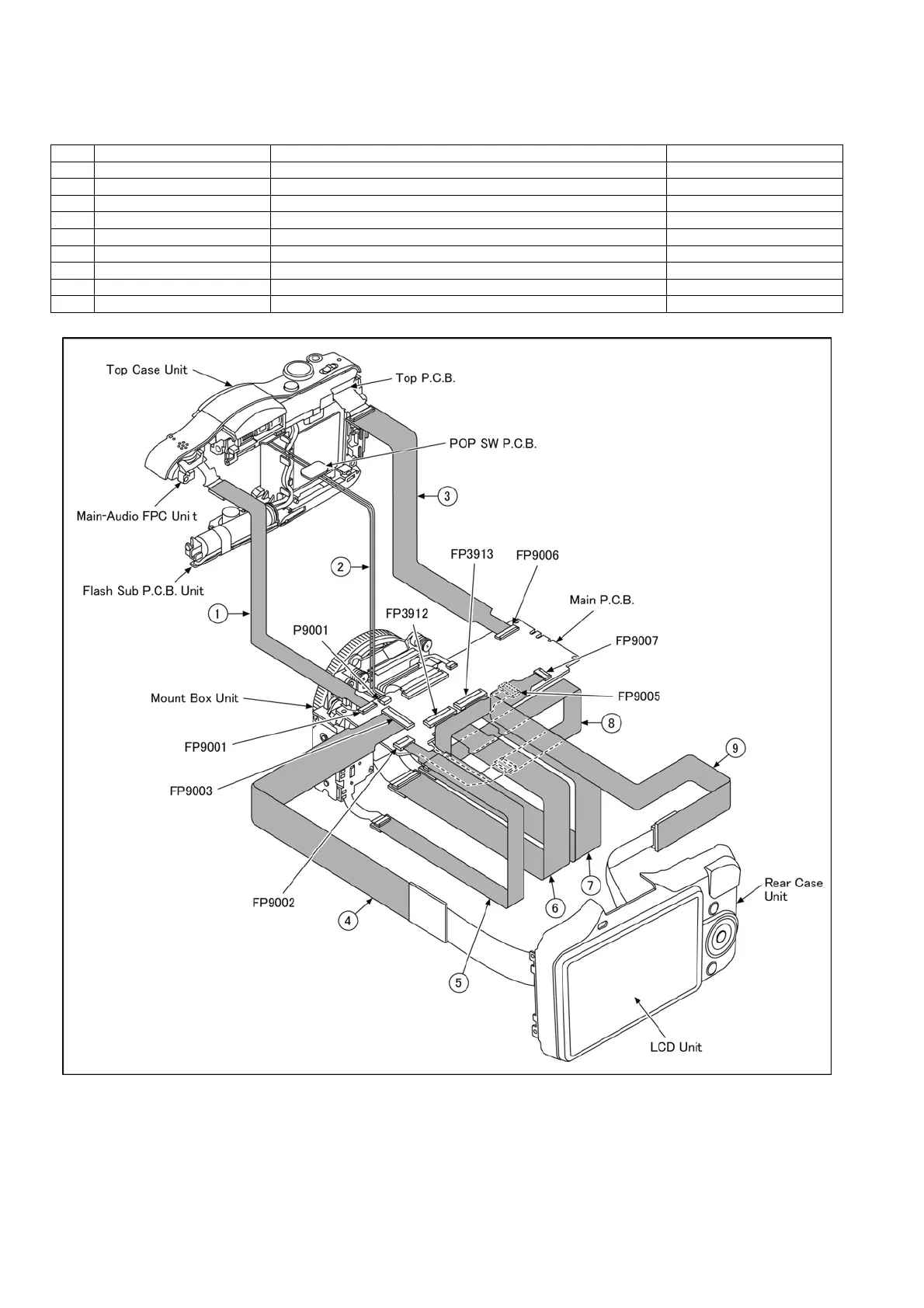

8.3. Service Position
This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing.
Table S1 Extension Cable List
CAUTION-1. (When servicing FLASH SUB P.C.B. UNIT)
1. Be sure to discharge the E.capacitor on FLASH SUB P.C.B. UNIT.
Refer to “HOW TO DISCHARGE THE E.CAPACITOR ON FLASH SUB P.C.B. UNIT”.
The capacitor voltage is not lowered soon even if the AC Cord is unplugged or the battery is removed.
2. Be careful of the high voltage circuit on FLASH SUB P.C.B. UNIT.
3. DO NOT allow other parts to touch the high voltage circuit on FLASH SUB P.C.B. UNIT.
No. Parts No. Connection Form
1 VFK1582A1225 FP9001(MAIN) - FT7001(MAIN-AUDIO FPC UNIT) 12pin 0.5 FFC
2 VFK1576DSC04 P9001(MAIN) - POP SW P.C.B. 2PIN CONNECTOR
3 VFK1950 FP9006(MAIN) - FP8001(TOP) 33pin 0.3 FFC
4 VFK2024 FP9003(MAIN) - LCD UNIT 51pin 0.3 FFC
5 RFKZ0583 FP9002(MAIN) - MOUNT BOX UNIT(SHUTTER I/F) 19pin 0.3 FFC
6 RFKZ0477 FP3912(MAIN) - MOUNT BOX UNIT 45pin 0.3 FFC
7 RFKZ0477 FP3913(MAIN) - MOUNT BOX UNIT 45pin 0.3 FFC
8 RFKZ0564 FP9005(MAIN) - MOUNT BOX UNIT(LENS I/F) 23pin 0.3 FFC
9 VFK1582A1225 FP9007(MAIN) - REAR OPERATION UNIT 12pin 0.5 FFC
