S3.4. Main Audio FPC Schematic Diagram
A
B
C
D
E
F
G
654321

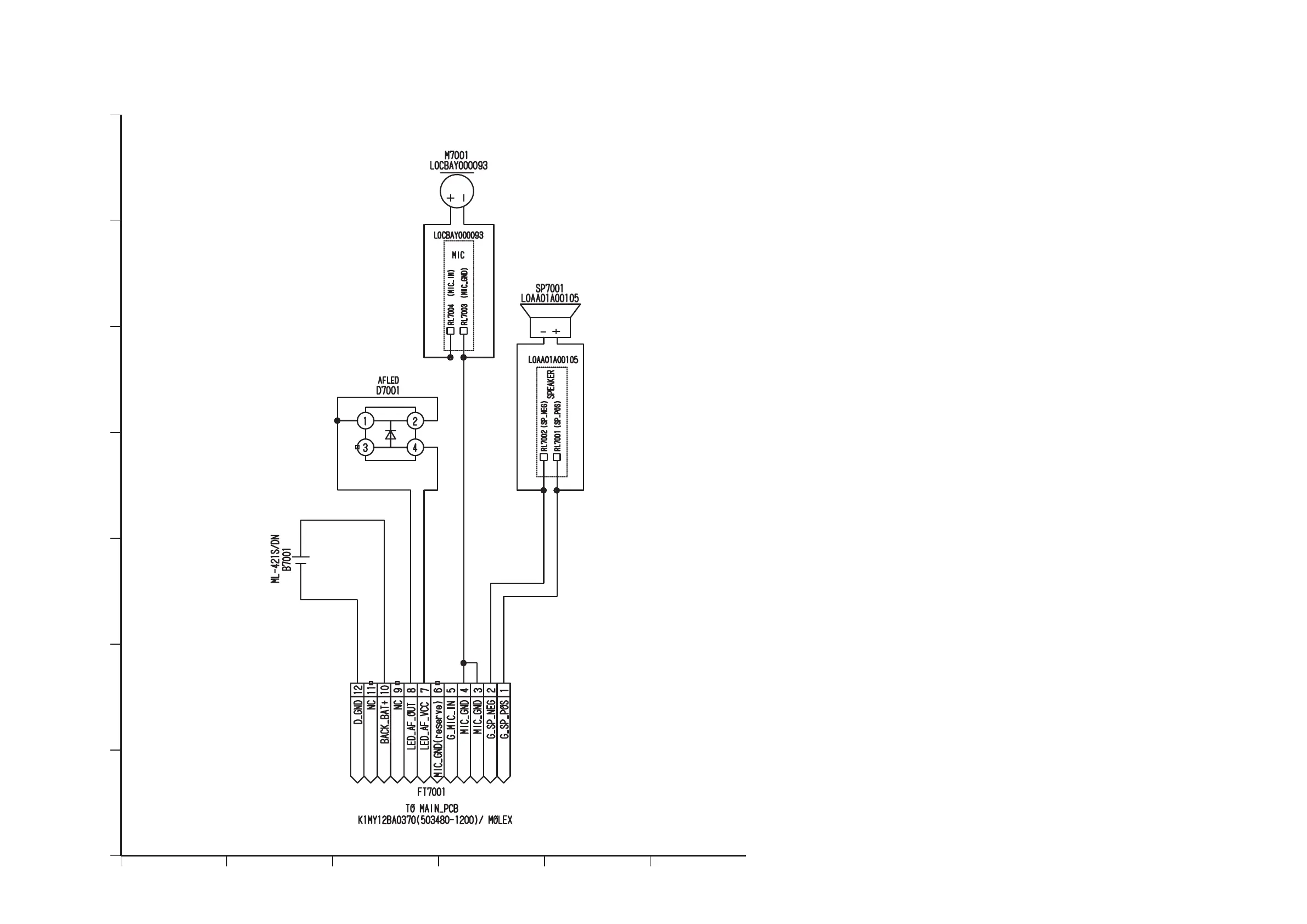

DMC-GF3 MAIN AUDIO FPC SCHEMATIC DIAGRAM
