Panasonic DMC-GF3CPP - Page 32

32

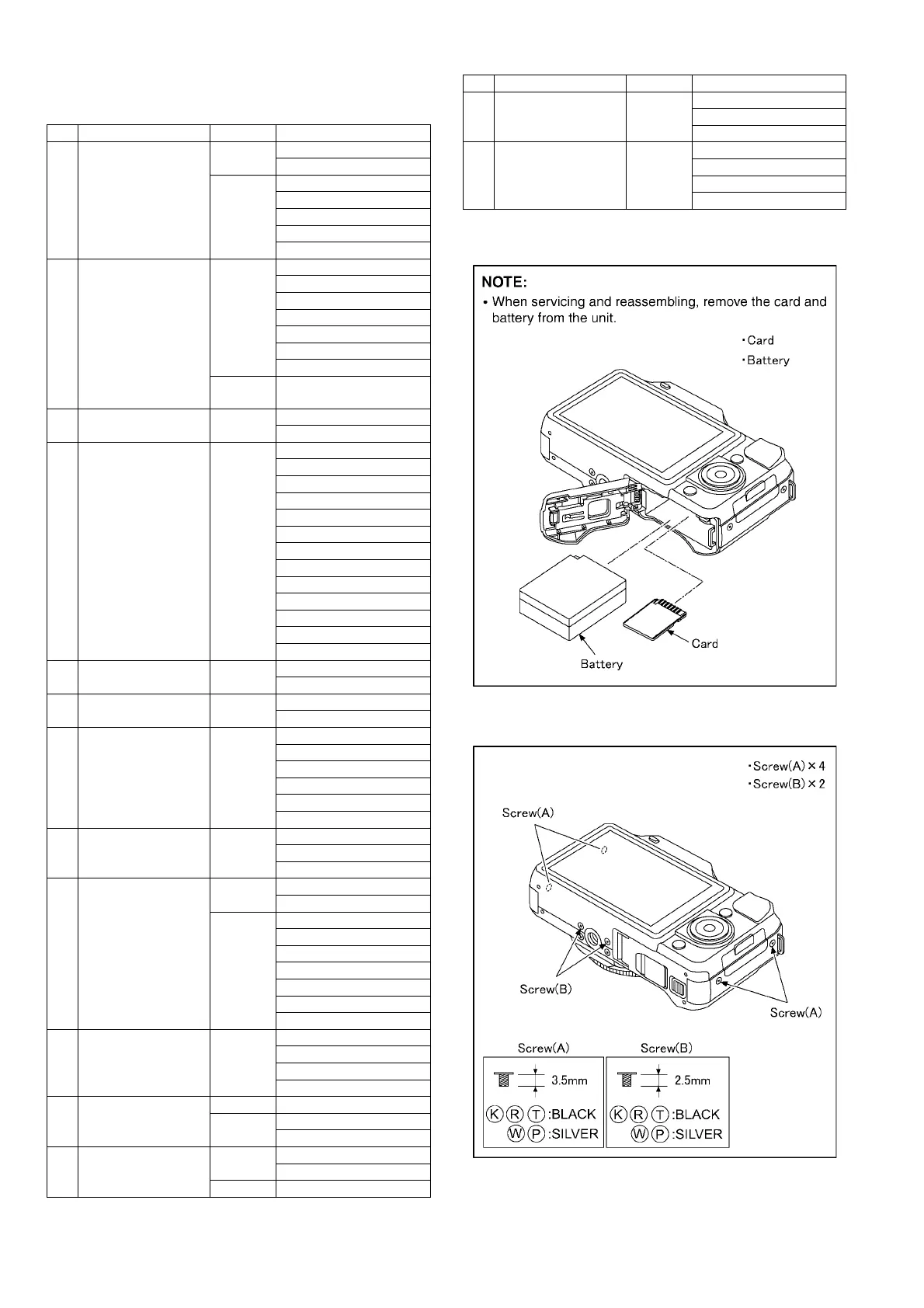

9.1.3. Disassembly Procedure
9.1.3.1. Removal of the Rear Case Unit
(Fig. D1)
No. Item Fig Removal
1 Rear Case Unit (Fig. D1) 4 Screws (A)
2 Screws (B)
(Fig. D2) FP9003(Flex)
FP9007(Flex)
Side Ornament (R)
Side Ornament (L)
Rear Case Unit
2 LCD Unit (Fig. D3) 1 Screw (C)
1 Screw (D)
4 Locking tabs
LCD FPC Tape B
LCD FPC Tape C
Rear Plate
LCD Unit
(Fig. D4) Patch Position of LCD FPC
Tape B, C
3 Rear Operation Unit (Fig. D5) 3 Screws (E)
Rear Operation Unit
4 Main P.C.B. (Fig. D6) 2 Screws (F)
1 Screw (G)
FP3911Flex)
FP3912(Flex)
FP3913(Flex)
FP9001(Flex)
FP9002(Flex)
FP9004(Flex)
FP9005(Flex)
FP9006(Flex)
P9001(Connector)
1 Hooking part
Main P.C.B.
5 Front Case Unit (Fig. D7) 2 Screws (H)
Front Case Unit
6 Mount Box Unit (Fig. D8) 3 Screws (I)
Mount Box Unit
7 Flash Sub P.C.B. Unit (Fig. D9) P8002(Connector)
2 Hooking parts
1 Locking tab
1 Screw (J)
Capacitor Tape
Flash Sub P.C.B. Unit
8 Top Case Unit (Fig. D10) 2 Screws (K)
Battery Case
Top Case Unit
9 Top P.C.B. (Fig. D11) 2 Screws (L)
2 Solders
(Fig. D12) Top P.C.B. Plate
P8003(Connector)
iA Button
REC Button
Power Knob
Power LED Panel
Top P.C.B.
10 Flash Unit
POP SW P.C.B.
(Fig. D13) 1 Screw (M)
Flash Unit
1 Screw (N)
POP SW P.C.B.
11 Mic/Speaker Unit (Fig. D14) 2 Screws (O)
(Fig. D15) Speaker Plate
Mic/Speaker Unit
12 Main-Audio FPC Unit (Fig. D16) Speaker Holder
Main-Audio FPC Unit
(Fig. D17) How to install
13 Battery Door Unit (Fig. D18) Battery Door Shaft
Battery Door Spring
Battery Door Unit
14 Battery Case Plate (Fig. D19) Jack Door
1 Locking tab
Battery Out Spring
Battery Case Plate
No. Item Fig Removal
