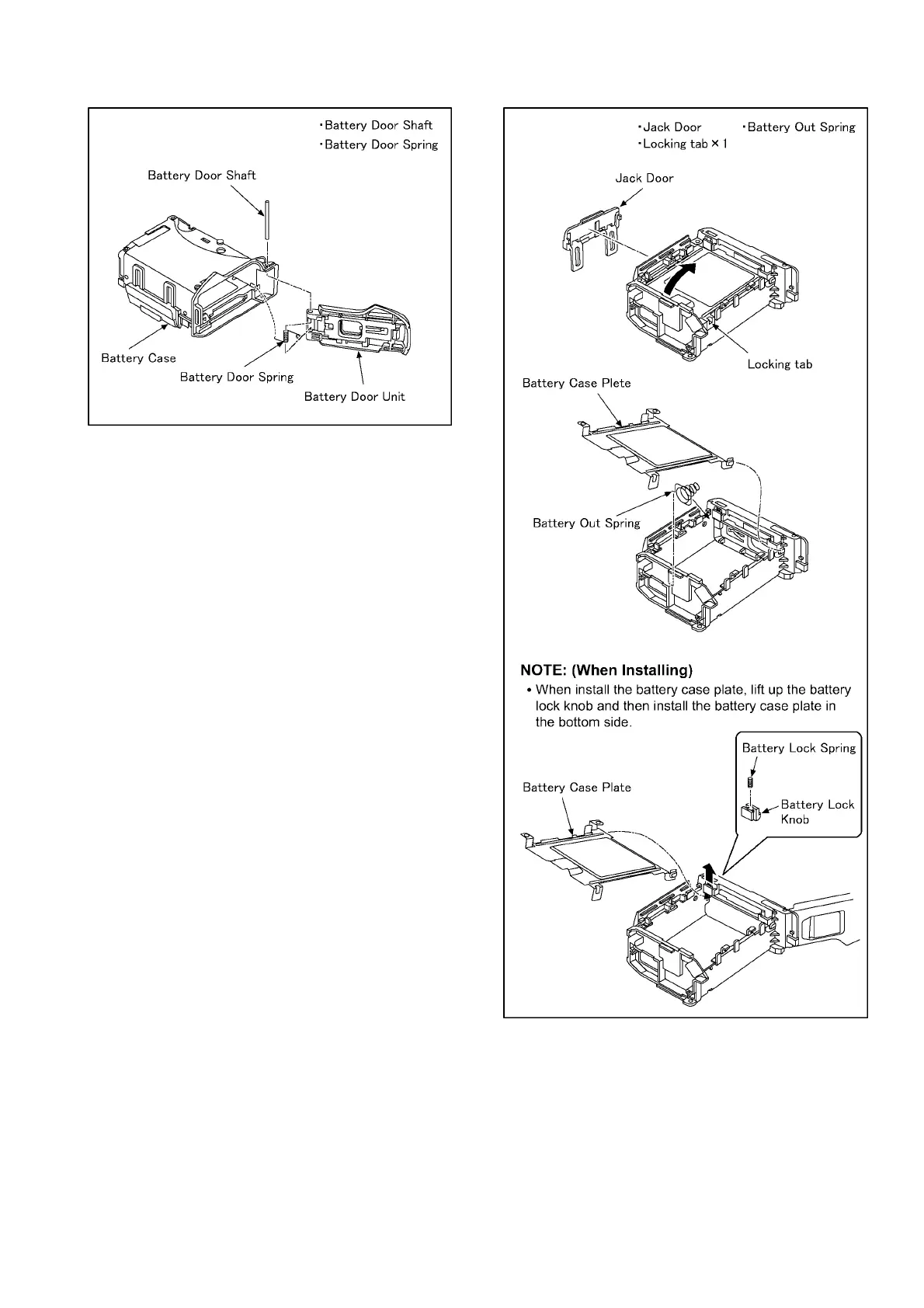

9.1.3.13. Removal of the Battery Door Unit
(Fig. D18)
9.1.3.14. Removal of the Battery Case Plate
(Fig. D19)
NOTE: (When Installing)
Make sure to confirm the following points when installing:
• The Screw is tightened enough.
• Installing conditions are fine. (No distortion, no abnormal-
space.)
• No dust and/or dirt on Lens surfaces.
• LCD image is fine. (No dust and dirt on it, and no gradient
images.)
To Next Page
