41
NOTE:
1. .When installing the screws, be sure to use the torque driver (RFKZ0456) and tighten the screws with specified torque, men-
tioned on the above table.
2. The Ref.B309 is no need to remove/install for disassembly and assembly.
If necessary, use VFK1390 (small driver) when screwing it.

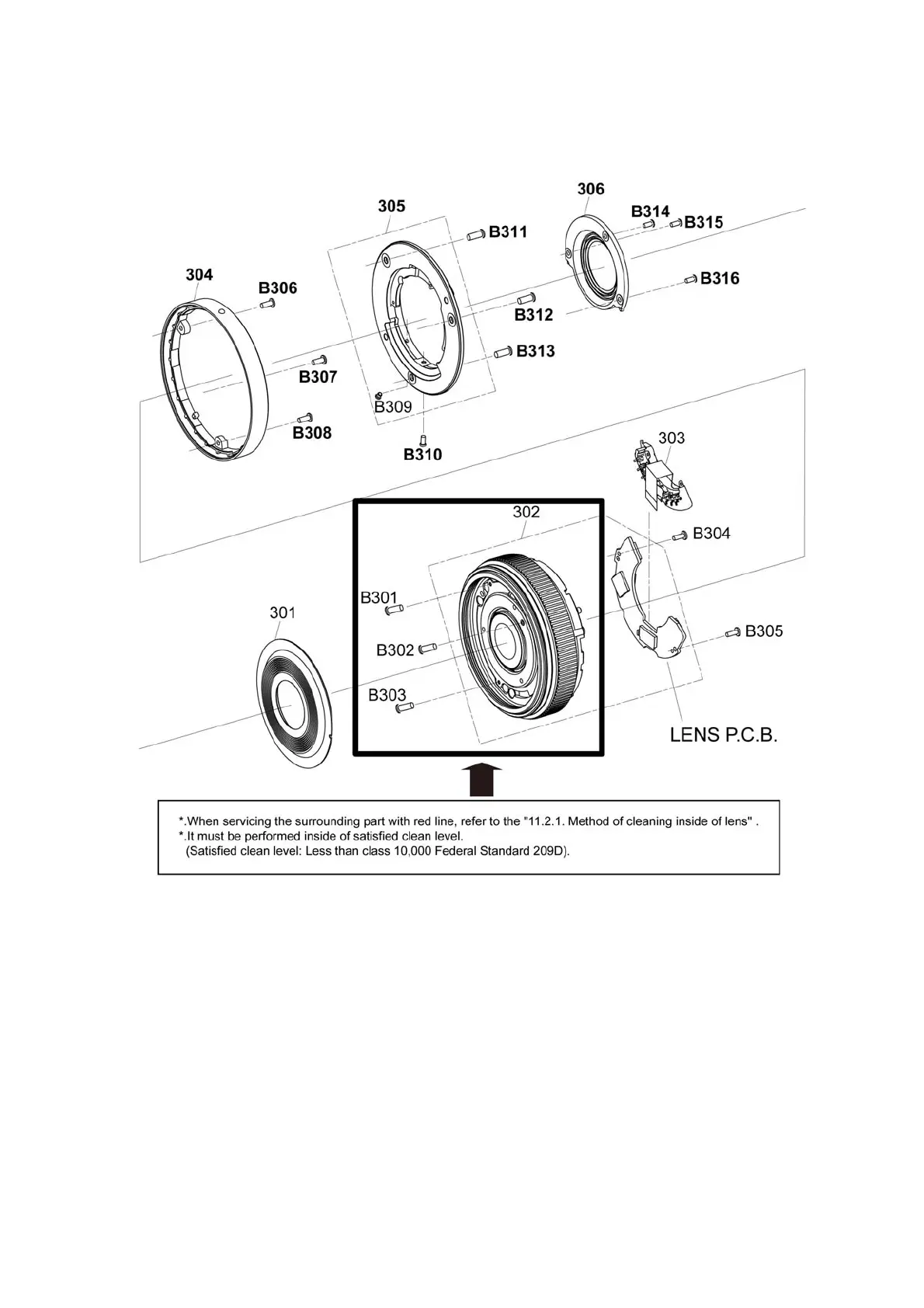

(Fig. C1)
