- 12 -
Connections and settings
≥ Set “HDMI Audio Output” to “Off” (> 29).
≥ Set “Digital Audio Output” (> 29).
≥ Connect terminals of the same colour.

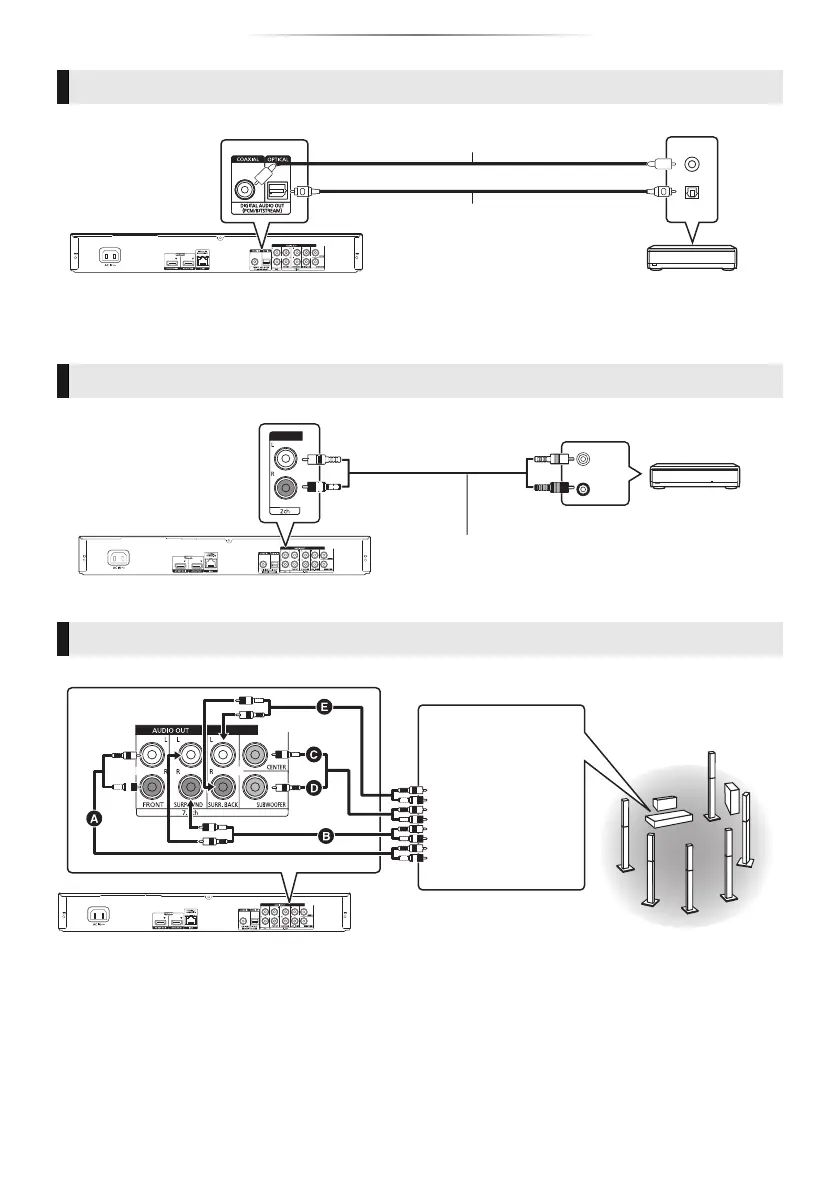

Cable connections
A Front speaker (L/R)
B Surround speaker (L/R)
C Centre speaker
D Subwoofer
E Surround back speaker (L/R) (Only for 7.1ch AUDIO OUT)
≥ Set “Analogue Multi Channel” to “On”, and set the speaker presence and size according to your
environment (> 30). (Audio is not output from HDMI AV OUT terminal.)
DIGITAL AUDIO OUT (OPTICAL or COAXIAL)
OPTICAL IN
COAXIAL IN
Optical digital cable
OR
Coaxial cable
Amplifier/receiver
2ch AUDIO OUT
AUDIO IN
L
R
Audio cable
Amplifier/receiver
7.1ch AUDIO OUT
Connect Audio
cables to terminals
corresponding to
the speakers you
have connected.
