Panasonic DMR-EH60

11
RQT8307
Getting started

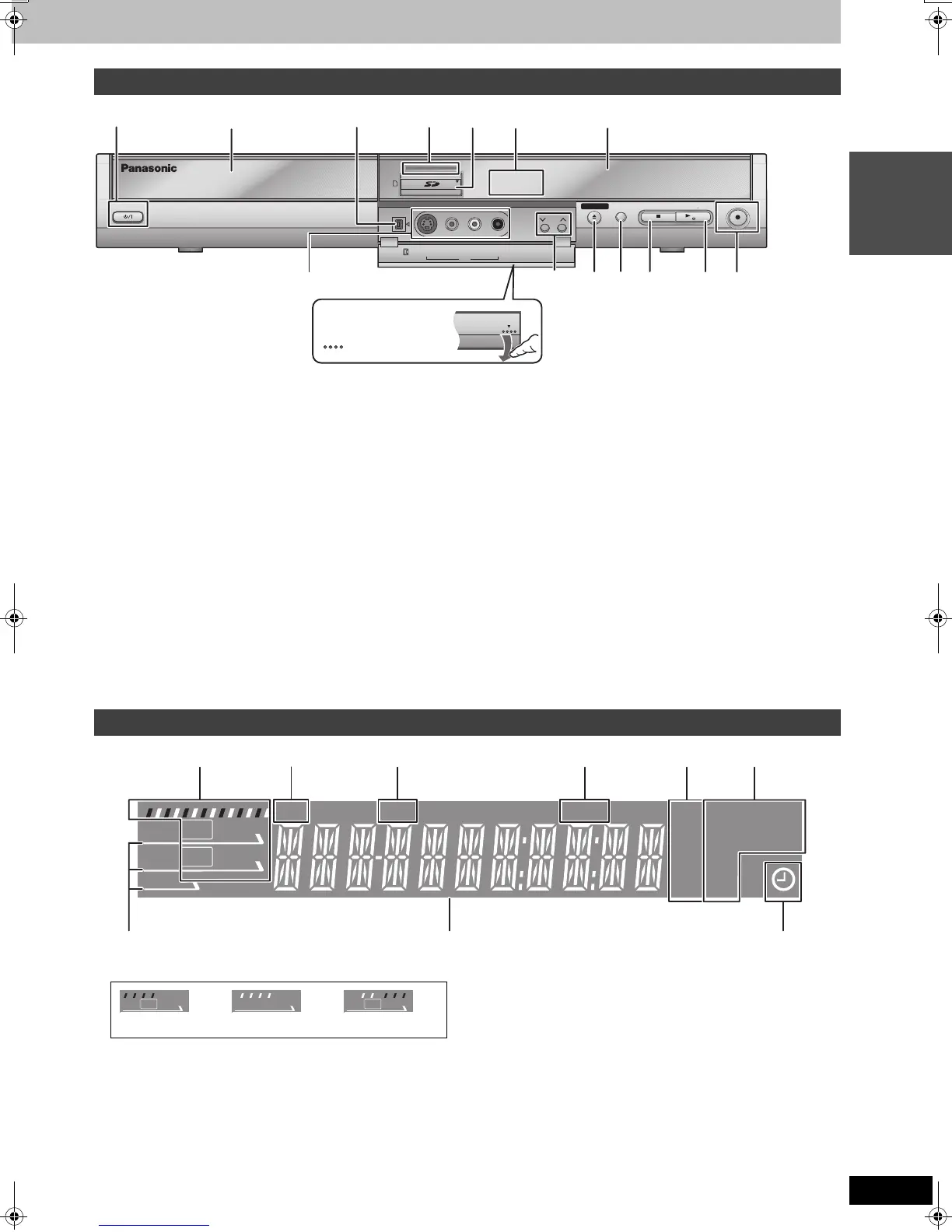

1 POWER button (POWER Í/I) (➡ 16)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of
power.
2 Disc tray (➡ 20, 30)
3 Connector for a digital video (DV) camcorder (➡ 47)
4 Lights when the unit is turned on (if “Front Display” is set to
“Bright” ➡ 56)
5 SD card slot (➡ 5)
6 Lights when the HDD, DVD or SD drive is selected
7 Display (➡ below)
8 Connectors for external equipment (➡ 47)
9 Channel select (➡ 20)
: Open/close disc tray (➡ 20, 30)
; Select drive (➡ 20, 30, 34)
Drive changes each time you press [DRIVE SELECT].
< Stop (➡ 20, 30)
= Start play (➡ 30)
> Start recording/Remote control signal sensor (➡ 20)
Specify the time to stop recording (➡ 21)
Rear panel terminals (➡ 12)
1 e.g.,[HDD]
2 Channel
3 Transferring (dubbing) indicator
4 D.MIX (multi-channel DVD-Audio only)
When lit: Down-mixing (➡ 68) is possible.
When off:The disc prevents down-mixing so only the two front
channels can be played (➡ 8, Regarding DVD-Audio).
5 Recording mode
6 Disc type
7 Lights when the HDD, DVD or SD drive is selected
8 Main display section
9 Scheduled recording indicator
