DP-3510/3520/3530/4510/4520/4530/6010/6020/6030

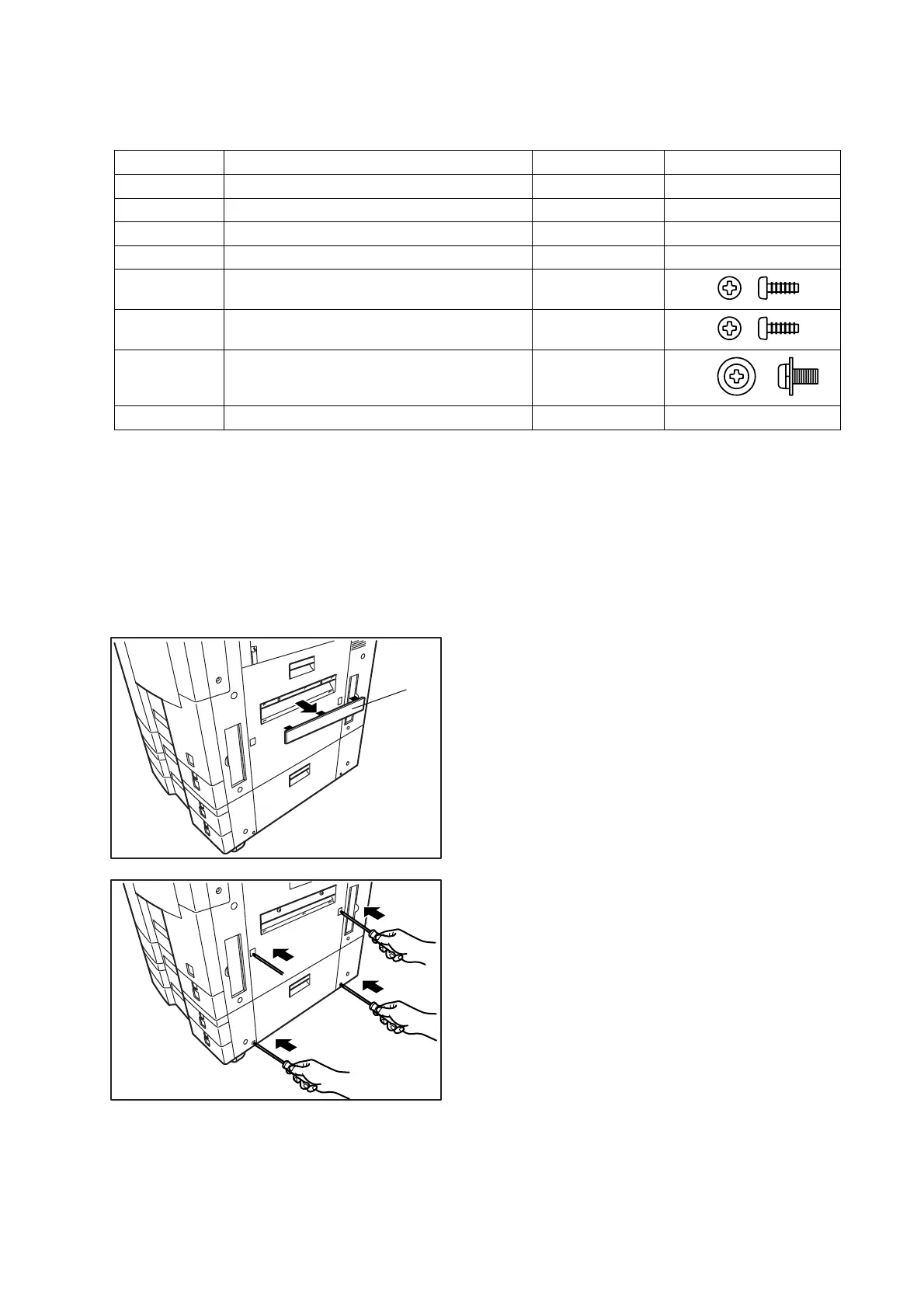

8.23. Installing the 3000-Sheet Tray (DA-MA301)
8.23.1. Contents
Note:
1. The part number may differ depending on the Destination.
2. Refer to the Parts List in the Parts Manual.
8.23.2. Installation
CAUTION!
Turn the Power Switch on the Left Side and the Main Power Switch on the Back of the
machine to the OFF position, and then unplug the AC Power Cord before beginning
installation.
Qty. Description Part No. Remarks
1 3000-Sheet Tray (LCT) See Note
1 Paper Guide DZJF000543
1 Rail Assy DZJA001049
1 Harnes Clamp PLWS4
2 Screw (M4 x 10) See Note
2 Silver Screw (M4 x 10) See Note
2 Screw (M4 x 8) See Note
1 Installation Instructions DZSM000488 This document
(1) Remove the Protective Cover by releasing
3 Latch Hooks.
(2) Break off 4 protective tabs with the Phillips type
Screw Driver on the Right Upper and Bottom
Covers.
(1)
To Next Page
