397
JAN 2006
Ver. 5.2
DP-3510/3520/3530/4510/4520/4530/6010/6020/6030

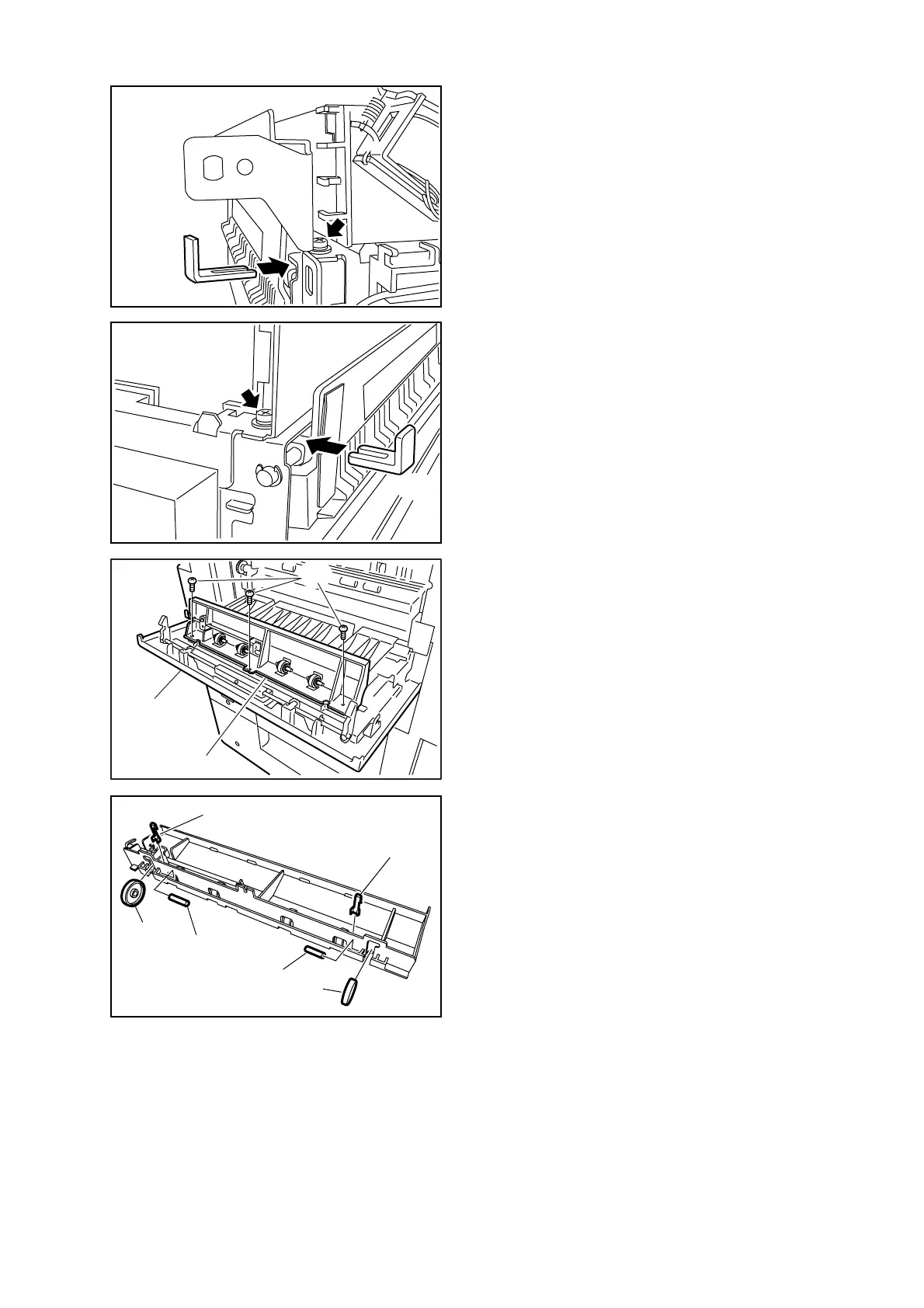

(14) Loosen 1 Screw as illustrated.
(15) Install the Spacer.
(16) Secure 1 Screw loosened in the step (14).
(17) Loosen 1 Screw as illustrated.
(18) Install the Spacer.
(19) Secure 1 Screw loosened in the step (17).
(20) Reinstall the Fuser Unit and all remaining parts.
Note:
For USA and Canada, skip to step (36).
(21) Open the Front Cover.
(22) Open the Upper Exit Cover.
(23) Remove 3 Screws.
(24) Remove the Exit Guide 3 Assembly.
If the Exit Guide 3 Assembly has the Rollers (27),
follow steps (25) ~ (27) to remove.
[If not, skip to step (28)]
(25) Remove 2 Stopper Plates.
(26) Remove 2 Shafts.
(27) Remove 2 Rollers.
Fuser Unit
(Front View)
(15)
(14)
(16)
Fuser Unit
(Rear View)
(17)
(19)
(18)
(22)
(24)
(23)
(25)
(26)
(26)
(27)
(27)
(25)
