47
JAN 2006
Ver. 5.2
DP-3510/3520/3530/4510/4520/4530/6010/6020/6030

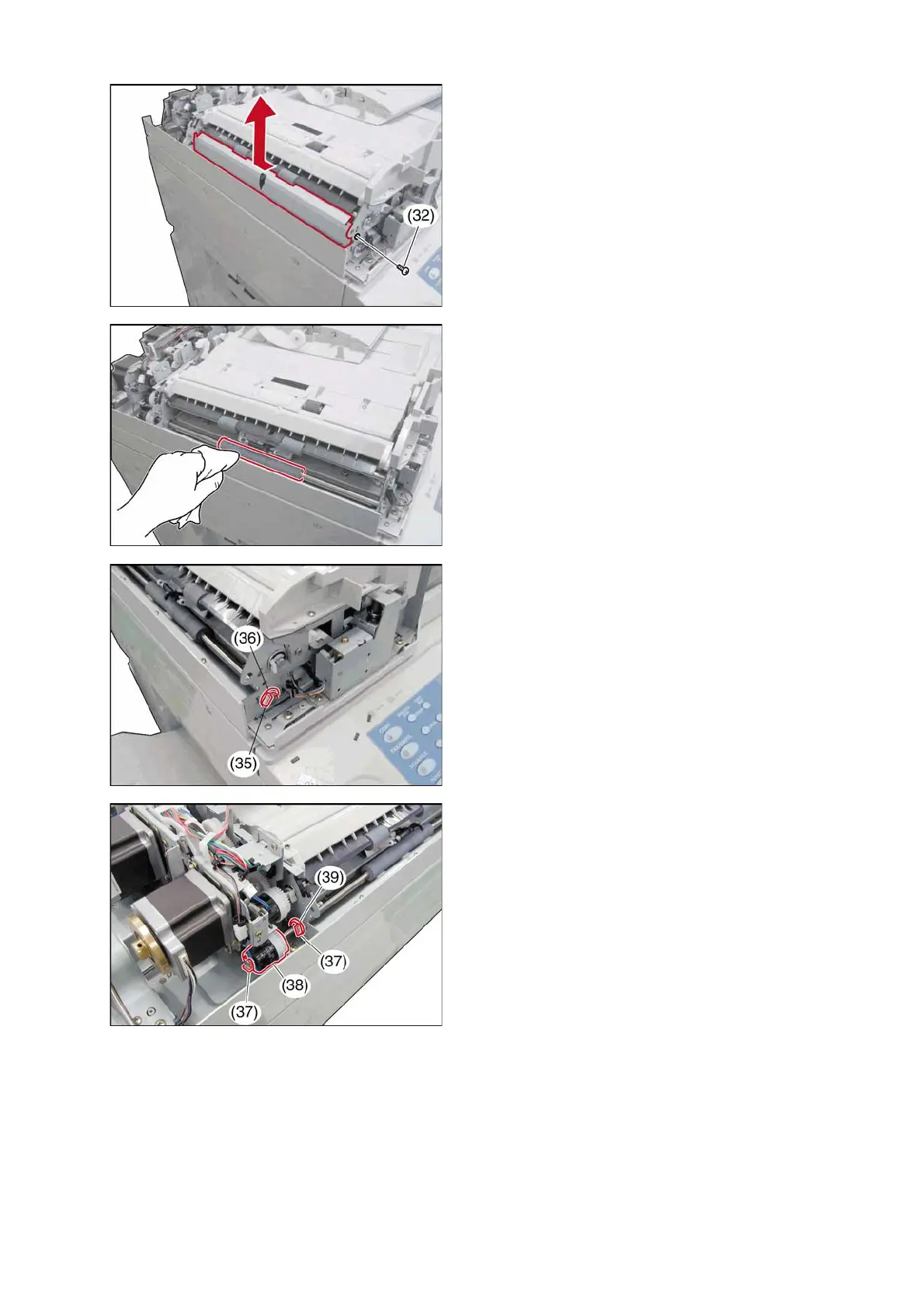

(32) Remove 1 Screw (21).
(33) Remove the Registration Guide 2 (721).
(34) Clean the Registration Roller 2 (818).
(35) Remove the Snap Ring (G6).
(36) Remove the D8 Bearing (822).
(37) Remove 2 Snap Rings (G6).
(38) Remove the Clutch 1 (801).
(39) Remove the D8 Bearing (822).
