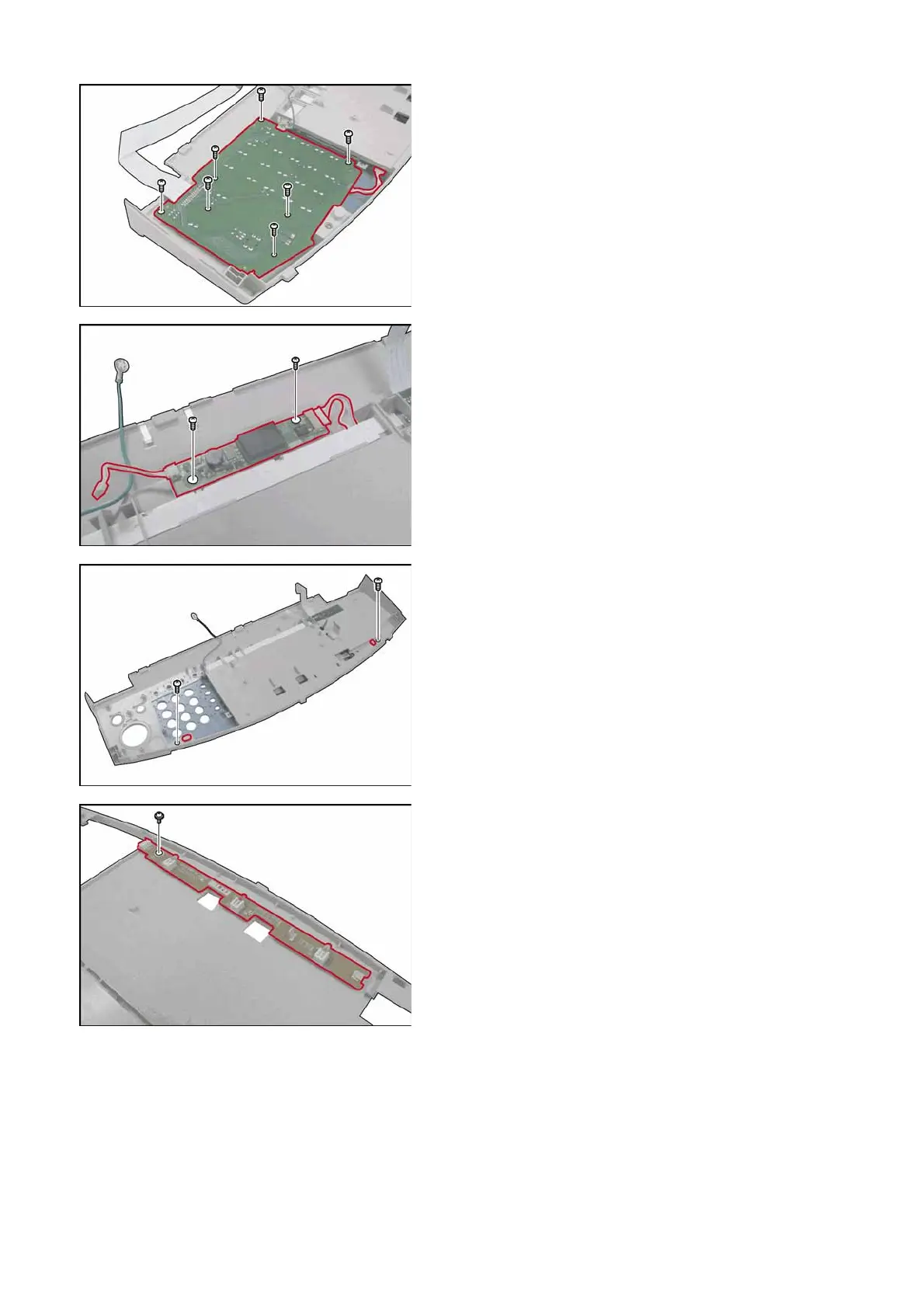

(12) Disconnect the Harness on the PNL2 PC Board
(CN251).
(13) Remove 7 Screws (F10).
(14) Remove the PNL2 PC Board (323).
(15) Disconnect the Harness on the INV PC Board
(CN2).
(16) Remove 2 Screws (F10).
(17) Remove the INV PC Board (329).
(18) Remove 2 Screws (F10).
(19) Release 2 Latch Hooks and remove the Upper
Control Panel Cover (322).
(20) Remove 1 Screw (F10).
(21) Remove the PNL4 PC Board (314).
