Panasonic DP-6030 - Page 604

604
JAN 2006
Ver. 5.2
DP-3510/3520/3530/4510/4520/4530/6010/6020/6030
3. Removing Front Inside Cover.
4. Removing the Saddle Delivery Tray Assembly.

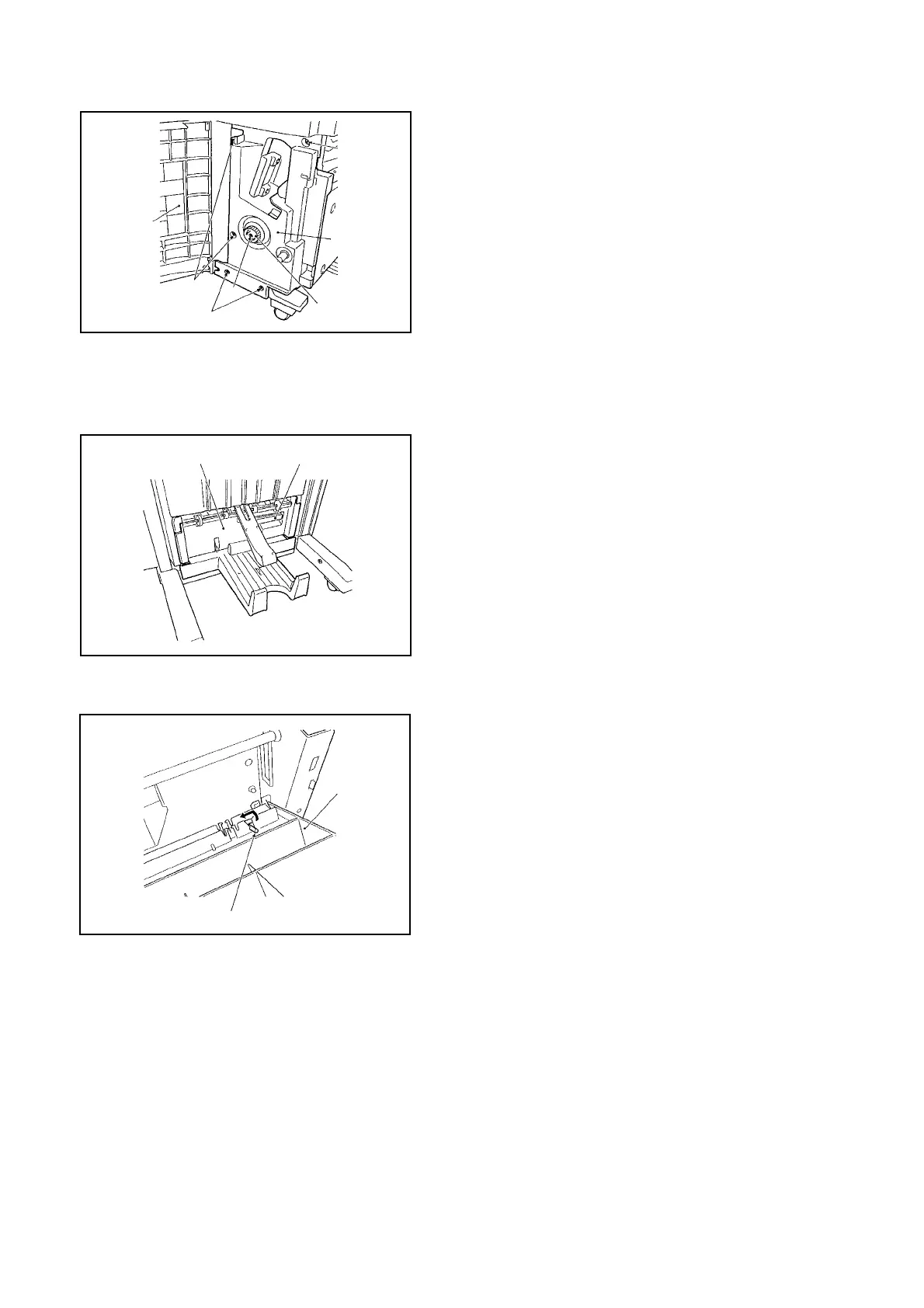

Fig. 5-031
(1) Open the Front Lower Door Assembly [1].
(2) Remove 1 Screw [2], and remove the Folding
Roller Knob [3].
(3) Remove 5 Screws [4], and remove the Front
Inside Cover [5].
Fig. 5-032
(1) Lift up the Open / Close Lever [2] of the Saddle
Delivery Tray Assembly [1], and open the Saddle
Delivery Tray Assembly.
Fig. 5-033
(2) Remove the Door Shaft [3] in the direction of the
arrow, and draw out towards the front of the
Saddle Delivery Tray Assembly [4].
[1]
[4]
[4]
[2]
[3]
[5]
[4]
[1]
[2]
[4]
[3]
