Panasonic DP-6030

683
JAN 2006
Ver. 5.2
DP-3510/3520/3530/4510/4520/4530/6010/6020/6030

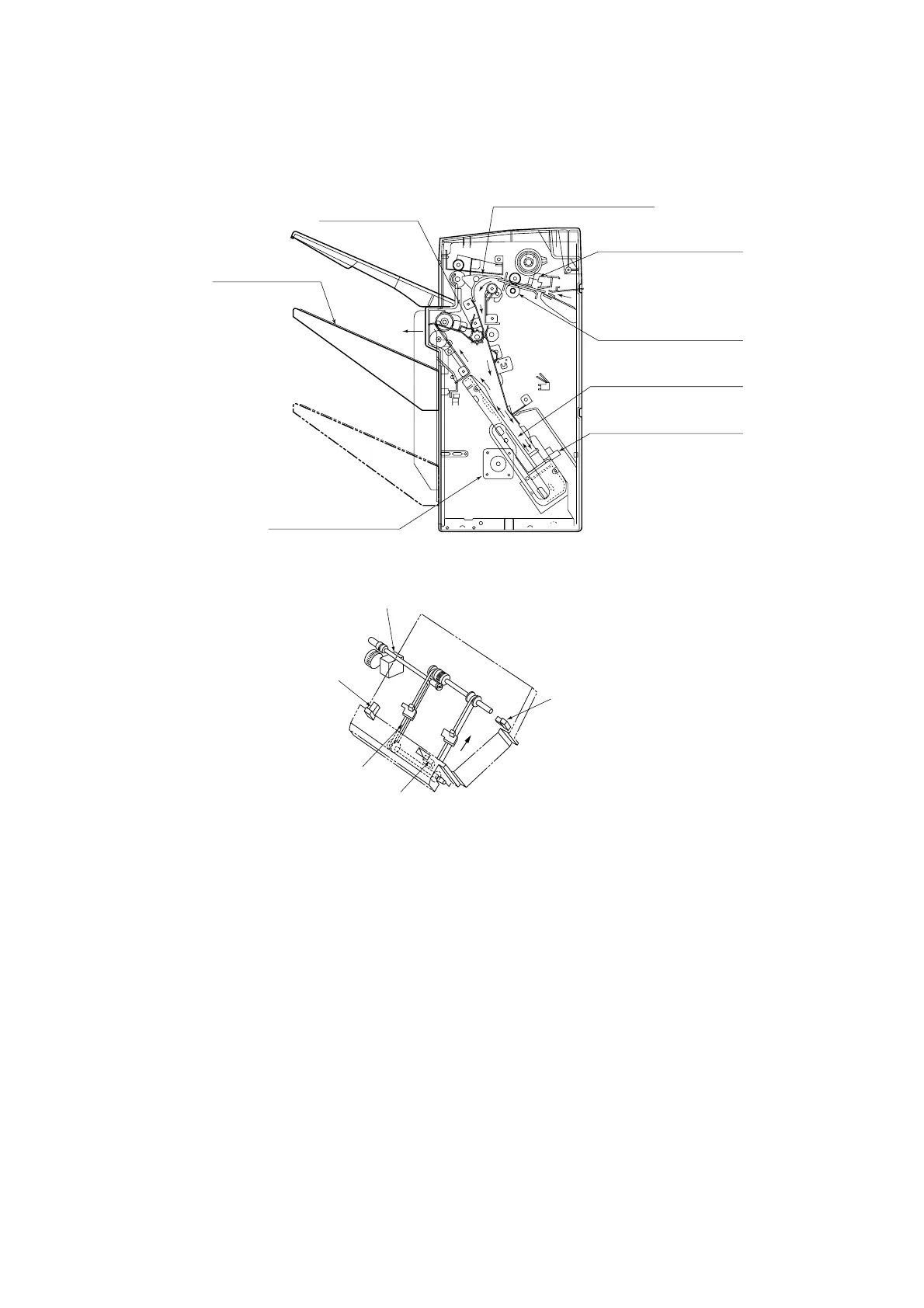

11.2.2.2.1. Paper Transport Mechanism (Interstage Stack)
1. Lower Tray Paper Path (Discharged into Lower Tray)
The rollers are rotated by the Transport Motor (M1). The paper passes through the Registration Roller,
Path Gate, Paddle Roller and is received by the stack. After the paper is detected by the Paper Path
Sensor and jogged, the Belt Motor is driven and the paper is discharged into the Lower Tray.
Paper Stack
Paddle Roller
Path Select Gate
Paper Feed Sens
or
L
ower Tray
Registration Roll
er
Paper Stac
k
Paper Pass Sens
or
Belt Motor
Belt Motor
P
aper Pass Sensor
Belt
Belt Home Position Sensor
Sheet Detecting Sens
or
