74
JAN 2006
Ver. 5.2
DP-3510/3520/3530/4510/4520/4530/6010/6020/6030

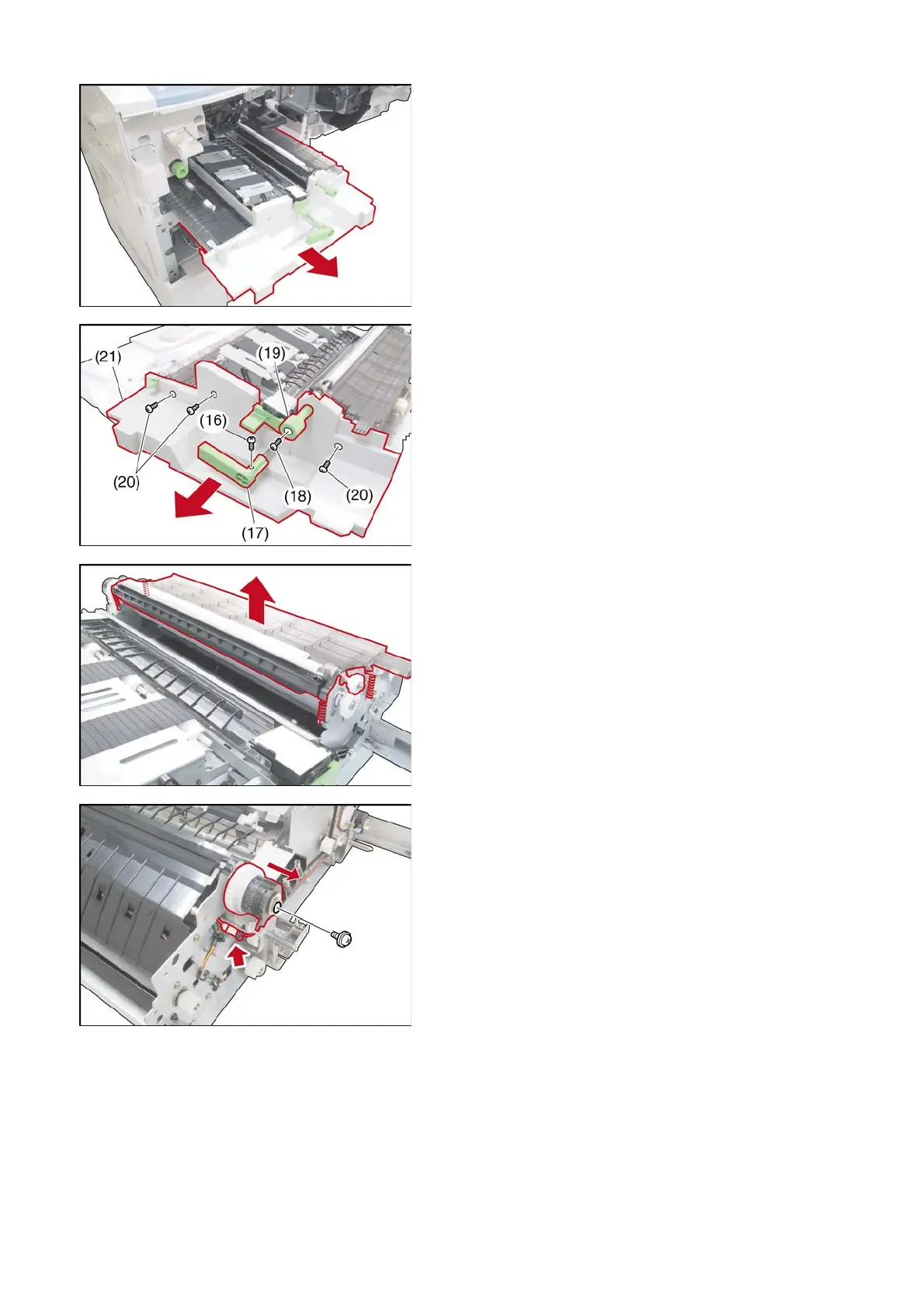

(15) Remove the ADU Unit (2351).
(16) Remove 1 Screw (24).
(17) Remove the Lifting Lever (2327).
(18) Remove 1 Screw (23).
(19) Remove the Registration Release Knob
(2328).
(20) Remove 3 Screws (21).
(21) Remove the Inner Cover (2332).
(22) Remove 2 Registration Guide Springs (2409)
and 2 Front Registration Springs (2413).
(23) Remove the Upper Registration Guide (2402).
(24) Disconnect the Harness.
(25) Remove 1 Screw (23).
(26) Remove the Clutch (2602).
Note:
Ensure the wire terminal is secured on the gear
frame to prevent shorting of the clutch harness.
