Maintenance
To clean this unit, wipe with a soft, dry cloth.
● Use eyeglass cleaner to remove stubborn dirt from the LCD.
● Never use alcohol, paint thinner or benzine to clean this unit.
Maintenance of the lens
● Remove dust carefully with an air blower for camera lenses
(optional).
● Recommended product:
Lens cleaner kit (SZZP1038C) (Available from Panasonic
dealers.)
● You cannot use a CD type lens cleaner.
● Be careful not to touch the lens with your fingers.

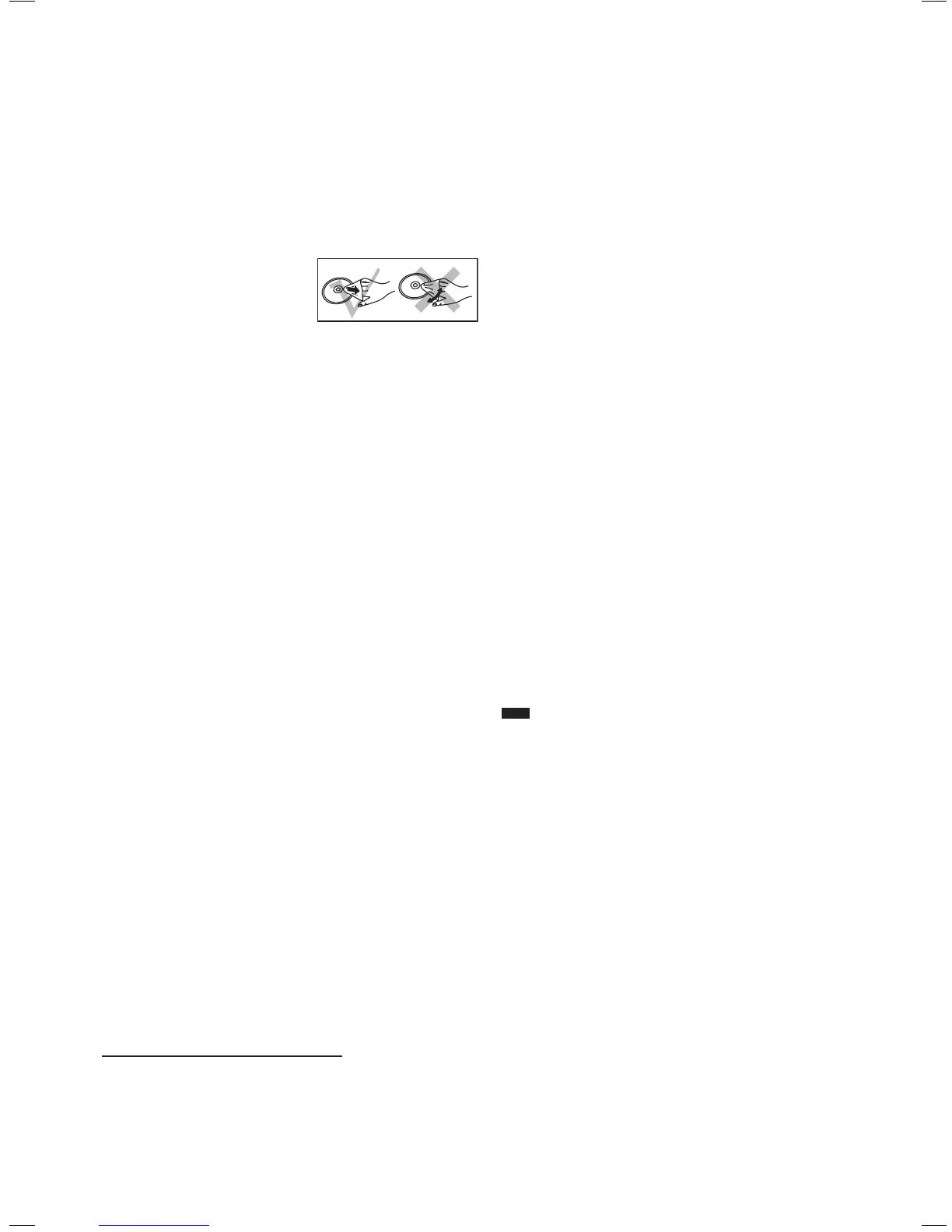

To clean discs
● Wipe with a damp cloth and
then wipe dry.
Disc handling precautions
● Do not attach labels or stickers to discs (This may cause disc
warping, rendering it unusable).
● Do not write on the label side with a ball-point pen or other
writing instrument.
● Do not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
● Do not use scratch-proof protectors or covers.
● Do not drop stack, or impact discs. Do not place objects on
them.
● To protect discs from scratches and dirt, return them to their
cases or cartridges when you are not using them.
● Do not use the following discs:
– Discs with exposed adhesive from removed stickers or
labels (rented discs etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
Specifications
Operating temperature range: +5 to +35 °C (+41 to +95 °F)
Operating humidity range: 5 to 85 % RH (no condensation)
Discs played [8 cm (3 ") or 12 cm (5 ")]:
(1) DVD (DVD-Video, DivX*
4
)
(2) DVD-R (DVD-Video, JPEG*
3, 4, 5
, MP3*
2, 4
, DivX*
4
)
(3) DVD-R DL (DVD-Video)
(4) DVD-RW (DVD-Video, JPEG*
3, 4, 5
, MP3*
2, 4
, DivX*
4
)
(5) +R/RW (Video)
(6) +R DL (Video)
(7) CD, CD-R/RW (CD-DA, Video CD, SVCD*
1
, MP3*
2, 4
,
JPEG*
3, 4, 5
, DivX*
4
)
Signal system: NTSC
LCD screen:
9 inch, TFT wide-screen LCD (640 × 234 × RGB)
AUDIO/VIDEO output:
Output terminal: ø 3.5 mm (1/8") mini jack
Number of terminals: 1 system
Composite-video:
Output level: 1 Vp-p (75 Ω)
Audio:
Output level: 1.5 Vrms (1 kHz, 0 dB, 10 kΩ)
Audio performance:
(1) Frequency response:
● DVD (linear audio):
4 Hz to 22 kHz (48 kHz sampling)
4 Hz to 44 kHz (96 kHz sampling)
● CD audio: 4 Hz to 20 kHz
(2) S/N ratio: 100 dB
(3) Dynamic range: 80 dB
(4) Total harmonic distortion: 0.1 %
Speaker: 1.2 W+1.2 W (10 % Distortion)
Headphone output:
Output: ø 3.5 mm (1/8") stereo mini jack
Number of terminals: 2 systems
Pickup:
Wave length: 655 nm/790 nm (DVD/CD)
Laser power: CLASS 1M/CLASS 1 (DVD/CD)
Power supply:
DC 12 V (DC IN terminal)/DC 7.2 V (Exclusive battery terminal)
Power consumption
(using included AC adaptor): 14 W (Unit only: 12 W)
Power consumption in Standby mode
(using included AC adaptor): approx. 0.4 W
Power consumption in Recharge mode
(using included AC adaptor): 12 W
AC adaptor:
Power source: AC 100 to 240 V, 50/60 Hz
Power consumption: 22 W
DC output: 12 V, 1.3 A
Car DC Adaptor:
DC output: 12 V, 2 A
(Vehicle with 12 V battery only)
Battery pack (lithium ion)
DY-DB20 (included):
Voltage: 7.2 V
Capacity: 4200 mAh
Dimensions (W × H × D) (excluding protrusions and battery):
242.6 mm (W) × 46.0* mm (H) × 173.5 mm (D)
(9
9
/
16
" × 1
13
/
16
" × 6
27
/
32
")
*24.6 mm (
31
/
32
") at lowest point
(H=51.5 mm (2
1
/
32
") including battery)
(D=179.3 mm (7
1
/
16
") including battery)
Mass (Weight):
(including battery):
approximately 1110
g
(39.15 oz)
(without battery):
approximately 878
g
(30.97 oz)
Specifications are subject to change without notice.
*
1
Conforming to IEC62107
*
2
MPEG-1 Layer 3, MPEG-2 Layer 3
*
3
Exif Ver 2.1 JPEG Baseline files
Picture resolution:
16:9 picture: 4 × 4 ~ 5760 × 3240 pixels
4:3 picture: 4 × 4 ~ 5760 × 4320 pixels
(Sub sampling is 4:2:0 or 4:2:2)
*
4
The total combined maximum number of recognizable audio,
picture and movie contents and groups: 2000 audio, picture
and movie contents and 200 groups.
*
5
Extremely long and slender pictures may not be displayed.
