Panasonic E series Operating Instructions

2
Thank you for purchasing Panasonic Air Conditioner.
Installation instructions attached.
Before operating the unit, please read these operating instructions thoroughly and keep them for future
reference.
The illustrations in this manual are for explanation purposes only and may differ from the actual unit.
They are subject to change without notice for future improvement.

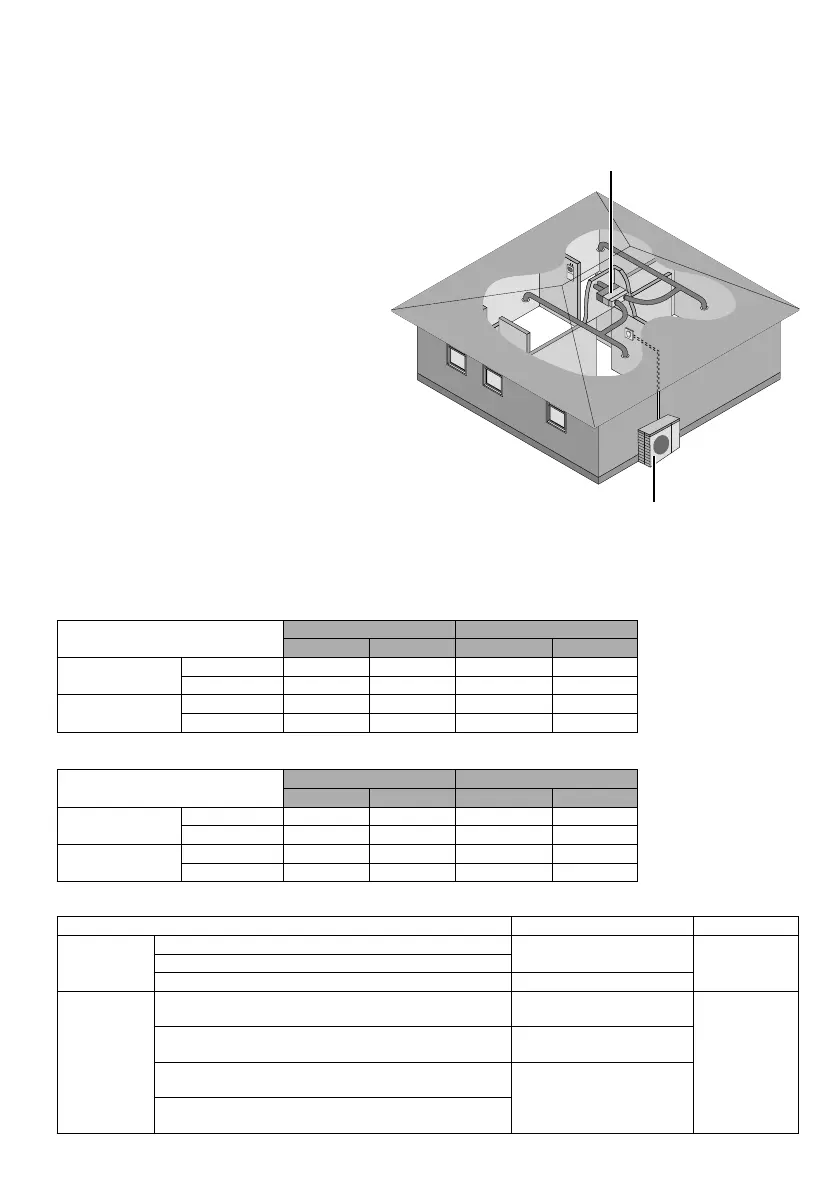

Multi air conditioner system
Multi air conditioner systems save space by
letting you connect multiple indoor units to a
single outdoor unit.
• For complete product features, please refer
catalogue.
Indoor units
• It is possible to operate the indoor units
individually or simultaneously. The priority
of operation is placed on the fi rst unit that
turned on.
• During operation, HEAT and COOL modes
cannot activate at the same time for
different indoor units.
• The power indicator blinks to indicate the
indoor unit is standing by for a different
operation mode.
Operation conditions
Use this air conditioner under the following temperature range.
DBT : Dry bulb temperature
WBT : Wet bulb temperature
Single split outdoor unit
Temperature (°F/°C)
Indoor Outdoor
DBT WBT DBT WBT
COOL
Max. 89.6/32 73.4/23 114.8/46 78.8/26
Min. 60.8/16 51.8/11 0/-17.8 -/-
HEAT
Max. 86.0/30 -/- 75.2/24 64.4/18
Min. 60.8/16 -/- -4/-20 -5.8/-21
Multi split outdoor unit
Temperature (°F/°C)
Indoor Outdoor
DBT WBT DBT WBT
COOL
Max. 89.6/32 73.4/23 114.8/46 78.8/26
Min. 60.8/16 51.8/11 14.0/-10 -/-
HEAT
Max. 86.0/30 -/- 75.2/24 64.4/18
Min. 60.8/16 -/- 5.0/-15 3.2/-16
Power Supply
Model Number Time Delay Circuit Breaker Rated Volts
Single Split
CS-E9SD3UAW / CU-E9SD3UA
15 Amps
208/230VCS-E12SD3UAW / CU-E12SD3UA
CS-E18SD3UAW / CU-E18SD3UA 25 Amps
Multi Split
CS-ME5SD3UA / CS-ME7SD3UA / CS-E9SD3UAW /
CS-E12SD3UAW / CU-2E18SBU
25 Amps
208/230V
CS-ME5SD3UA / CS-ME7SD3UA / CS-E9SD3UAW /
CS-E12SD3UAW / CS-E18SD3UAW / CU-3E19RBU
30 Amps
CS-ME5SD3UA / CS-ME7SD3UA / CS-E9SD3UAW /
CS-E12SD3UAW / CS-E18SD3UAW / CU-4E24RBU
45 Amps
CS-ME5SD3UA / CS-ME7SD3UA / CS-E9SD3UAW /
CS-E12SD3UAW / CS-E18SD3UAW / CU-5E36QBU
Indoor units
Outdoor unit
