Panasonic ER-GN30 - Parts Identification

4
English

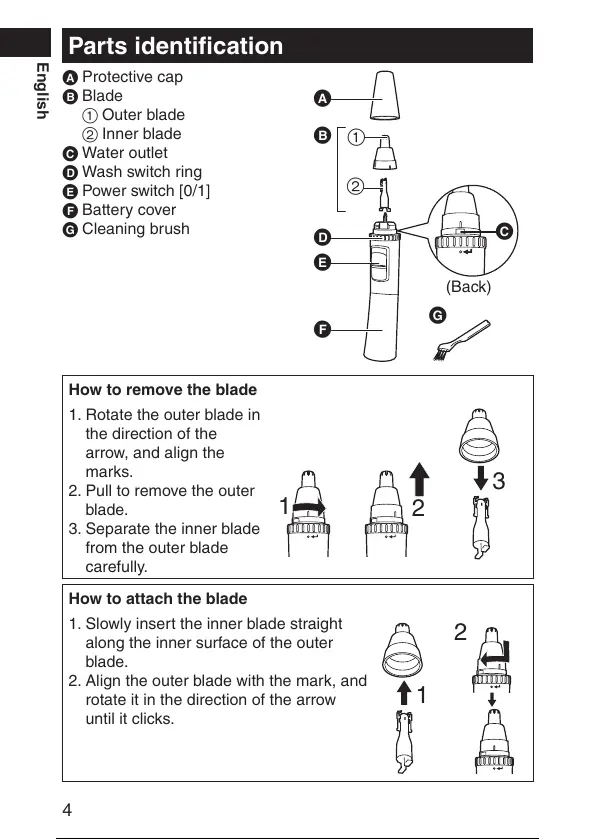

Parts identification
A Protective cap
B Blade
1 Outer b
lade
2 Inner b
lade
C W
ater outlet
D W
ash switch ring
E P
ower switch [0/1]
F Batter
y cover
G Cleaning br
ush
(Back)









How to remove the blade
1. Rotate the outer blade in
the direction of the
arrow, and align the
marks.
2
. Pull to remove the outer
blade.
3. Separate the inner blade
from the outer blade
carefully.
1
2
3
How to attach the blade
1. Slowly insert the inner blade straight
along the inner surface of the outer
blade.
2
. Align the outer blade with the mark, and
rotate it in the direction of the arrow
until it clicks.
2
1
