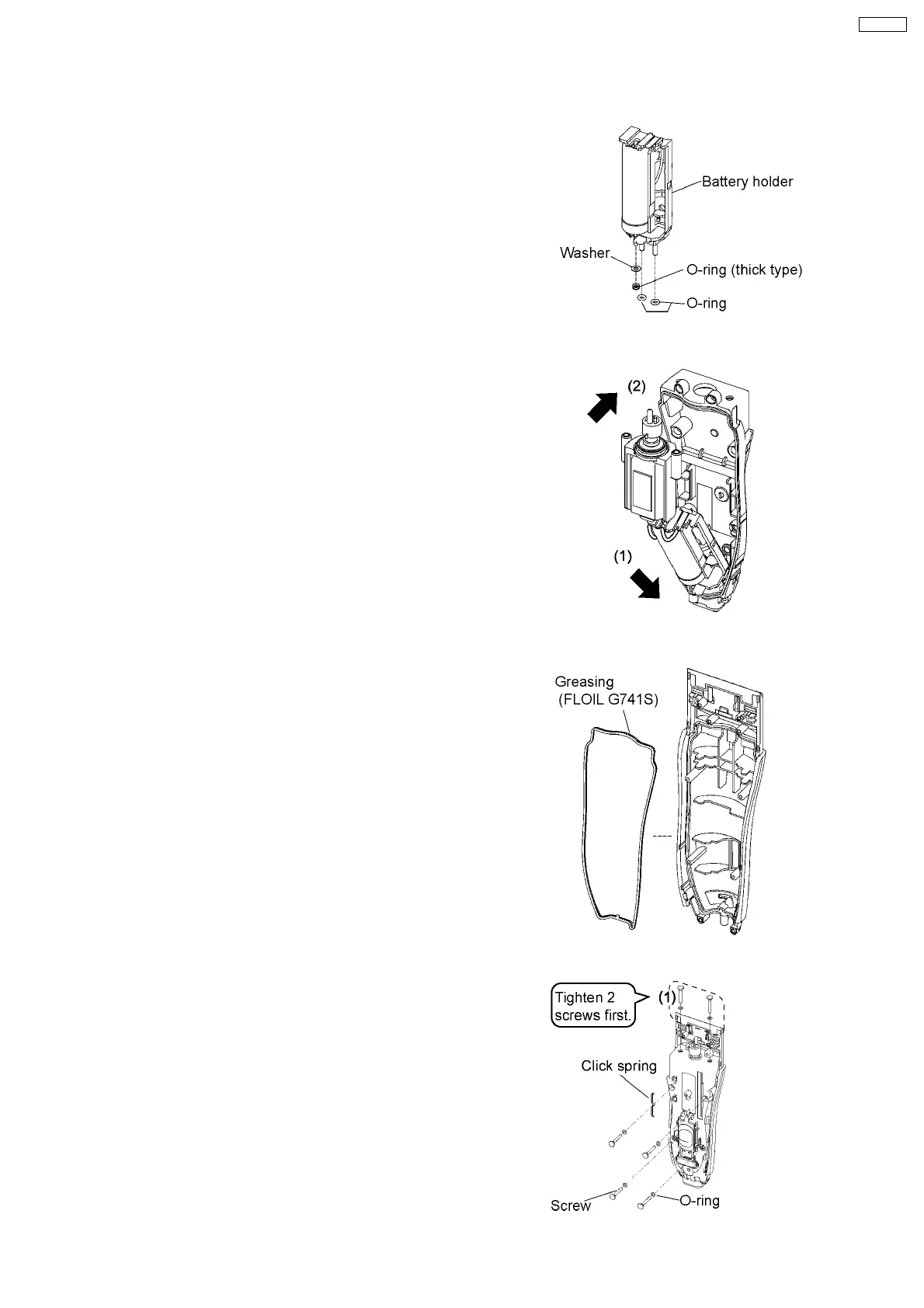

1. Insert the rechargeable battery into the battery holder.
NOTE: Make sure to attach the washer and O-ring to the
battery terminal. The O-ring for the battery terminal is
the thickest. Confirm if the O-ring is attached properly.
·
battery terminal: washer X 1 and o-ring X 1
·
terminal pins: o-ring X 1
2. Set motor, module and battery assembly to the housing A.
Insert from the battery terminal side first and then place the
motor holder.
NOTE: Make sure that two motor lead wires are set
within the space between the battery holder and the
motor holder to prevent pinching.
NOTE: Make sure to attach the switch cam with the
lowest position.
3. Attach the housing O-ring to the housing B.
4. Set the housing A onto the housing B with tightening ten
screws starting from the upper face of housing A first.
NOTE: Make sure that six O-rings are set.
5. Set the click spring on the housing A.
NOTE: It is available to measure the waterproof tester.
4 ASSEMBLY INSTRUCTIONS
5
ER217-E2
