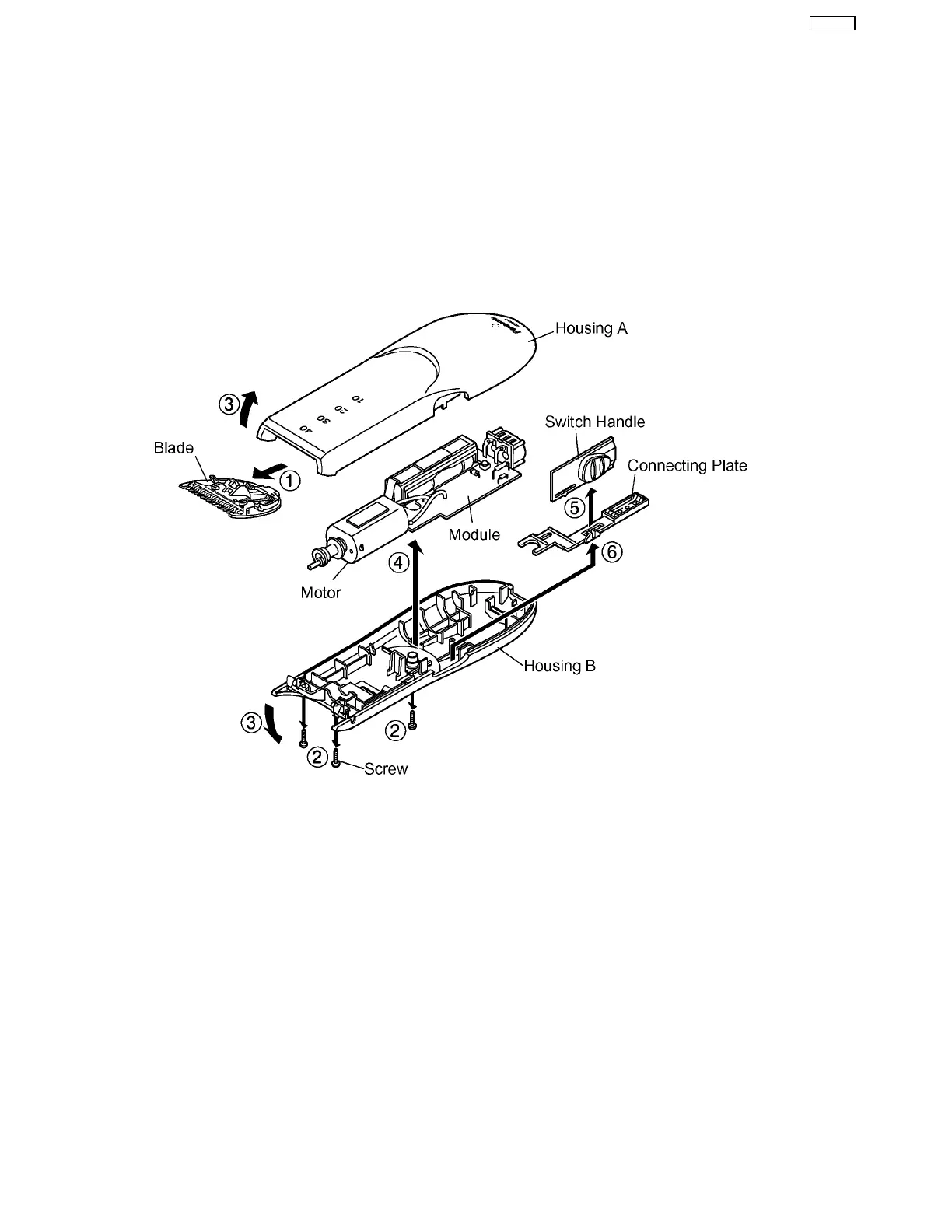

Follow the procedure below to disassemble the main body.
3 DISASSEMBLY INSTRUCTIONS
1. Remove the attachment and the blade.
2. Loosen two screws tightening the blade springs and one housing screw.
3. Separate housing A and B by opening at the blade side.
4. Take out the motor and module from housing B.
5. Remove the switch handle.
6. Remove the connecting plate.
