4 Disassembly and Assembly Instructions

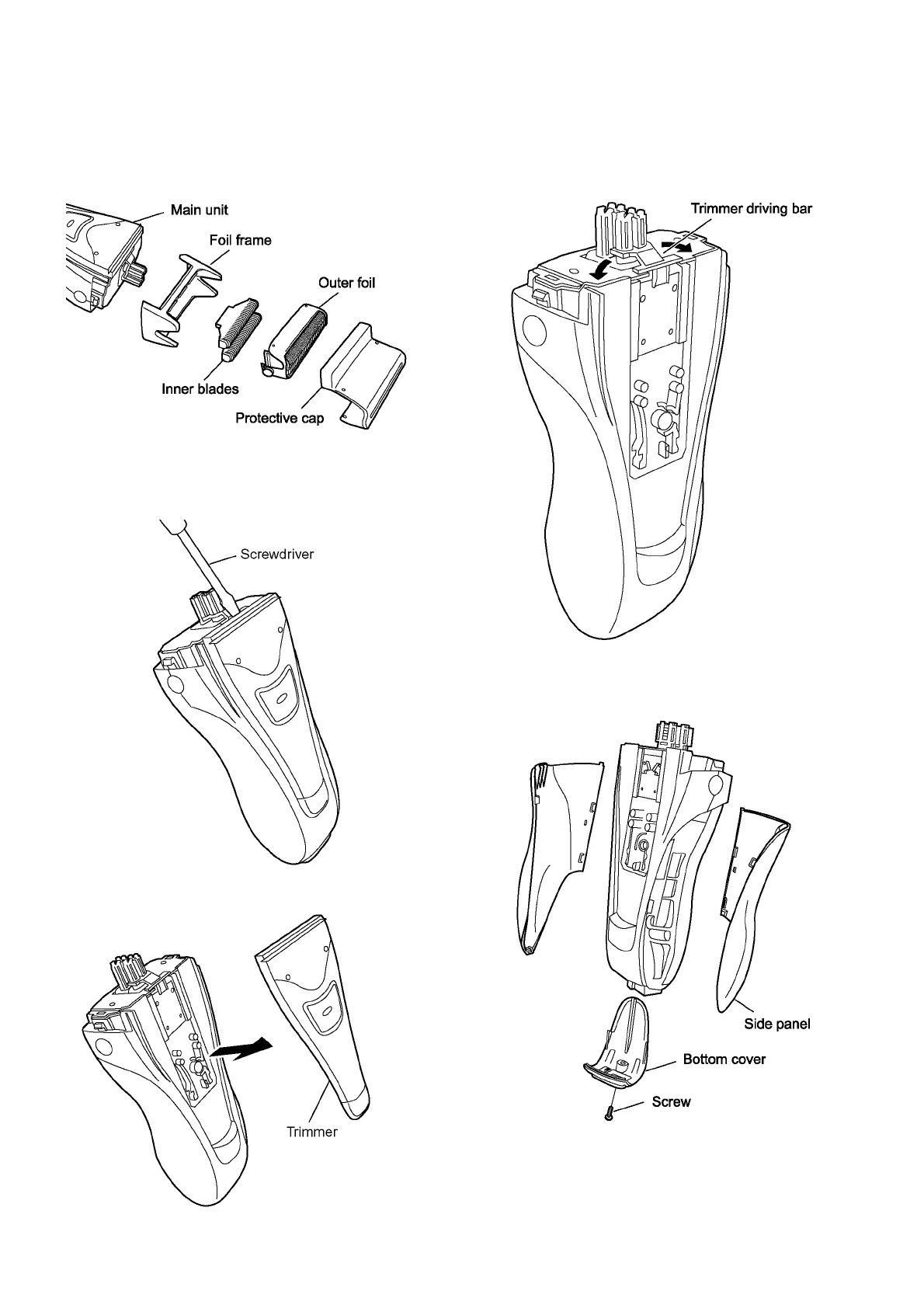

4.1. Disassembly Instructions
Follow the procedure below to disassemble the main unit.
1. Remove the cap, the outer foil with foil frame and the
inner blade.
2. Unhook the trimmer handle by inserting something like a
slotted screwdriver into a slit.
NOTE:
Make sure not to scratch or damage on the housing.
3. Remove the trimmer.
4. To remove the trimmer driving bar, press bar outward.
5. Loosen a screw and remove the bottom cover. And take
out the side panels.
