5

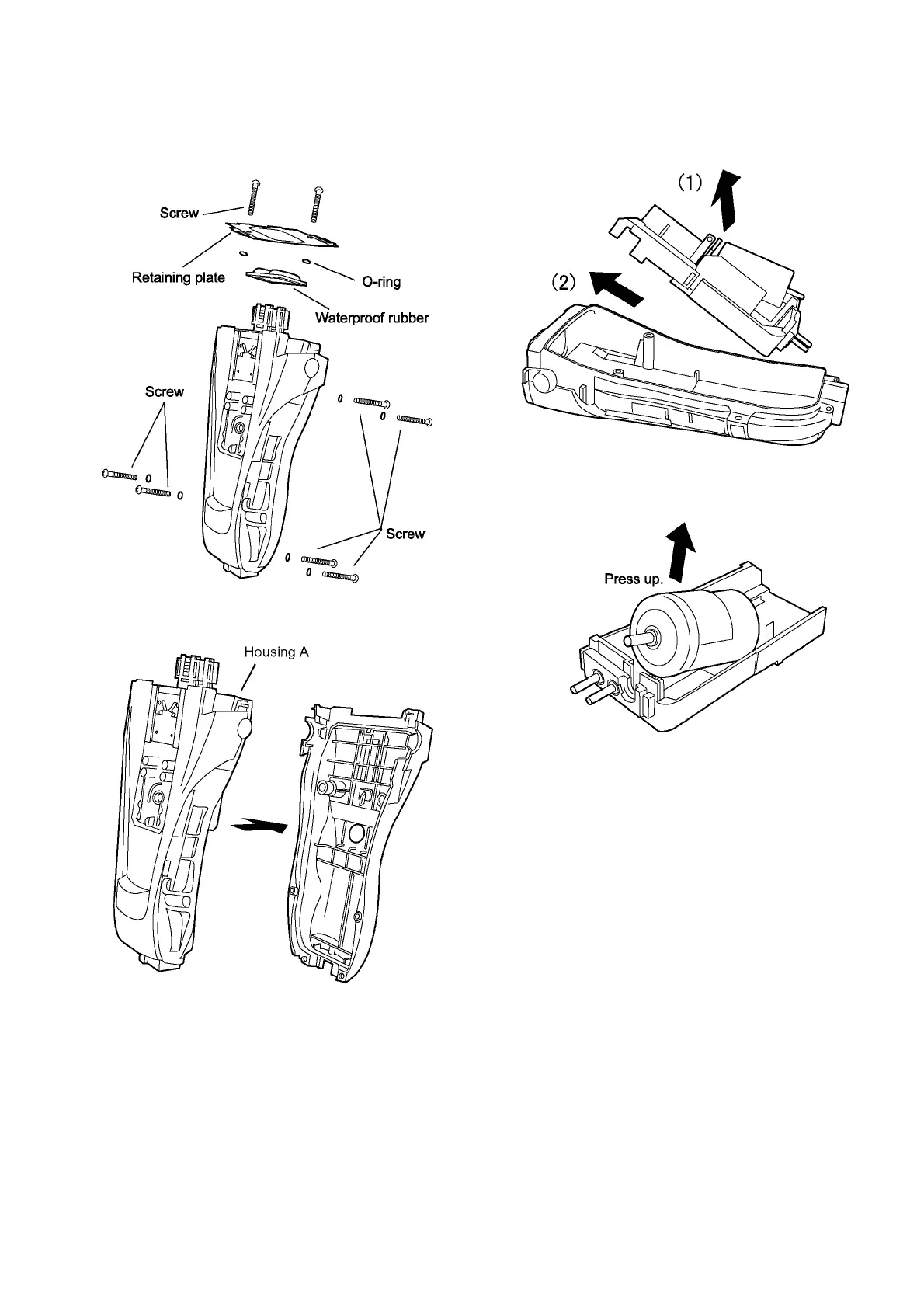

6. Loosen two screws. Take out the retaining plate and
waterproof rubber with care of breakage. Loosen six
screws.
NOTE:
Do not lose the screw O-rings.
7. Separate the housing B from housing A.
8. Take out the motor and the battery & module assembly
gently from housing A.
NOTE:
Do not lose the washer and O-ring.
9. Take out the battery from the chassis.
To Next Page
